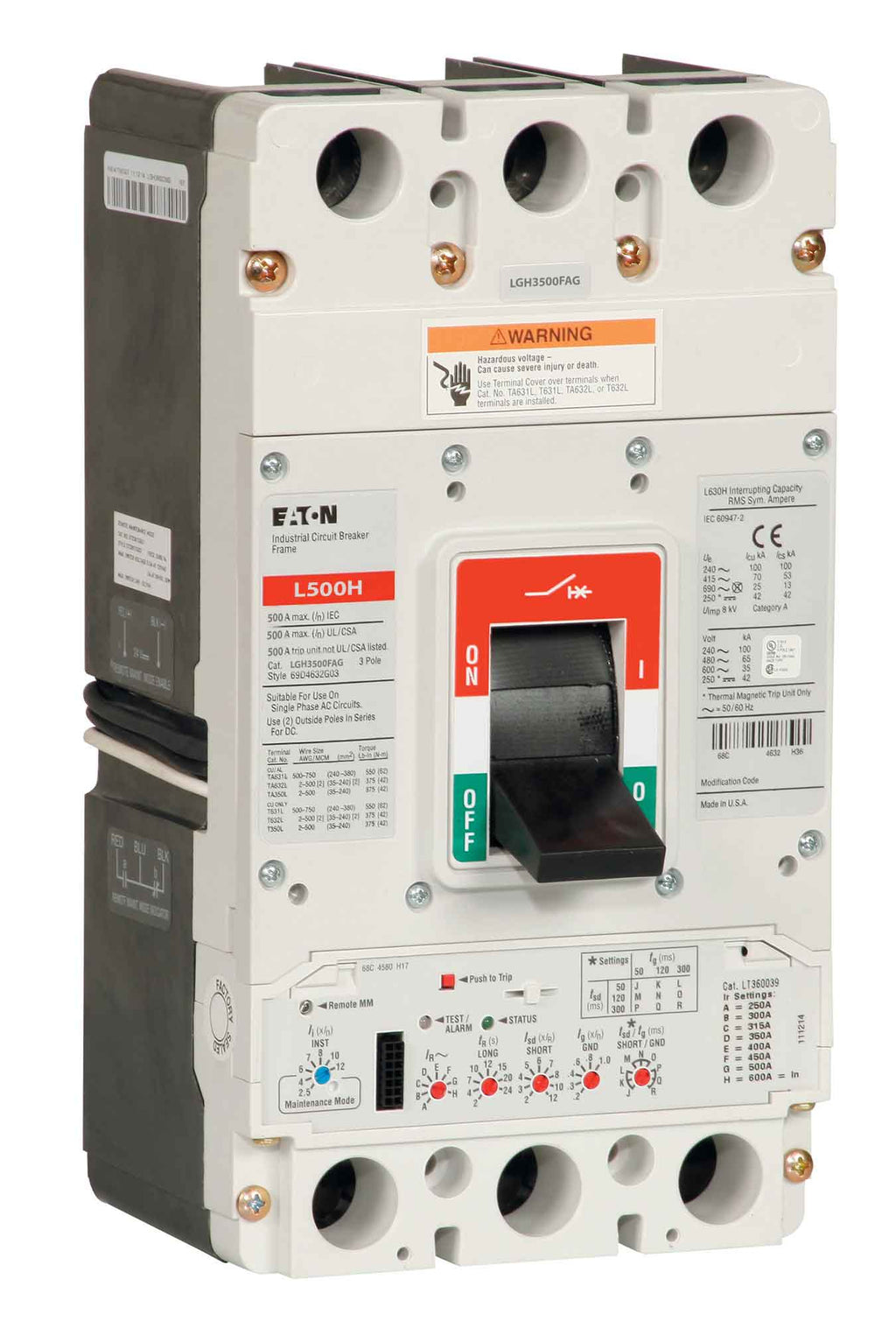

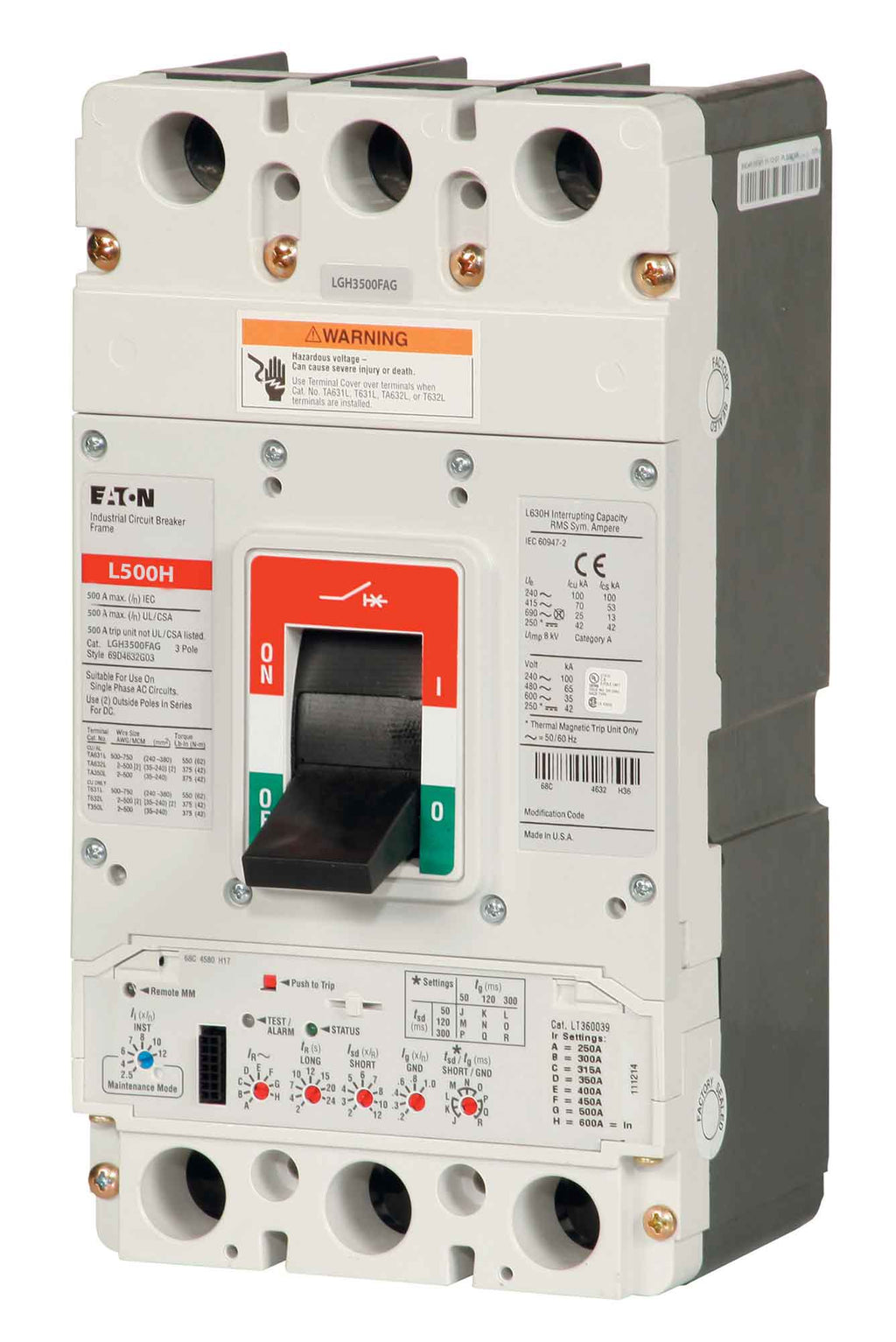

LGH3500FAG - Cutler Hammer 500A 600V 3-Pole Series G Molded Case Circuit Breaker

LGH3500FAG

LGH3500FAG is a Cutler Hammer Series G molded case circuit breaker designed for industrial applications requiring reliable protection.This 3-pole circuit breaker features a 500 ampere rating and supports voltages up to 600 VAC. It includes a fixed thermal, adjustable magnetic trip unit and is rated for interrupting capacities up to 100 kAIC at 240 VAC. The breaker is panel mount with line and load terminals and complies with UL, CSA, and CE certifications.

Key Specifications
• Amperage: 500 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Interrupting Rating: 100 kAIC at 240 VAC, 65 kAIC at 480 VAC, 35 kAIC at 600 VAC
• Trip Unit: Fixed Thermal, Adjustable Magnetic
• Mounting Type: Panel Mount
• Frame: LG Series G
• Terminals: Line and Load
• Certifications: UL Listed, CSA Certified, CE Marked
• Dimensions: 5.48 in W x 4.09 in D x 10.13 in H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LGH3500FAG
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : LGH
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Line/Load Lug
• Frame Size : 400A/LG
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 500 MCM Max. Wire Size 750 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 782116142774
• GTIN : 00782116142774
• Country of Origin : United States
• Dimensions : 5.48 in x 5.48 in x 5.48 in (Length/Depth x Height x Width)
• Weight : 16
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
