Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LGB3K125B

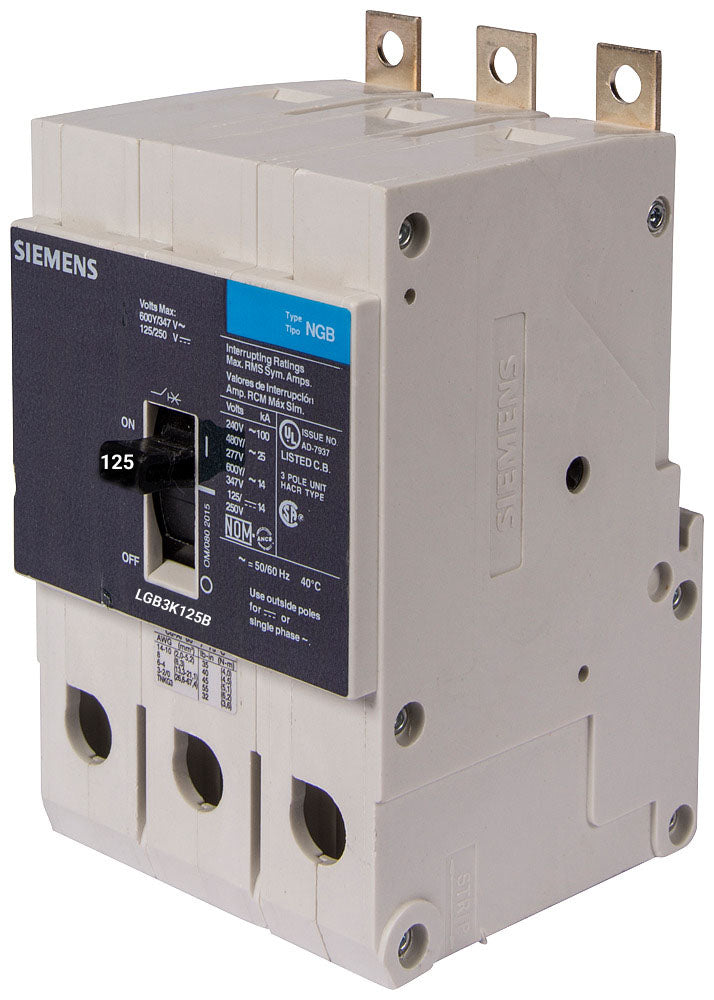

LGB3K125B is a Siemens 3-pole molded case circuit breaker rated for 125 amps and 600VAC, designed for reliable circuit protection.LGB3K125B features a thermal magnetic trip unit and belongs to the GB2 series frame. It supports a maximum voltage of 600Y/347V AC with an interrupt rating of up to 65kA at 480V, ensuring high breaking capacity. The breaker is UL489 listed and designed for bolt-on mounting with load side lugs only.
- Amperage: 125A
- Voltage Rating: 600VAC (600Y/347V AC)
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V, 25kA at 600V
- Series/Frame: GB2
- Trip Unit: Thermal Magnetic
- Certifications: UL489 Listed
- Load Side Lugs Only
- Weight: Approximately 1.36 kg
Specifications
- Part Number: LGB3K125B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : GB2 Series
- Type : GB2
- Voltage : 600
- Amperage : 125
- Phase : 2
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : GB2 Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 804766340468
- GTIN : 00804766340468
- Country of Origin : Mexico
- Dimensions : 2.87 x 2.961 x 4.988 inch
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
- Wire Size : 8 to 1/0 AWS, Cu/Al
