Description
LGB3K020B

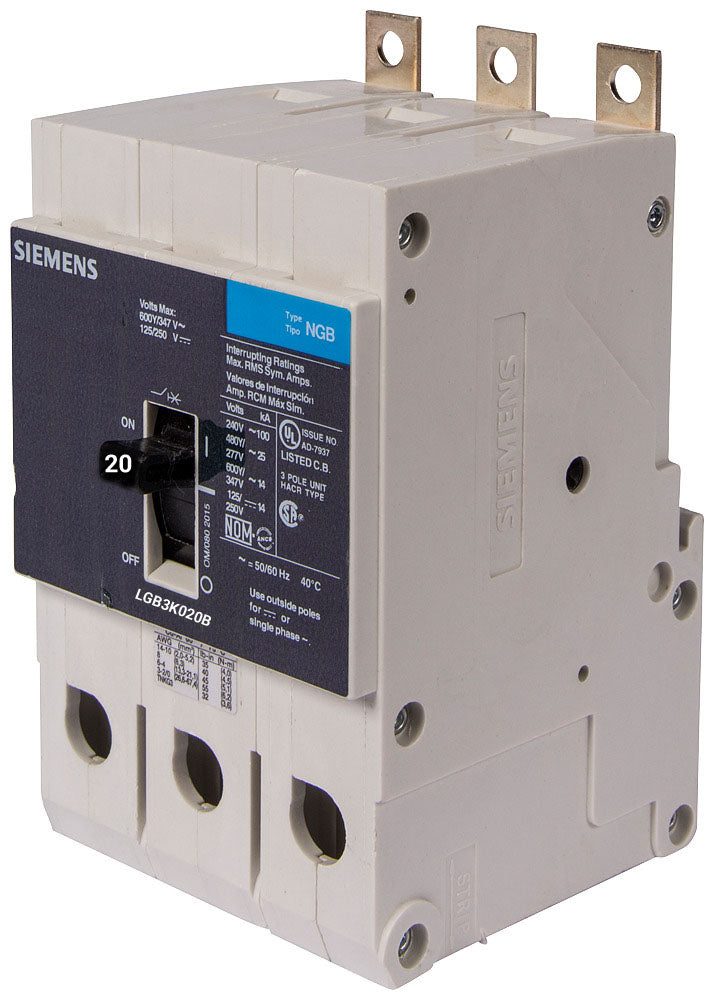

LGB3K020B is a Siemens 3-pole molded case circuit breaker rated for 20 amps and 600 volts, part of the GB2 Series. LGB3K020B features a thermal-magnetic trip unit and is UL listed with a high interrupt rating suitable for panelboard mounting.
- Key Specifications
- Amperage: 20A
- Voltage Rating: 600Y/347V AC
- Poles: 3
- Interrupt Rating: 65kA at 480V, 14kA at 600Y/347V
- Series/Frame: GB2 Series (LGB Frame)
- Trip Unit: Thermal-Magnetic
- Mounting Type: Panelboard Mount
- Certifications: UL Listed (UL489)
- Mounting Style: Bolt-On
- Part Number: LGB3K020B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : GB2 Series
- Type : GB2
- Voltage : 600
- Amperage : 20
- Phase : 2
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : GB2 Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
- UPC : 804766340338
- GTIN : 00804766340338
- Country of Origin : Mexico
- Dimensions : 2.87 x 2.961 x 4.988 inch
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
- Wire Size : 14 to 10 AWS, Cu/Al
