Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LGB3K100B

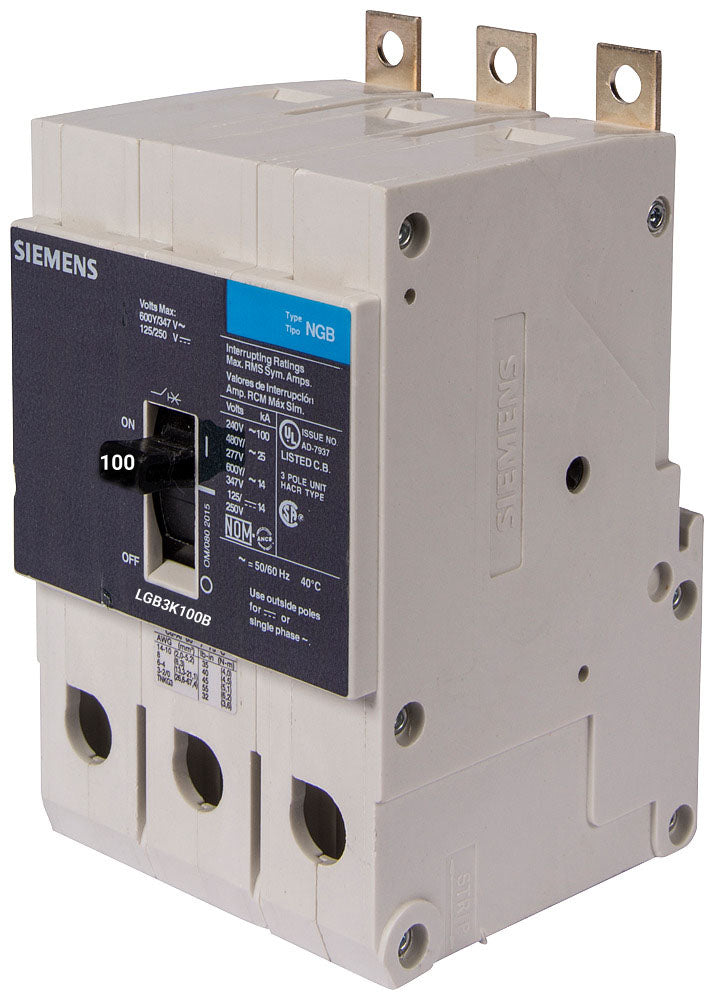

LGB3K100B - Siemens 3-pole molded case circuit breaker with thermal-magnetic trip, rated at 100A and 600V.
This UL 489 listed LGB2 frame circuit breaker provides very high breaking capacity, including 65kA at 480V and 25-65kA interrupt rating. It features bolt-on connection and mounts on panelboard load side for reliable low voltage protection in industrial applications.
Key Specifications
- Manufacturer: Siemens
- Part Number: LGB3K100B
- Amperage: 100A
- Voltage: 600Y/347V AC
- Poles: 3
- Frame/Series: LGB2 / GB2
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 65kA at 480V
- Interrupt Rating: 25 to 65kA
- Mounting: Bolt-On, Panelboard Load Side
- Certification: UL 489
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LGB3K100B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : GB2 Series
- Type : GB2
- Voltage : 600
- Amperage : 100
- Phase : 2
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : GB2 Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 804766340444
- GTIN : 00804766340444
- Country of Origin : Mexico
- Dimensions : 2.87 x 2.961 x 4.988 inch
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
- Wire Size : 8 to 1/0 AWS, Cu/Al
