2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

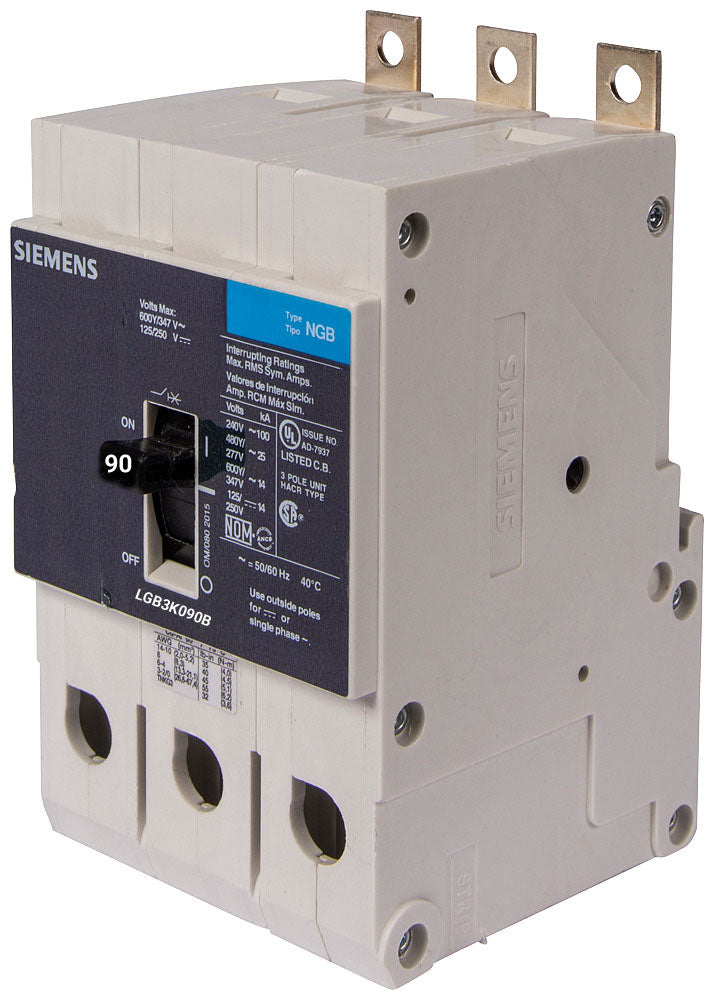

LGB3K090B
LGB3K090B is a Siemens 3 pole, 90 amp, 600 Volt bolt-on circuit breaker from the GB2 Series with a 65kA interrupt rating at 480V.This molded case circuit breaker is designed for reliable protection in residential, commercial, and industrial applications. It features a bolt-on mounting type, UL489 certification, and is rated for 600Y/347V AC maximum voltage. The breaker provides high interrupt capacity with a 65kA rating at 480V, ensuring safe interruption of fault currents.
- Manufacturer: Siemens
- Part Number: LGB3K090B
- Amperage: 90A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V
- Series/Frame: GB2 Series
- Certification: UL489
- Trip Unit: Thermal-Magnetic
- Application: Residential, Commercial, Industrial
Specifications
- Part Number: LGB3K090B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : GB2 Series
- Type : GB2
- Voltage : 600
- Amperage : 90
- Phase : 2
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : GB2 Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 804766340437
- GTIN : 00804766340437
- Country of Origin : Mexico
- Dimensions : 2.87 x 2.961 x 4.988 inch
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
- Wire Size : 8 to 1/0 AWS, Cu/Al
