Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

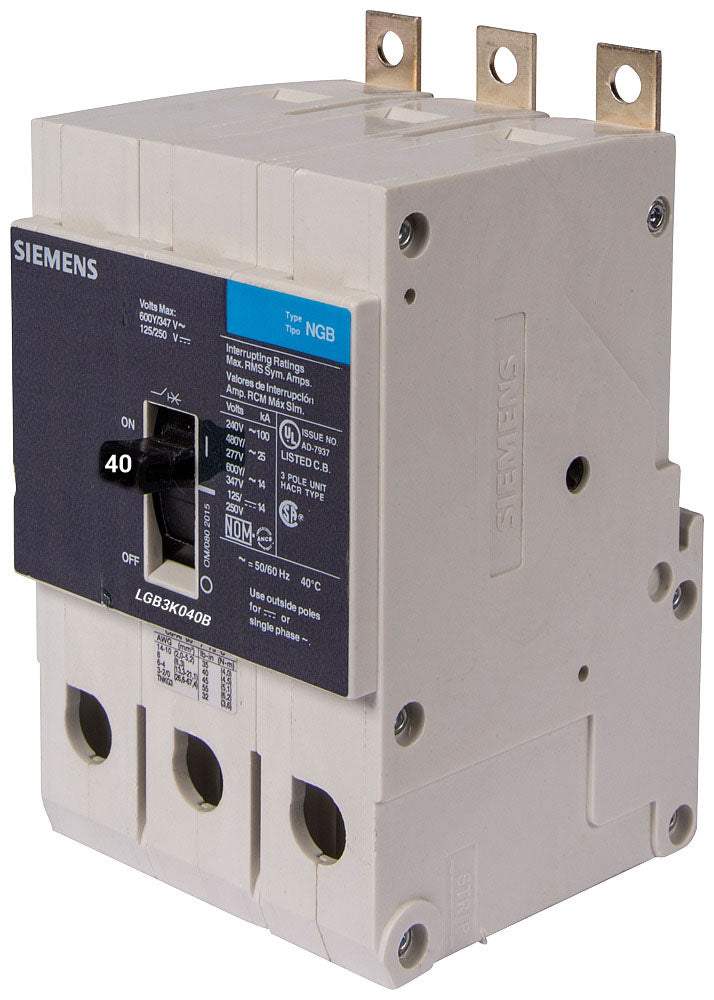

LGB3K040B
LGB3K040B is a Siemens 3 pole molded case circuit breaker rated for 40 amps and 600 volts AC, designed for bolt-on panelboard mounting.This circuit breaker belongs to the GB2 series frame and features a thermal magnetic trip unit. It offers a high interrupt rating of 65kA at 480V and 14kA at 600Y/347V, meeting UL489 certification standards. The breaker includes load side lugs and is suitable for industrial and commercial power distribution applications.
- Amperage: 40 Amps
- Voltage Rating: 600Y/347V AC (max 600V)
- Poles: 3 Pole
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V, 14kA at 600Y/347V
- Series/Frame: GB2 Frame
- Trip Unit: Thermal Magnetic
- Certifications: UL489 Listed
- Load Side Lugs Included
- Application: Panelboard Circuit Protection
Specifications
- Part Number: LGB3K040B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : GB2 Series
- Type : GB2
- Voltage : 600
- Amperage : 40
- Phase : 2
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : GB2 Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 804766340376
- GTIN : 00804766340376
- Country of Origin : Mexico
- Dimensions : 2.87 x 2.961 x 4.988 inch
- Weight : 2.756
- Certification : UL, CSA, IEC, NOM
- Wire Size : 8 to 1/0 AWS, Cu/Al
