LDB2600W - Eaton 600A 600VAC 2-Pole Series C L-Frame Molded Case Circuit Breaker Fixed Thermal Magnetic Trip

LDB2600W

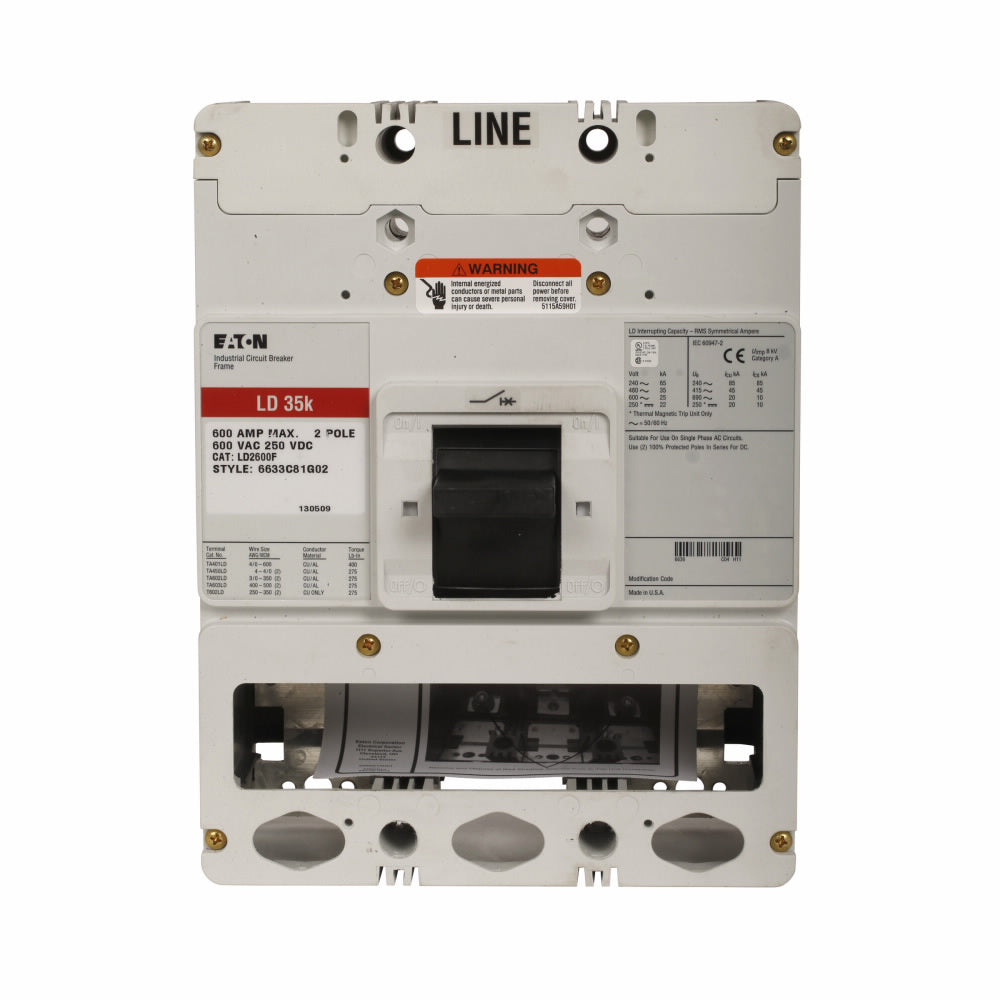

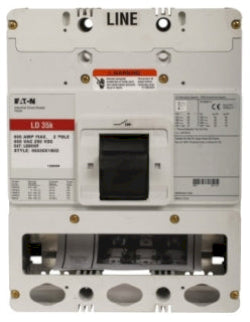

LDB2600W is a Eaton Series C complete molded case circuit breaker designed for reliable protection in electrical distribution systems.

This 2-pole circuit breaker features a 600 ampere rating and is rated for 600 VAC and 250 VDC operation. It has a fixed thermal and fixed magnetic trip unit providing dependable overcurrent protection. The breaker is part of Eaton's L-Frame Series C line and offers interrupt ratings of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC. It is a complete breaker without terminals and is UL 489 certified.

• Amperage Rating: 600 A
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 2
• Interrupt Rating: 65 kAIC at 240 VAC, 35 kAIC at 480 VAC
• Frame: L-Frame
• Series: Series C
• Trip Type: Fixed thermal, fixed magnetic
• Mounting Type: Complete molded case breaker
• Certifications: UL 489
• Frequency Rating: 50 to 60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: LDB2600W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : LDB
• Voltage : 600
• Amperage : 600
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679148372
• GTIN : 00786679148372
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 18
• Certification : UL 489
