Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LD62F600

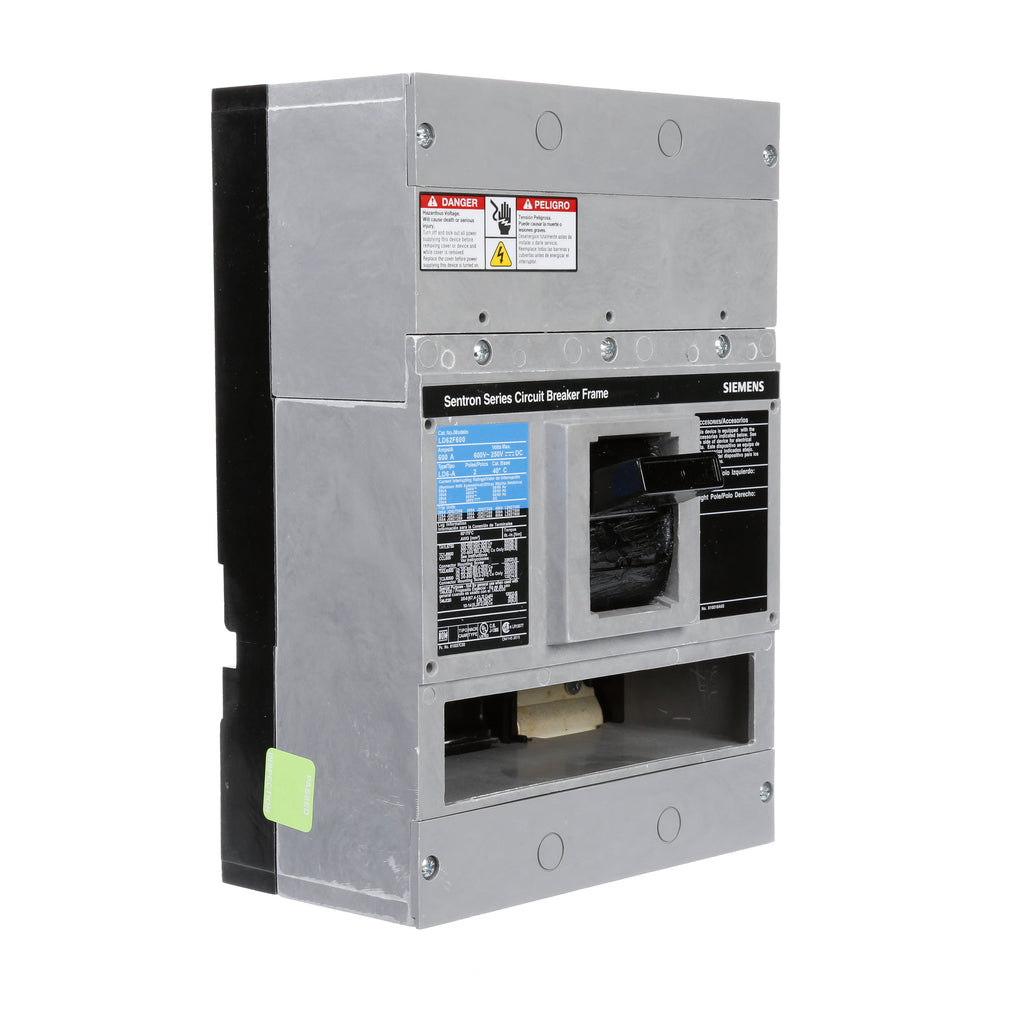

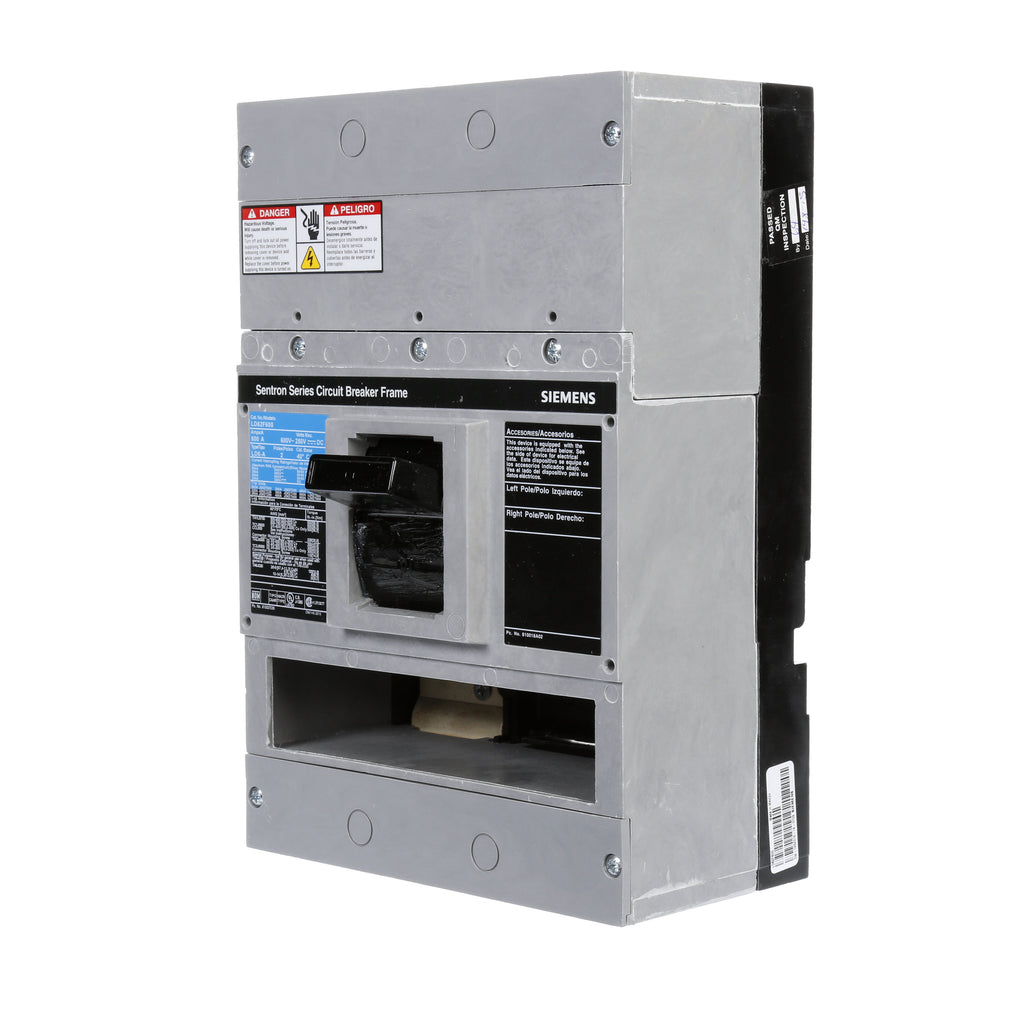

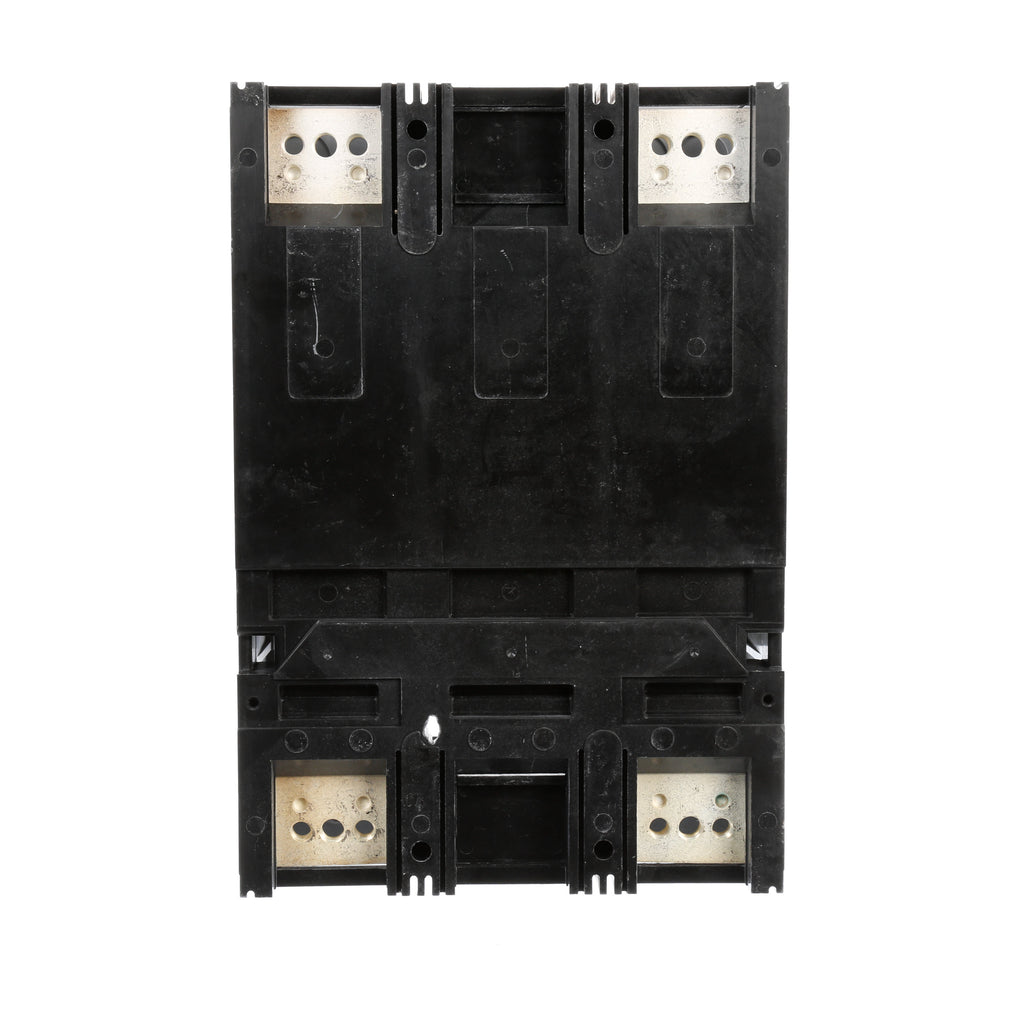

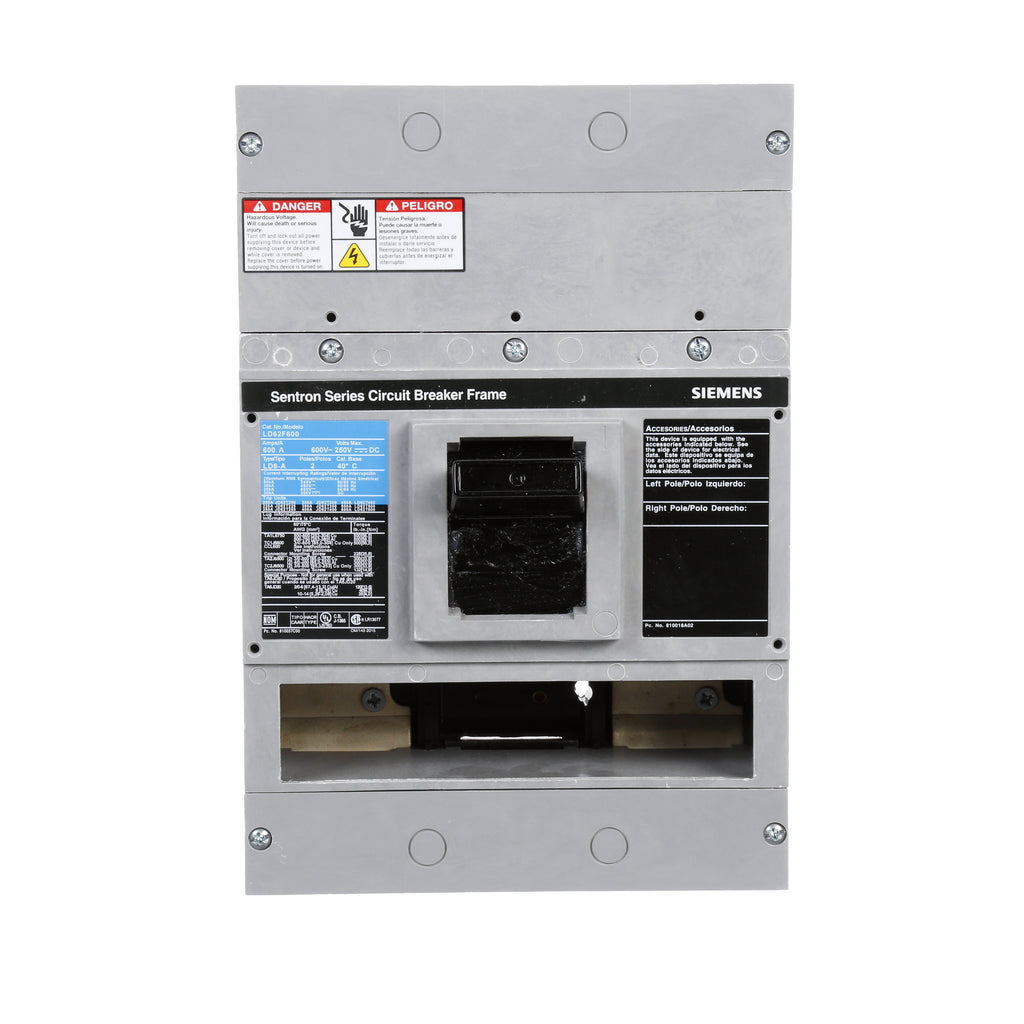

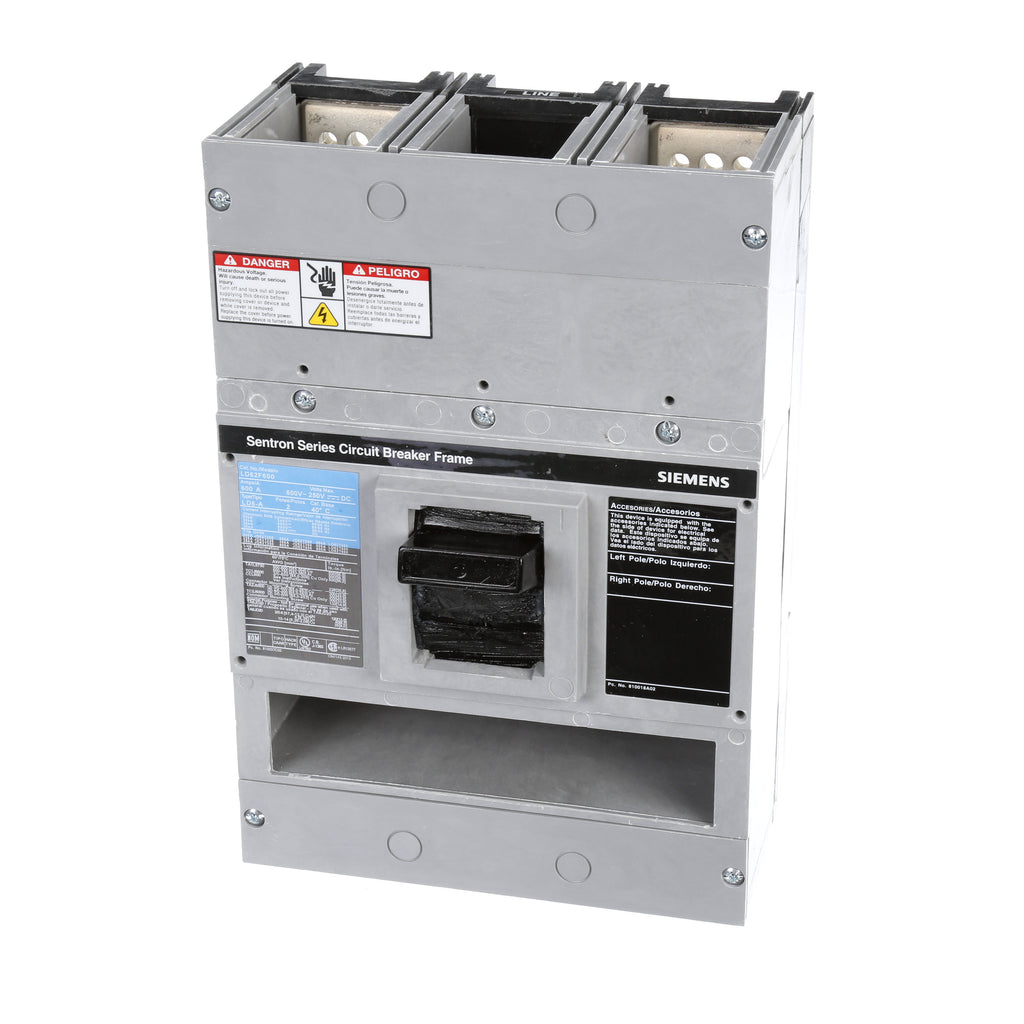

LD62F600 is a Siemens 2-pole molded case circuit breaker frame designed for 600A and 600V AC applications.This breaker frame is part of the Siemens LD6 series, supporting a 600 ampere rating and 600 volt maximum voltage. It features a 25kA interrupt rating at 600V and 35kA at 480V, with interchangeable trip units and thermal magnetic trip functions. The breaker includes line and load side lug terminals and supports bolt-on mounting. It is designed for single-phase systems and offers long time and instantaneous trip protection.
- Manufacturer: Siemens
- Part Number: LD62F600
- Amperage: 600A
- Voltage: 600V AC
- Poles: 2
- Interrupt Rating: 25kA at 600V, 35kA at 480V
- Frame Type: LD6
- Trip Unit: Interchangeable Thermal Magnetic
- Mounting Type: Bolt-On
- Line and Load Side Lugs
- Phase: Single Phase
- Certifications: UL Listed
Specifications
- Part Number: LD62F600
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : LD
- Voltage : 600
- Amperage : 600
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643213913
- GTIN : 00783643213913
- Country of Origin : Mexico
- Weight : 13.3
