Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
LD3500X

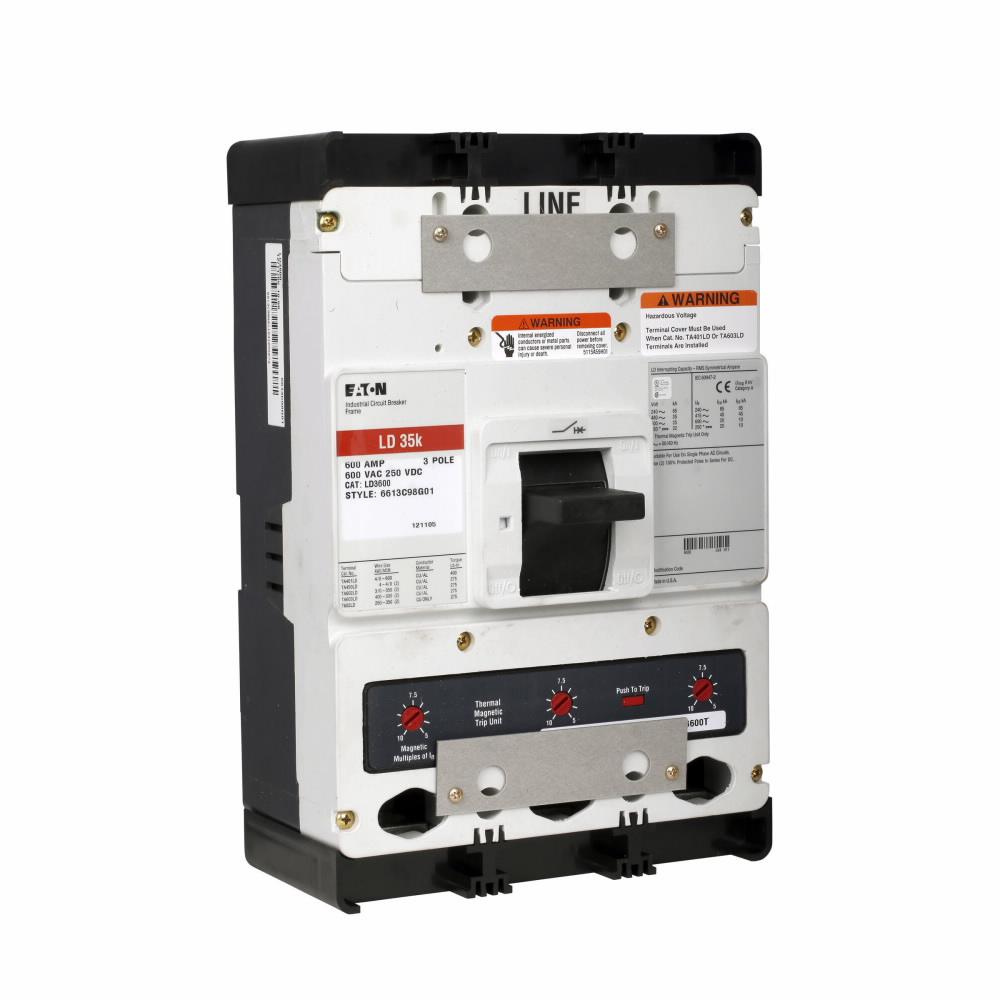

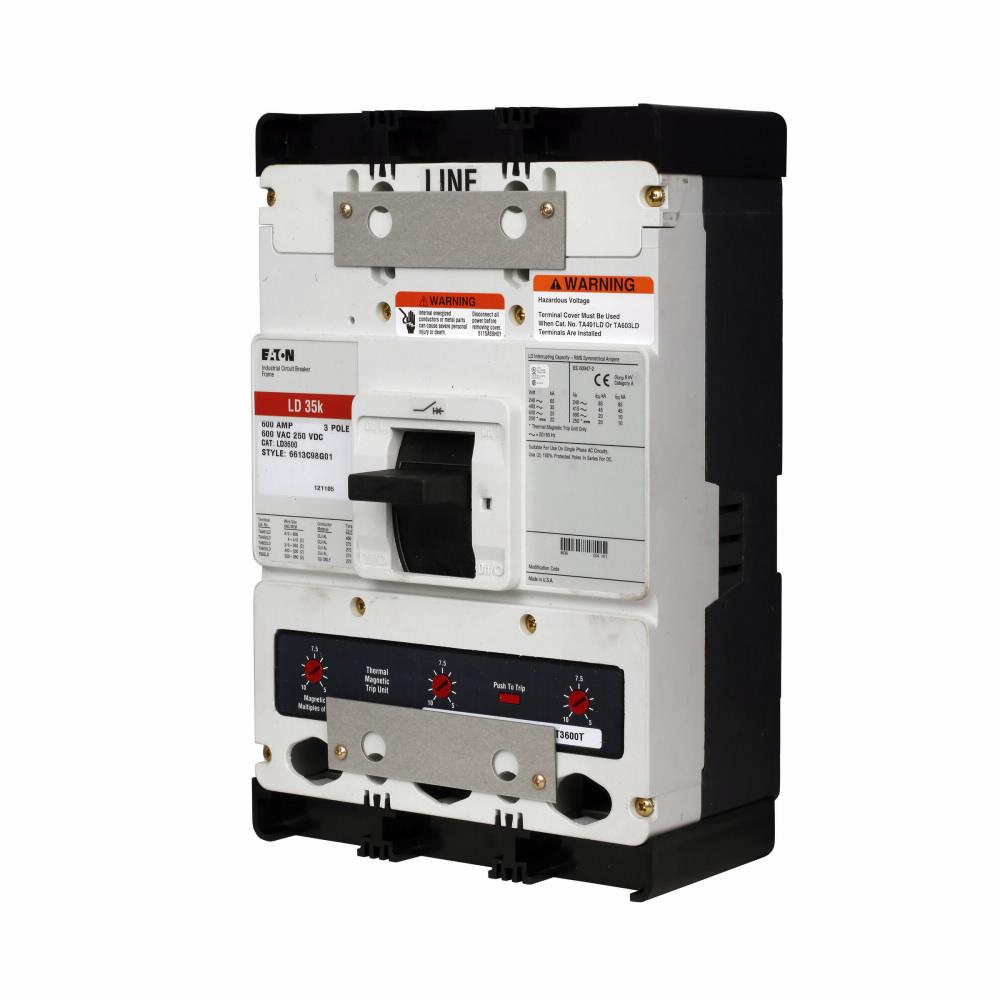

LD3500X is a 500 Amp, 600 Volt, 3-pole L-frame molded case circuit breaker from Eaton designed for reliable circuit protection.This Eaton LD3500X circuit breaker features a fixed thermal and fixed magnetic trip unit, suitable for both line and load applications. It is part of Eaton's L-frame Series C molded case breakers, offering high interrupting ratings of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac. The breaker is constructed with aluminum terminals and supports 50/60 Hz frequency, providing robust performance in demanding electrical environments.
- Key Specifications
- Amperage: 500 Amp
- Voltage Rating: 600 Vac, 250 Vdc
- Poles: Three-pole
- Frame Type: L-frame
- Series: Series C
- Trip Unit: Fixed thermal, fixed magnetic
- Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
- Terminal Material: Aluminum
- Frequency: 50/60 Hz
- Mounting Type: Complete breaker, line and load terminals
- Certifications: UL Listed
- Part Number: LD3500X
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : LD
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
- UPC : 786679013045
- GTIN : 00786679013045
- Weight : 20
