Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
LD3350X

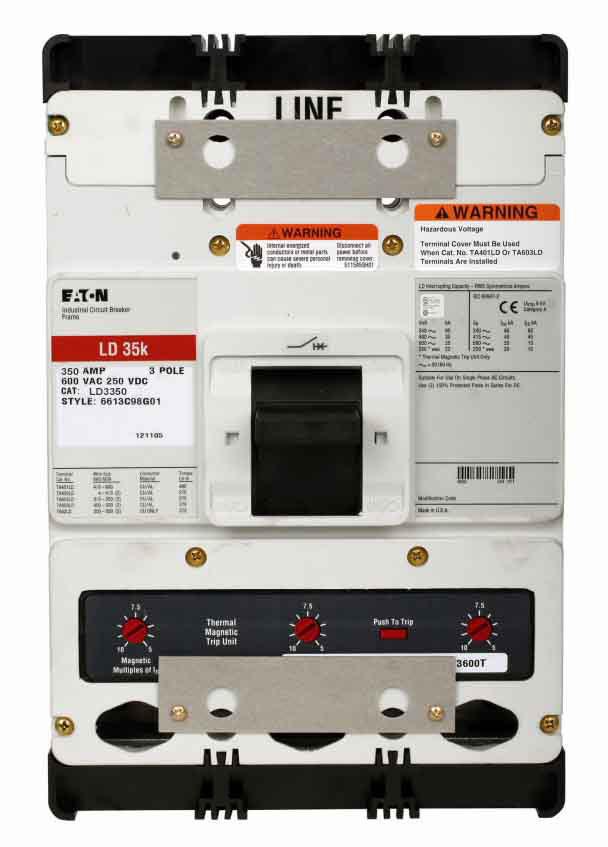

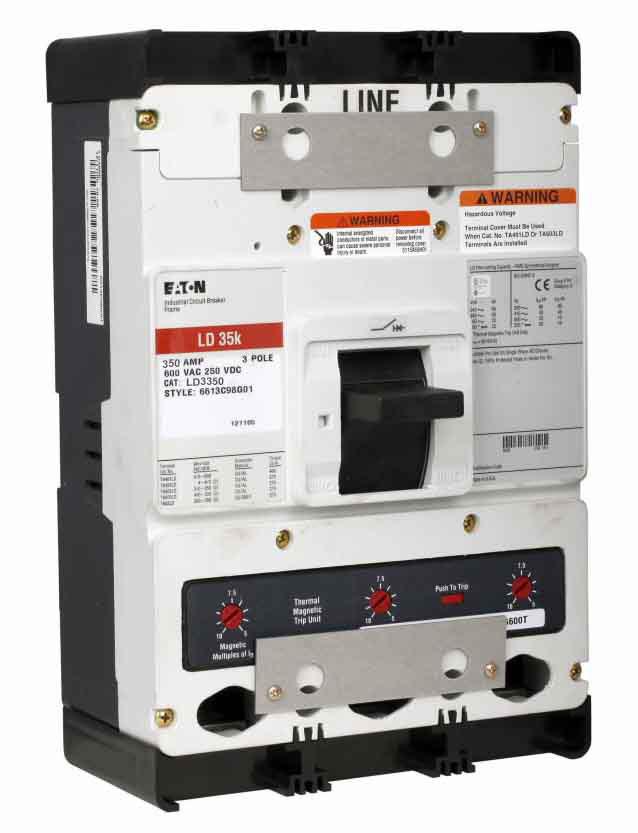

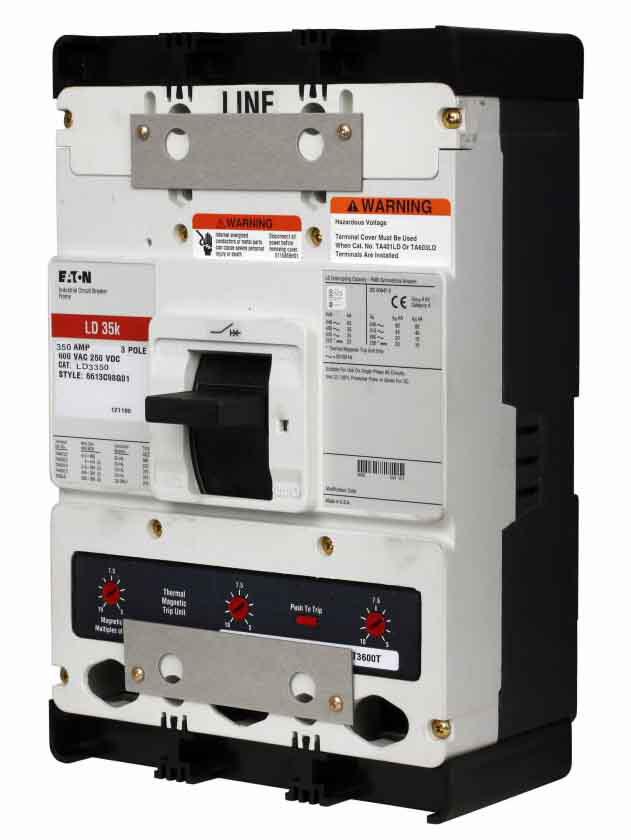

LD3350X is an Eaton Series C complete molded case circuit breaker designed for industrial power distribution and circuit protection applications. This L-frame breaker features fixed thermal and fixed magnetic trip units with superior arc suppression and reliable performance in demanding environments. The aluminum construction and patented contact design deliver high-speed blow-open action for consistent operation across standard 50/60 Hz power systems.
- Amperage Rating: 350 Amps
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: Three-Pole
- Frame Type: L-Frame (Series C)
- Trip Unit: Fixed Thermal, Fixed Magnetic
- Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
- Terminal Material: Aluminum
- Frequency Rating: 50/60 Hz
- Connection Type: Line and Load
- Circuit Breaker Type: Complete Breaker
Specifications
- Part Number: LD3350X
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : LD
- Voltage : 600
- Amperage : 350
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 20
