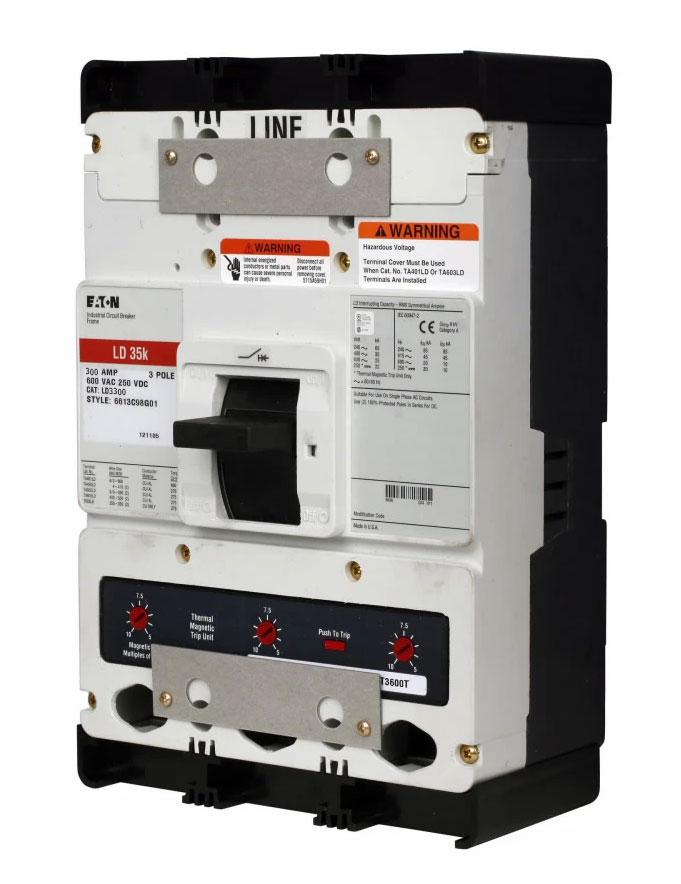

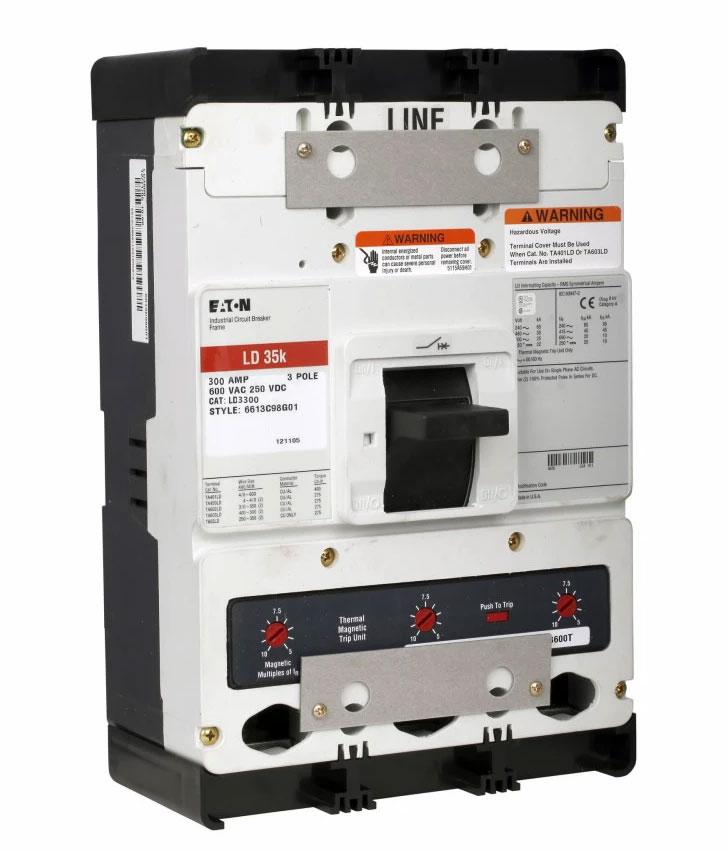

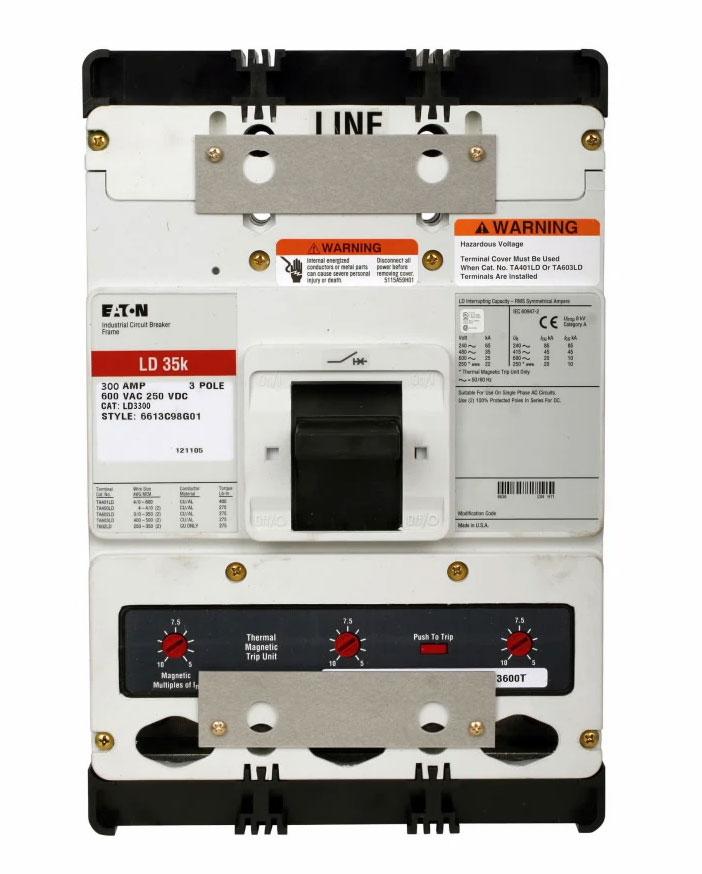

LD3300W - Eaton 300A 3-Pole 600V Molded Case Circuit Breaker Series C

LD3300W

LD3300W is a 300 amp, 3-pole molded case circuit breaker from Eaton's Series C product line designed for reliable circuit protection.This Eaton LD3300W breaker features a 600 VAC and 250 VDC voltage rating with a fixed thermal and fixed magnetic trip unit (T186 trip type). It provides a 35 kA interrupting capacity at 480V AC and is suitable for three-phase applications. The breaker is designed for fixed mounting and feed-thru connection.

• Amperage Rating: 300 A
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 3
• Interrupting Capacity: 35 kA at 480V AC
• Trip Unit Type: Fixed Thermal / Fixed Magnetic (T186)
• Series / Frame: Series C (LD Frame)
• Mounting Type: Fixed Mount
• Connection Type: Feed-Thru
• Phase: 3
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LD3300W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : LD
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 20
