Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
LD2600WK

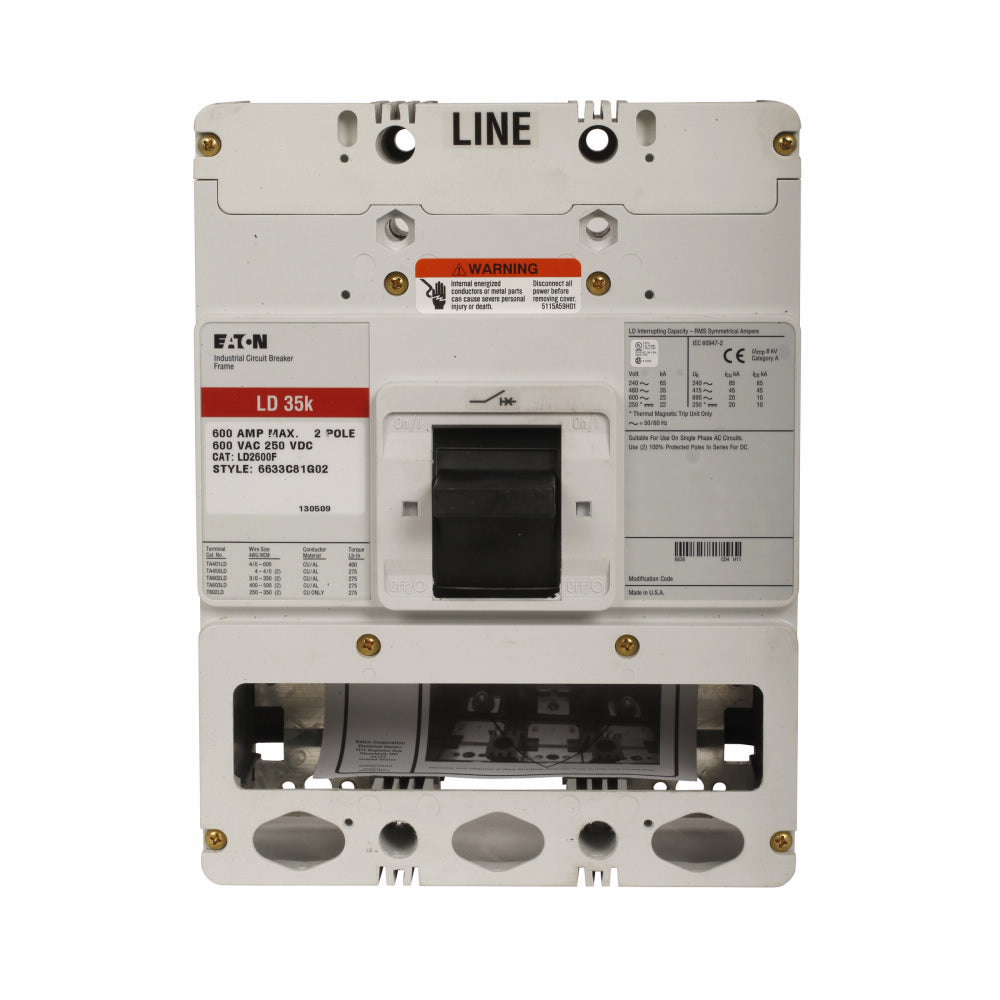

LD2600WK is a 2-pole, 600 amp, 600 volt molded case circuit breaker from Westinghouse Series C L Frame family.LD2600WK features fixed thermal and fixed magnetic trip units, designed for bolt-on mounting. It supports 600 VAC and 250 VDC operation with an interrupt rating of 35kA at 480 VAC and 65kA at 240 VAC. This breaker is UL 489 certified and built for reliable circuit protection.
- Key Specifications
- Amperage Rating: 600 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 35 kA at 480 VAC, 65 kA at 240 VAC
- Frame: L Frame
- Trip Unit: Fixed Thermal, Fixed Magnetic
- Series: Series C
- Certifications: UL 489
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: LD2600WK
- Manufacturer : Westinghouse
- Brand : Westinghouse
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : LD
- Voltage : 600
- Amperage : 600
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : NA - No Overcurrent Protection
- Protection : Non-Automatic
Product Data
- UPC : 78667956192
- GTIN : 00786679561928
- Country of Origin : United States
- Dimensions : 10.75 in x 8.25 in x 4.06 in (Length/Depth x Height x Width)
- Weight : 0.01
- Certification : UL 489
