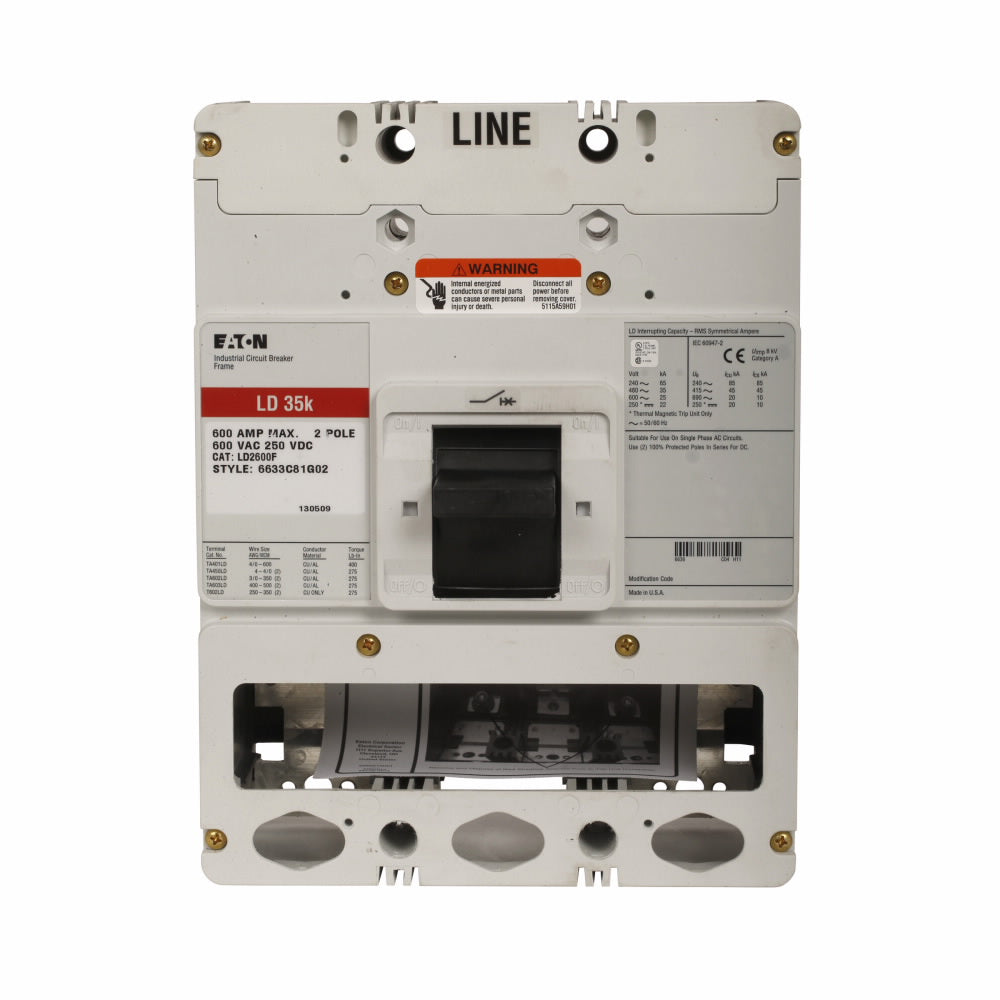

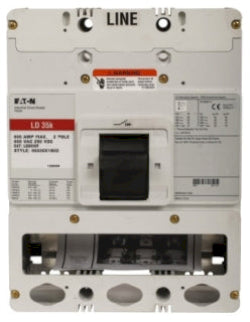

LD2600 - Eaton Series C L-Frame Molded Case Circuit Breaker 600A 600V 2-Pole Fixed Thermal Magnetic Trip

LD2600

LD2600 is a Series C L-frame molded case circuit breaker from Eaton, designed for reliable protection in commercial and industrial power distribution systems. This two-pole breaker features a 600A amperage rating, 600 Vac and 250 Vdc voltage rating, and a fixed thermal and fixed magnetic trip unit for dependable circuit protection. The LD2600 is built with an L-frame design and includes line and load terminals made of aluminum. It is rated for 35 kAIC at 480 Vac and 65 kAIC at 240 Vac, making it suitable for a variety of high-demand applications. The breaker operates at 50/60 Hz and is certified to UL 489 standards.

• Part Number: LD2600
• Manufacturer: Eaton
• Series: Series C
• Frame: L-Frame
• Amperage Rating: 600 A
• Voltage Rating: 600 Vac, 250 Vdc
• Number of Poles: 2
• Interrupt Rating: 35 kAIC at 480 Vac, 65 kAIC at 240 Vac
• Mounting Type: Line and Load
• Terminal Material: Aluminum
• Frequency Rating: 50/60 Hz
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LD2600
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : LD
• Voltage : 600
• Amperage : 600
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679029107
• GTIN : 00786679029107
• Country of Origin : United States
• Dimensions : 10.75 in x 8.25 in x 4.06 in (Length/Depth x Height x Width)
• Weight : 0.01
• Certification : UL 489
