Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
LD2500X

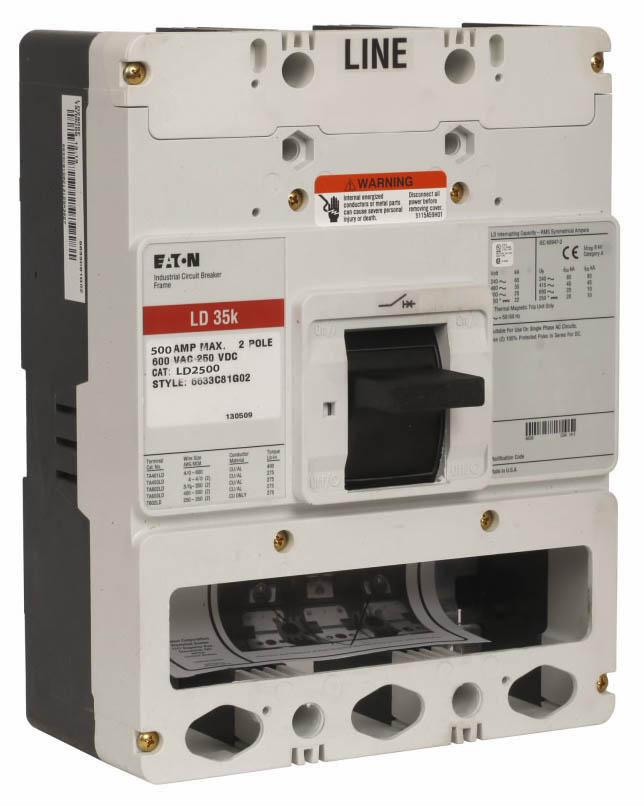

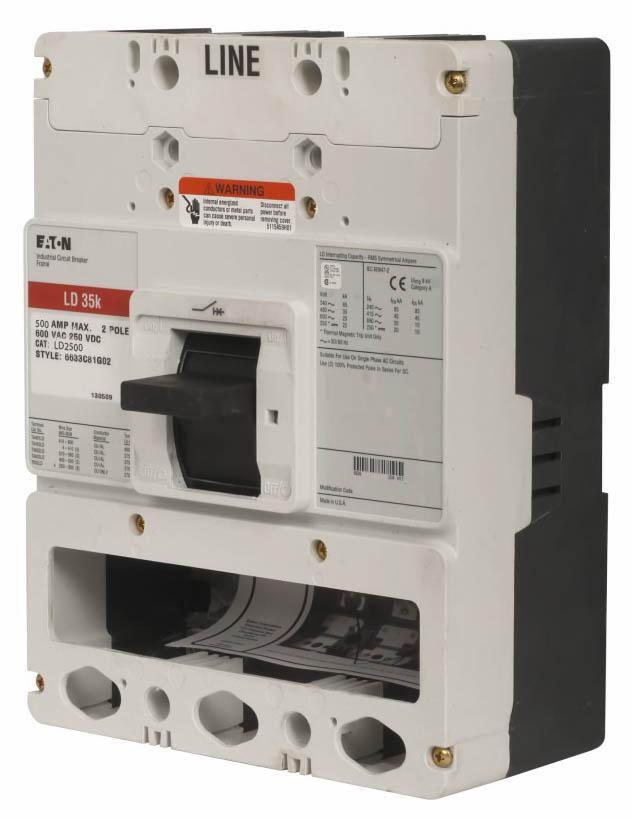

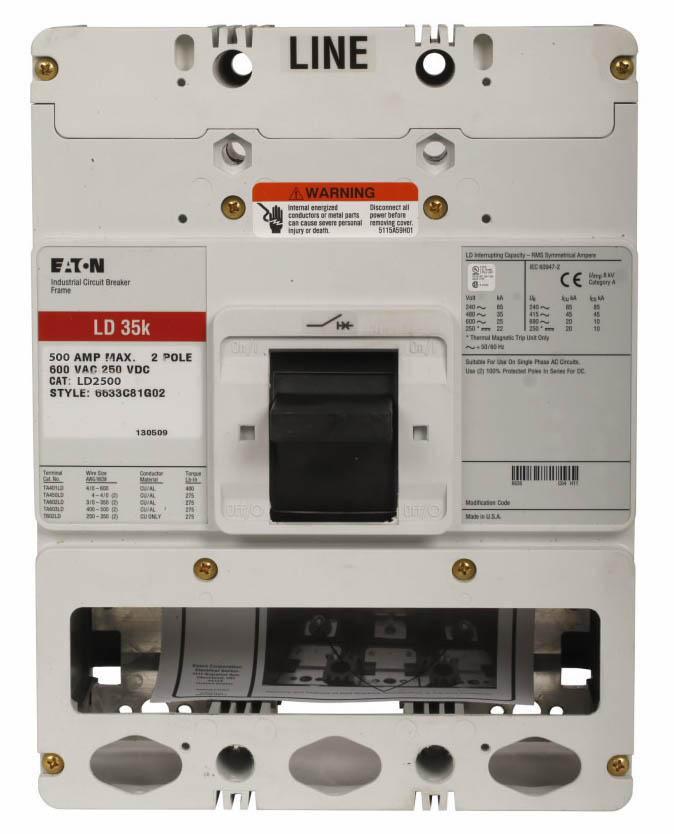

LD2500X is an Eaton Series C complete molded case circuit breaker designed for reliable power distribution in industrial and commercial applications. This two-pole breaker features fixed thermal and fixed magnetic trip units with a patented contact design that delivers high-speed blow-open action for superior performance and protection. The L-frame construction provides a compact footprint while maintaining robust electrical performance across standard 50/60 Hz power systems. Key Specifications
- Amperage Rating: 500 A
- Voltage Rating: 600 Vac, 250 Vdc
- Number of Poles: Two-pole
- Frame Type: L-frame
- Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
- Trip Type: Fixed thermal, fixed magnetic
- Terminal Configuration: Line and load
- Terminal Material: Aluminum
- Frequency Rating: 50 to 60 Hz
- Certification: UL 489
- Series: Series C
Specifications
- Part Number: LD2500X
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : LD
- Voltage : 600
- Amperage : 500
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 20
