2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LCL36300

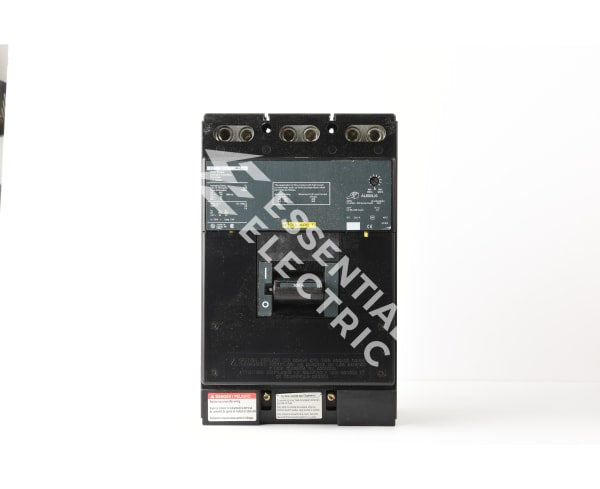

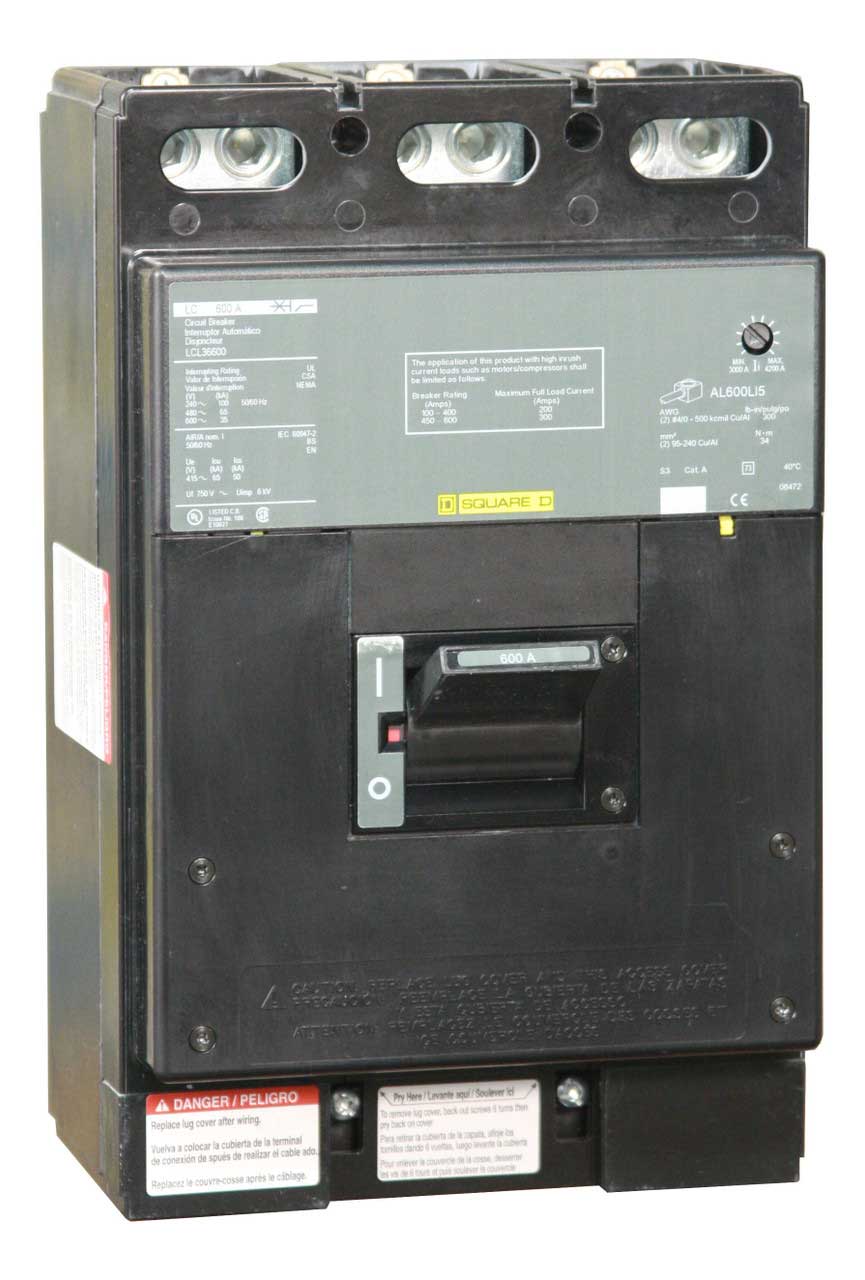

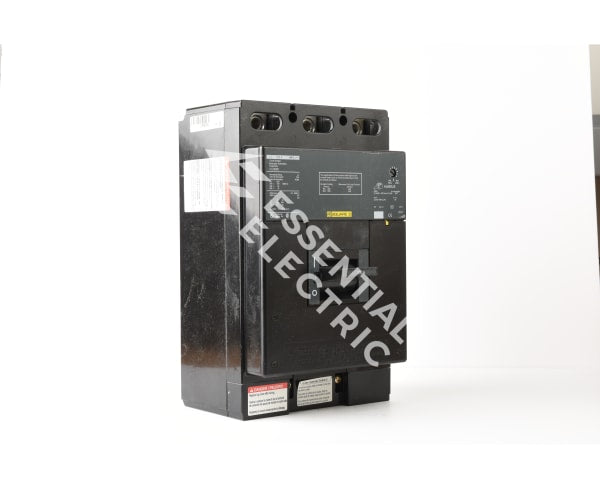

LCL36300 is a 3 pole, 300 amp, 600 volt thermal magnetic molded case circuit breaker by Square D designed for reliable circuit protection.This Square D LCL36300 circuit breaker features a bolt-on mounting type with line and load side lug terminals. It offers a high interrupting rating of 65kAIC at 480V and includes long-time and instantaneous trip functions for enhanced protection. The breaker is UL and CSA certified and belongs to the LCL series/frame.
- Key Specifications
- Manufacturer: Square D
- Part Number: LCL36300
- Amperage: 300A
- Voltage: 600VAC
- Poles: 3
- Interrupt Rating: 65kAIC at 480V
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions

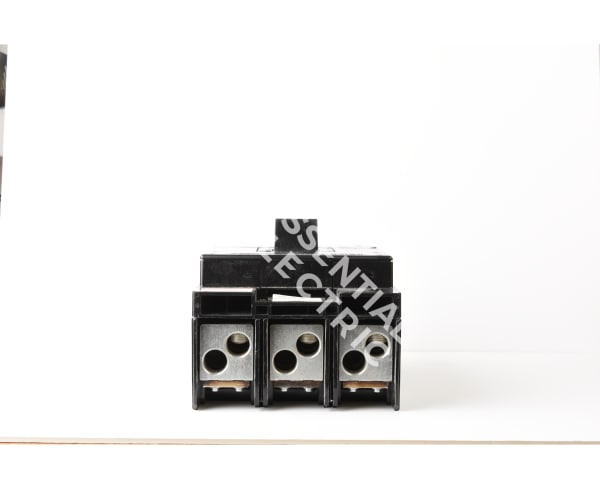

- Terminal Connection: Line and Load Side Lug
- Series/Frame: LCL
- Certifications: UL, CSA
Specifications
- Part Number: LCL36300
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LCL Series
- Type : LCL
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901334910
- GTIN : 00785901334910
- Country of Origin : Mexico
- Dimensions : Depth 14.84 in (377 mm) Width 12.60 in (320 mm) Height 36.22 in (920 mm)
- Weight : 27
