Product Info
- Manufacturer:Schneider Electric||Telemecanique
- Sub-Category:Motor Control Part And Accessory
Description
LC1D80B7

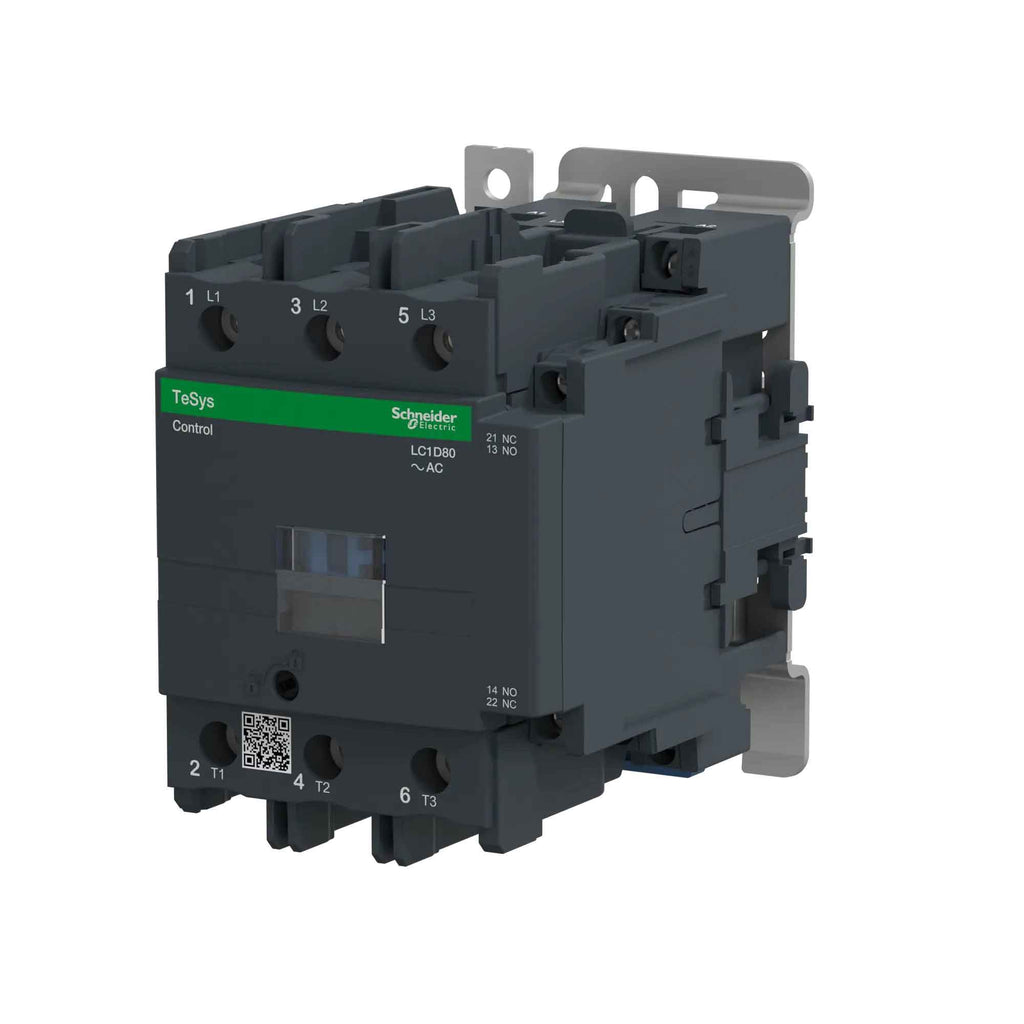

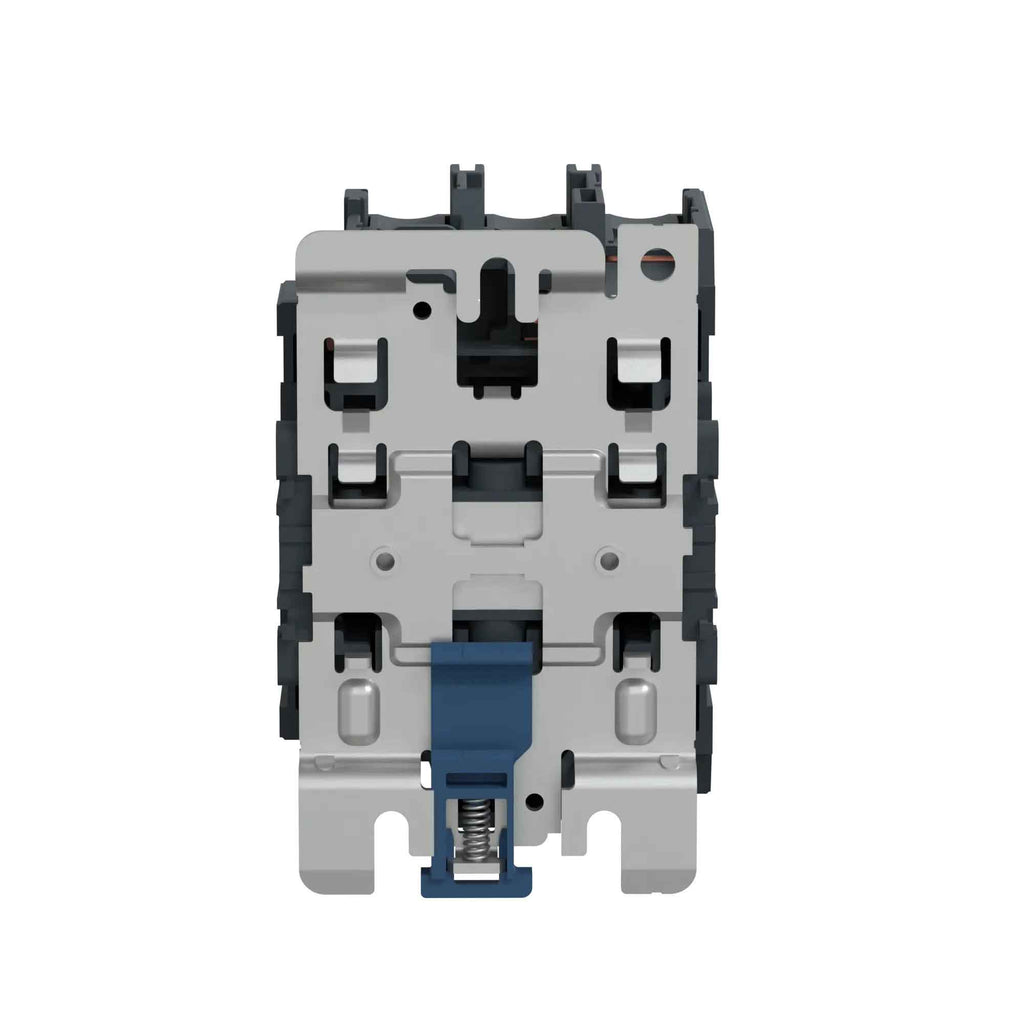

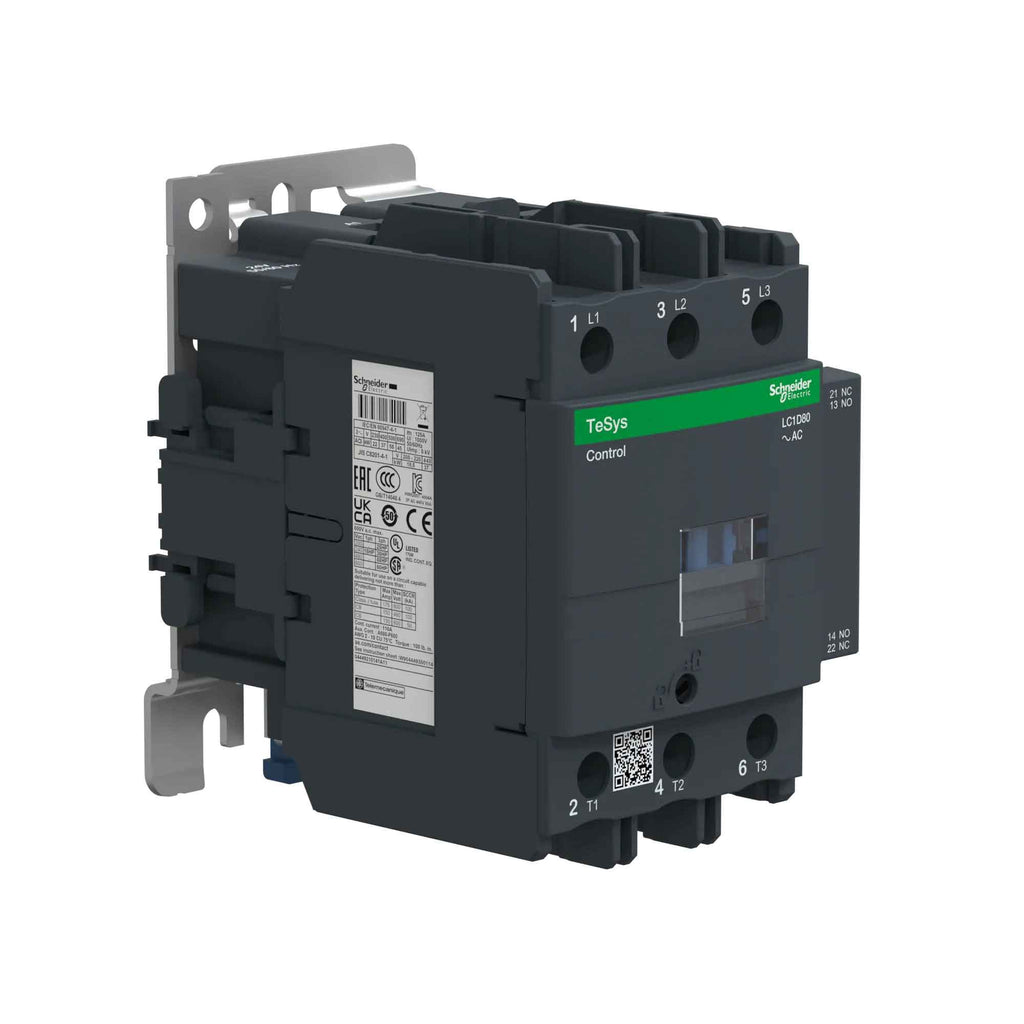

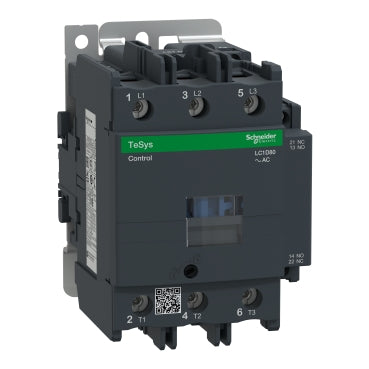

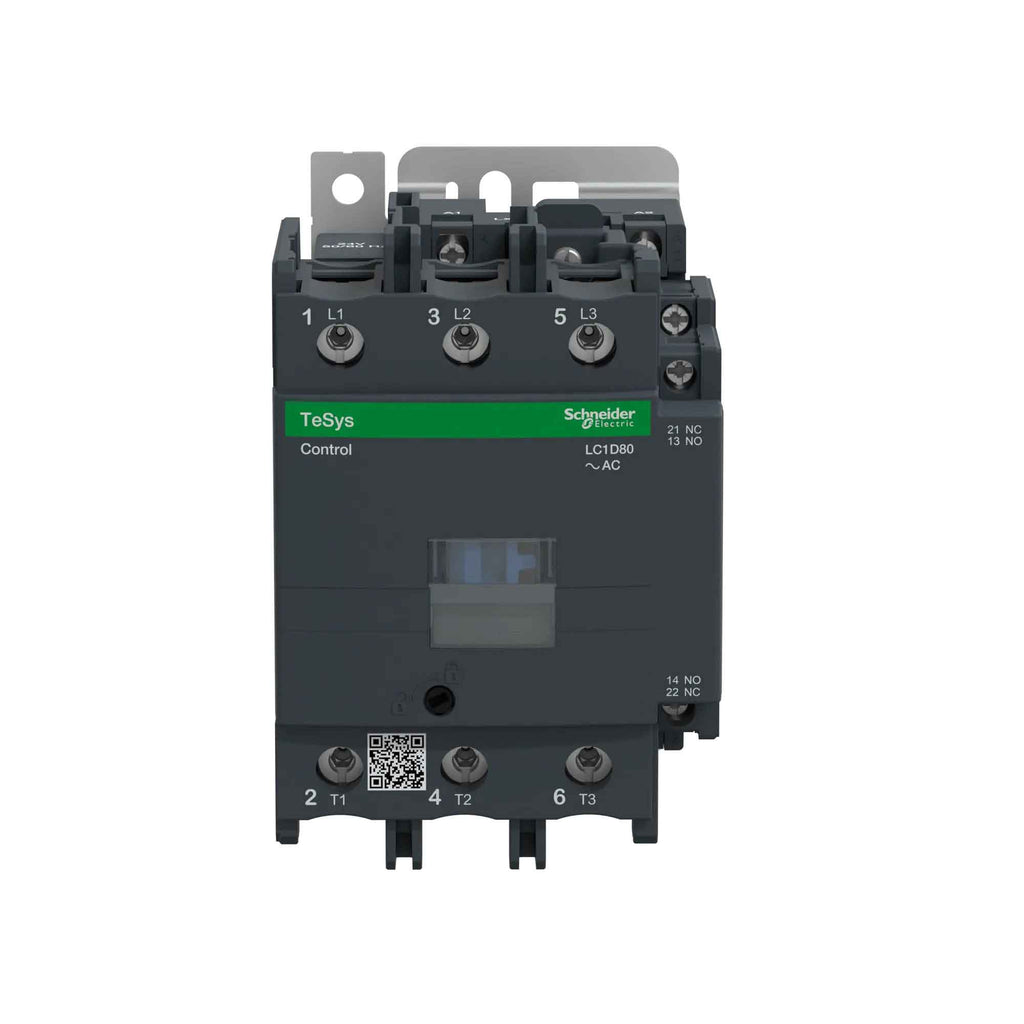

LC1D80B7 is a TeSys D series IEC contactor designed for reliable motor control and resistive load applications. This 3-pole contactor features a 24 VAC coil and is rated for 80 A at 440 VAC, making it ideal for industrial motor starters and control circuits. The unit is built with a compact design for easy installation and offers high durability with a long operating life. Engineered for motor control and resistive load applications, the LC1D80B7 contactor is rated for AC-3 and AC-1 utilization categories. It features screw clamp terminals for secure connections and is suitable for both rail and surface mounting. The contactor includes built-in auxiliary contacts (1NO-1NC) and is certified to IEC 60946 standards. Its robust construction ensures reliable performance in demanding environments.
- Part Number: LC1D80B7
- Manufacturer: Schneider Electric||Telemecanique
- Series: TeSys D
- Amperage: 80 A (AC-3), 125 A (AC-1)
- Voltage: 24 VAC coil, up to 690 VAC power circuit
- Poles: 3P (3NO)
- Mounting Type: Rail/Surface
- Interrupt Rating: Up to 100 kA SCCR
- Frame: D-Line
- (more...)
Additional Information
This TeSys D IEC Contactor includes a 24 VAC coil.
Specifications
- Part Number: LC1D80B7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- Horse Power : 7.5 hp at 120 V AC 50/60 Hz for 1 phase motors-15 hp at 230/240 V AC 50/60 Hz for 1 phase motors-30 hp at 200/208 V AC 50/60 Hz for 3 phases motors-30 hp at 230/240 V AC 50/60 Hz for 3 phases motors-60 hp at 460/480 V AC 50/60 Hz for 3 phases motors-60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 24
- Full Load Amps : Full Load Amps-Inductive 80A Full Load Amps-Resistive 125A
- Coil Voltage Minimum : 24
- Frequency : 50/60 Hz
Product Data
- UPC : 038911044003
- GTIN : 03389110440034
- Country of Origin : Czechia
- Dimensions : 3.34 in x 5 in
- Weight : 3.408
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
