Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1D410M7C

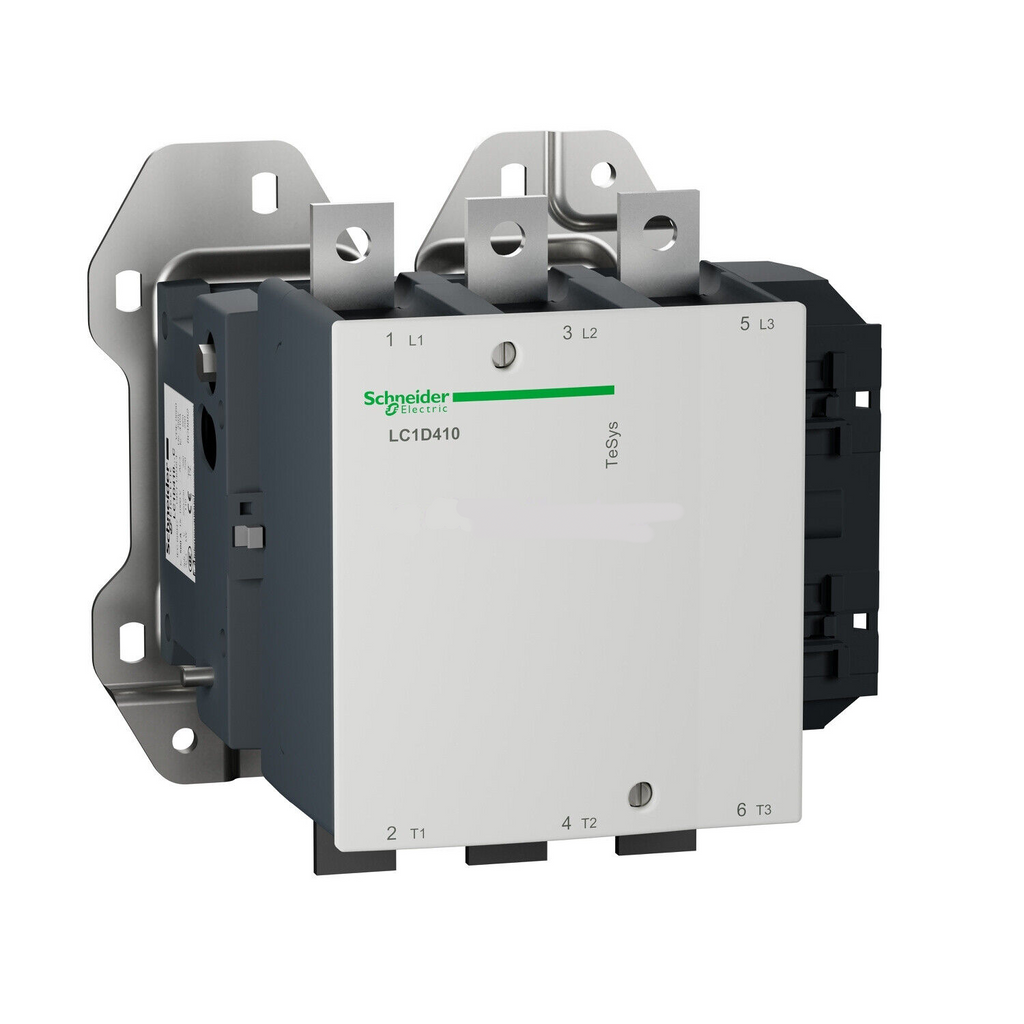

LC1D410M7C is a Schneider Electric TeSys D contactor designed for three-phase motor control applications with a rated current of 410A at 1000V and a 220V control coil. This industrial-grade contactor features three poles with three normally open (3NO) contacts, making it suitable for reversing and standard motor starter configurations. The unit operates at 50/60 Hz and is engineered for reliable performance in demanding industrial environments with electrical life ratings of 0.5 Mcycles at 500A AC-1 and 0.9 Mcycles at 370A AC-3.
- Rated Current: 410A
- Voltage Rating: 1000V
- Poles: 3 Pole
- Contact Configuration: 3NO (3 Normally Open)
- Control Coil Voltage: 220V AC
- Frequency: 50/60 Hz
- Series: TeSys D
- Operating Frequency: 2400 cycles/h at less than 55 degrees Celsius
- Action Time: 100-170 ms open, 40-75 ms close
- Power Consumption: 1075 VA at 50/60 Hz
- Heat Dissipation: 14W
Specifications
- Part Number: LC1D410M7C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 410
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 220
- Coil Voltage Minimum : 220
Product Data
- Weight : 22
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
