Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1D38M7C

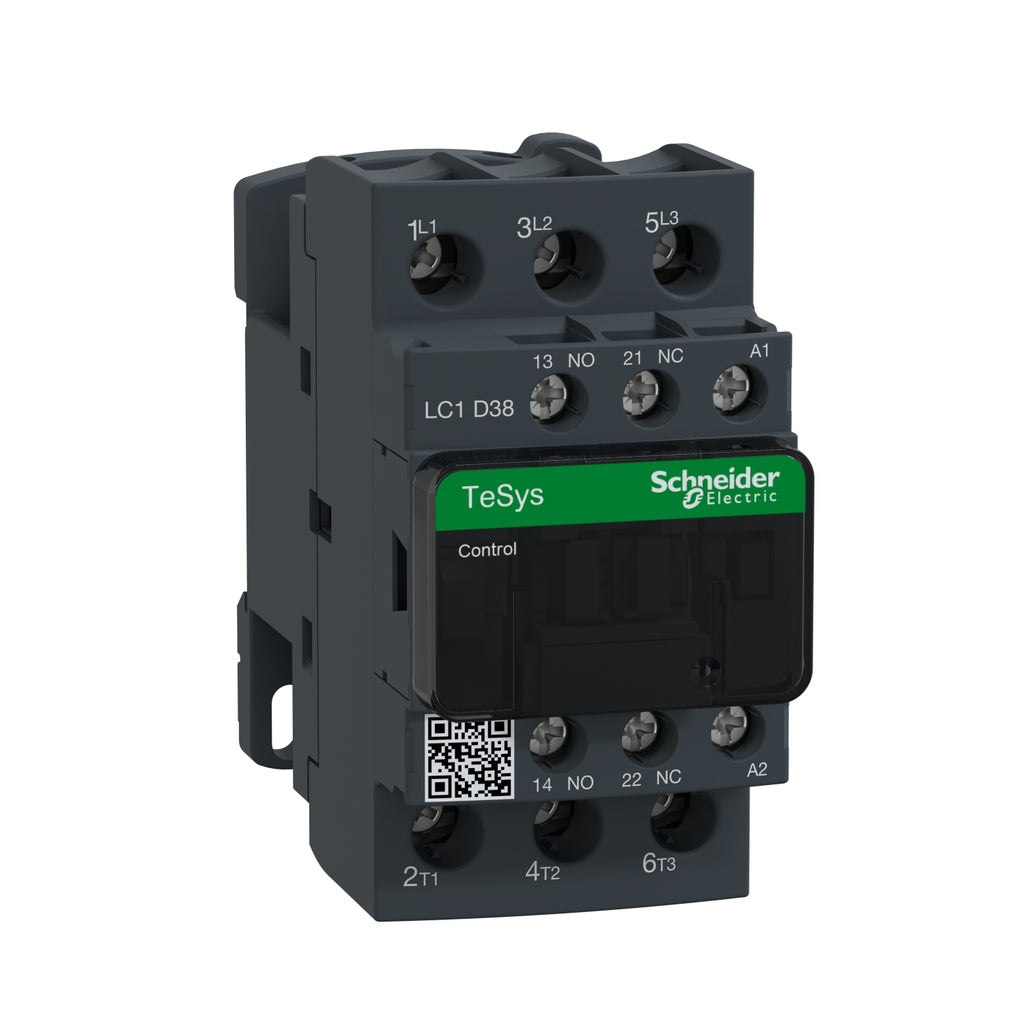

LC1D38M7C is a Schneider Electric 3-pole AC contactor with a 38 ampere rating and 220V coil voltage designed for motor control applications.
This TeSys D series contactor features 3 normally open (NO) power poles and 1 NO + 1 NC auxiliary contact configuration. It supports AC-3 utilization category up to 440V with a rated breaking capacity of 550A. The contactor has a mounting support for rail or plate installation and offers high mechanical durability with 15 million mechanical cycles. It complies with IEC standards including a 6 kV rated impulse withstand voltage and overvoltage category III. The device is designed for control circuits at 50/60 Hz and includes screw clamp terminals for easy wiring.
- Amperage: 38 A
- Voltage: 220 V coil, up to 440 V power circuit
- Poles: 3P (3 normally open)
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting Type: Rail or plate mount
- Rated Breaking Capacity: 550 A at 440 V
- Series/Frame: TeSys D
- Mechanical Durability: 15 million cycles
- Rated Impulse Withstand Voltage: 6 kV (IEC 60947)
- Overvoltage Category: III
-
Specifications
- Part Number: LC1D38M7C
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 52
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 220
- Coil Voltage Minimum : 220
Product Data
- Weight : 0.904
- Certification : CE, UKCA, CCC
