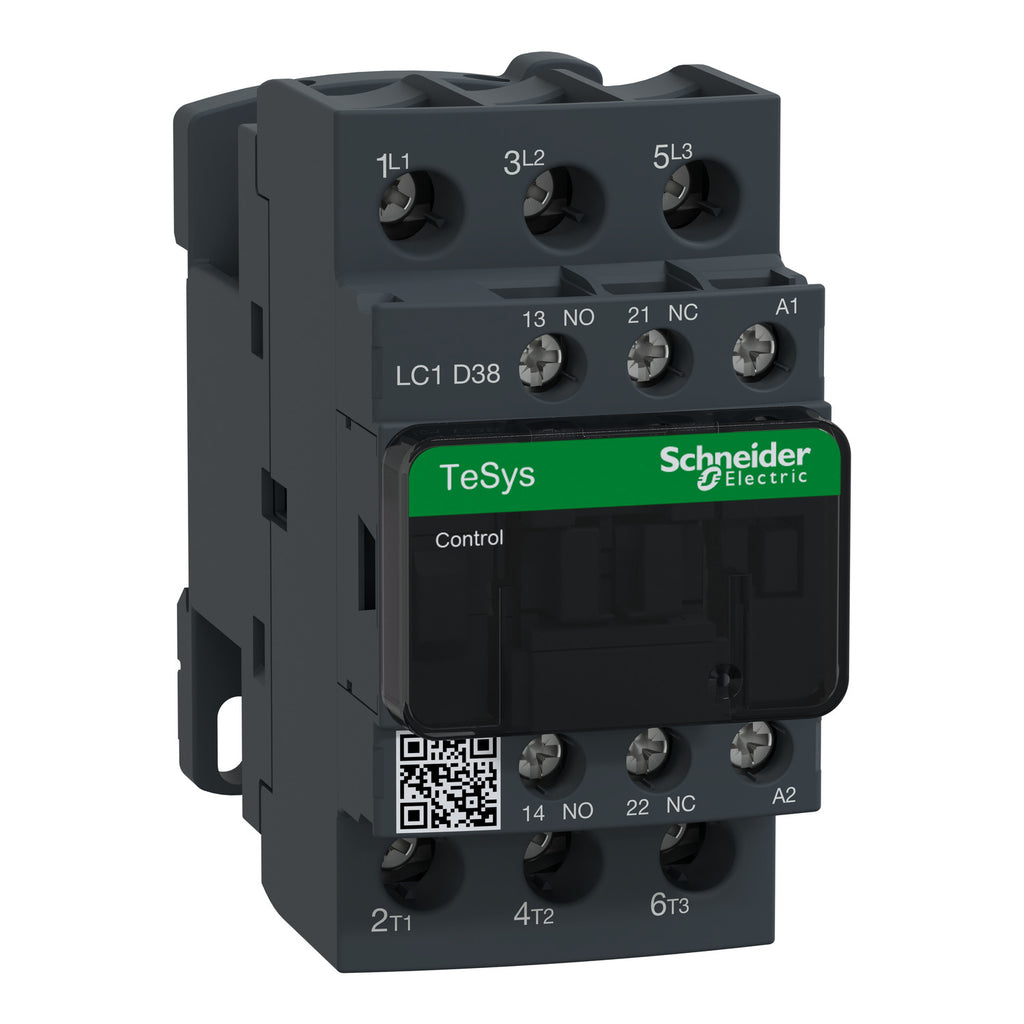

LC1D38 - Schneider Electric 38A 690V 3-Pole Motor Contactor, TeSys Deca Series

LC1D38

LC1D38 is a Schneider Electric 3-pole motor contactor rated for 38 amps and up to 690 volts AC, designed for reliable motor control applications.This contactor features a 3 NO (normally open) pole configuration suitable for starting and stopping electric motors, lighting circuits, and heating systems. It supports utilization categories AC-1, AC-3, and AC-4, with a rated operational current of 38A at 440V AC and a rated operational voltage up to 690V AC. The device includes a low consumption DC control coil, screw clamp terminals for power and control circuits, and built-in bidirectional peak limiting diode suppressor. Mechanical durability is rated at 30 million cycles with an operating rate of 3600 cycles per hour at 60¡C. It complies with IEC 60947 standards and offers a rated impulse withstand voltage conforming to IEC 60947.

• Amperage: 38A
• Voltage: Up to 690V AC
• Poles: 3 (3 NO)
• Utilization Categories: AC-1, AC-3, AC-4
• Control Circuit Voltage: 24 V DC (low consumption coil)
• Mechanical Durability: 30 million cycles
• Operating Rate: 3600 cycles/hour at 60¡C
• Terminal Type: Screw clamp terminals for power an(more...)


  Specifications

  • Part Number: LC1D38
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 38
  • Phase : 3
  • Poles : 3
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 120



  Product Data

  • Weight : 4
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
