LC1D32U7 - Telemecanique Schneider Electric 32A 3-Pole 240V AC Coil IEC Contactor, DIN Rail Mount, Motor Control, AC-3, 600V Interrupt, LC1D Series

LC1D32U7

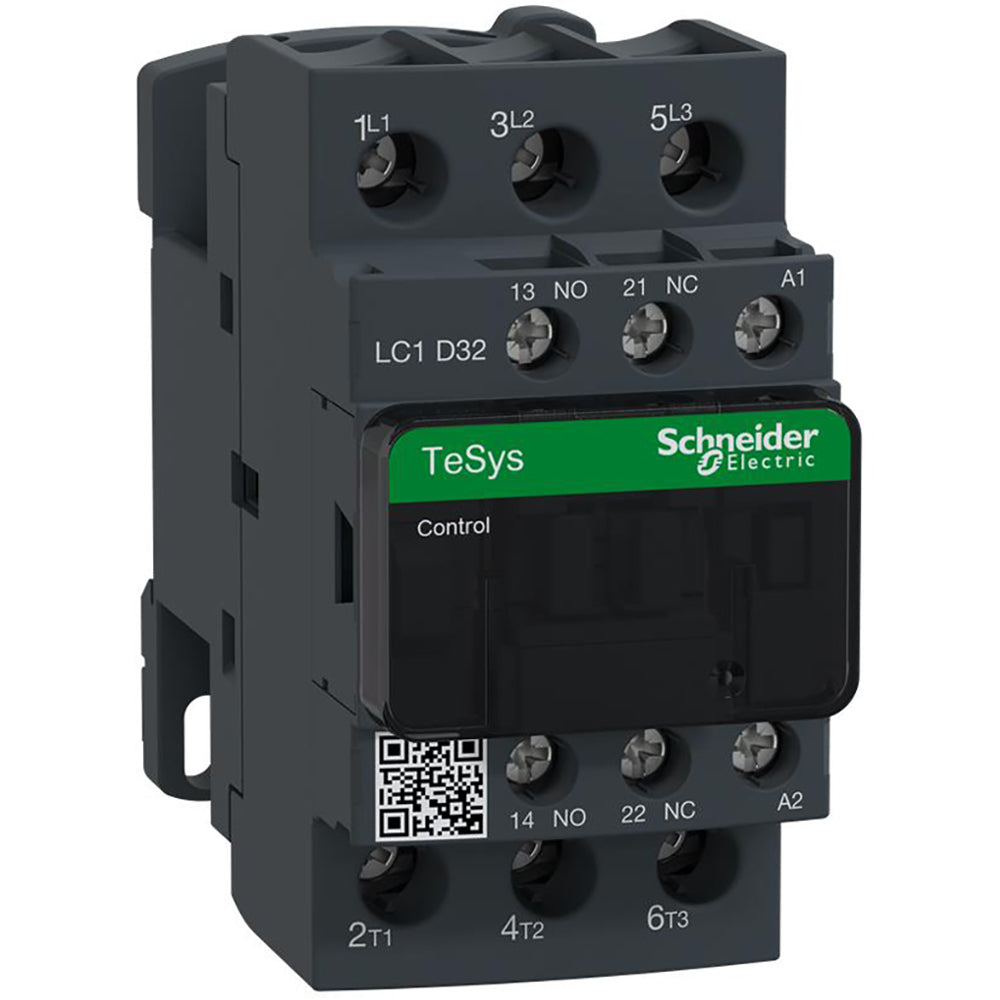

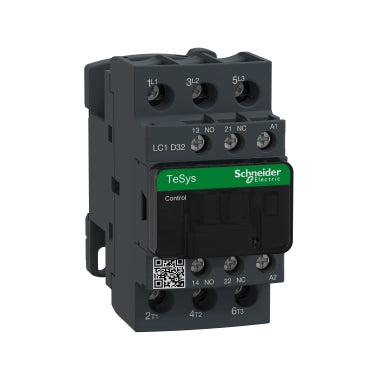

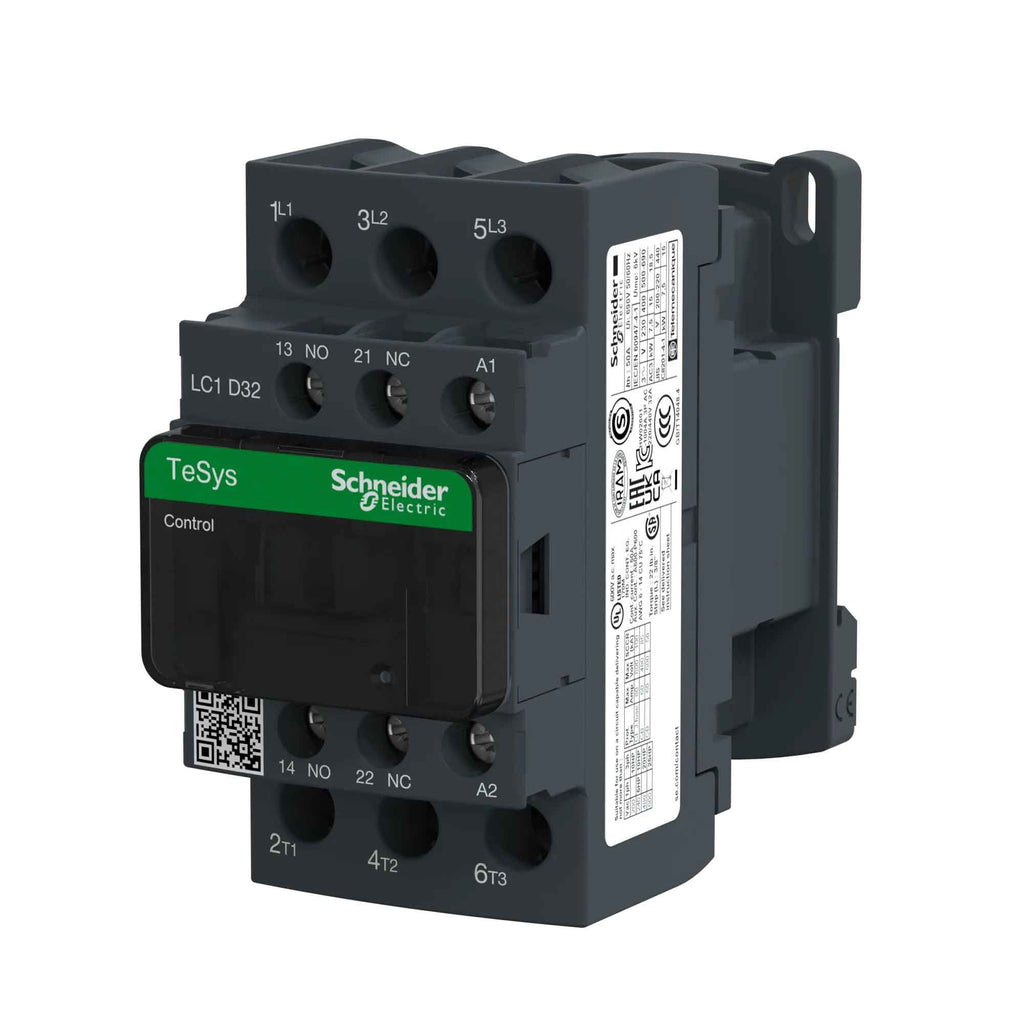

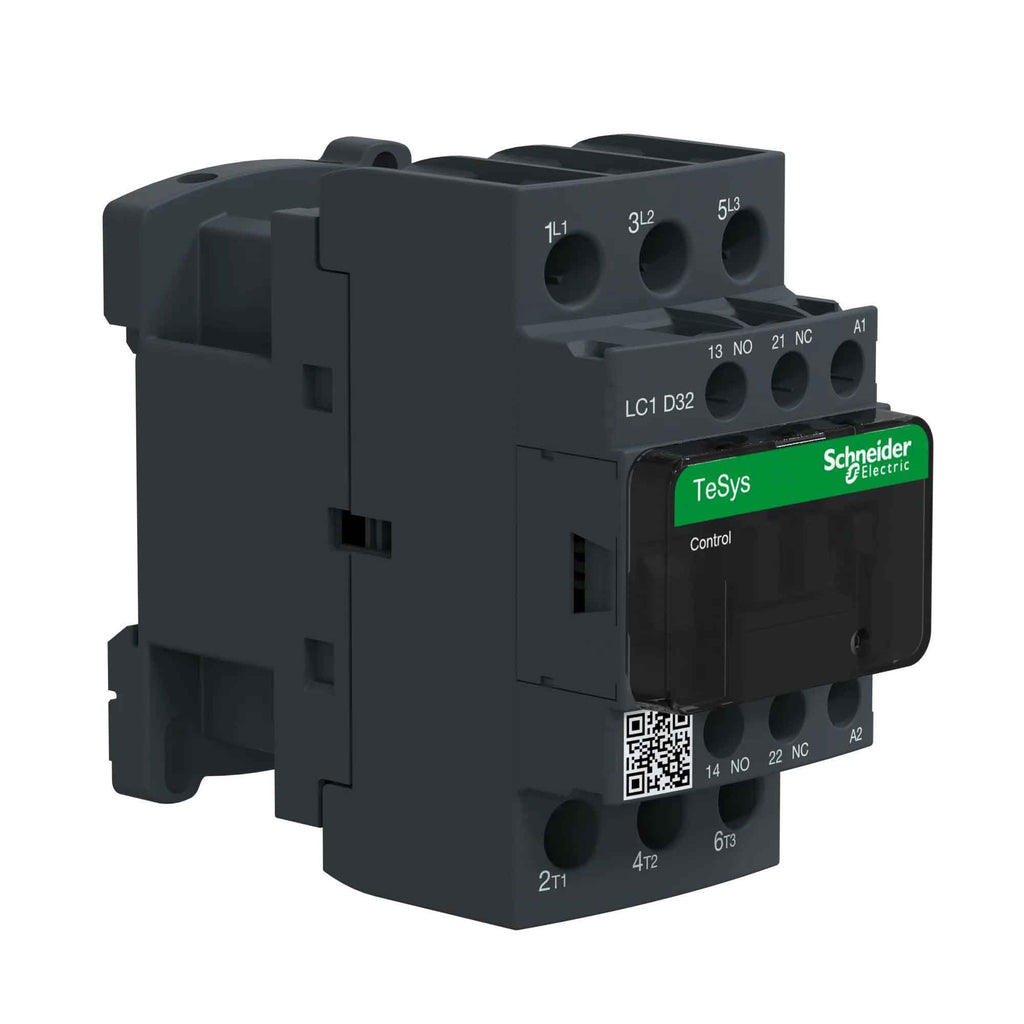

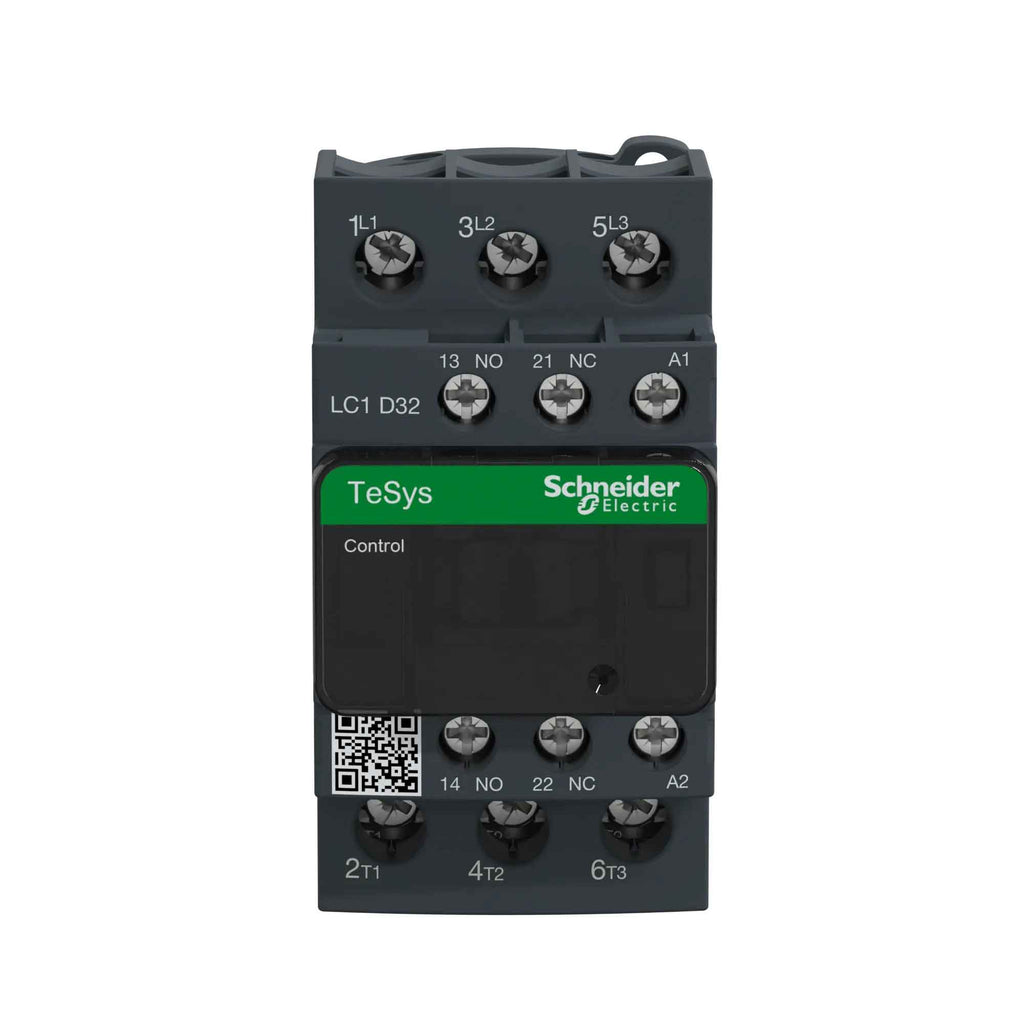

This non-reversing contactor features a 32A rated operational current (AC-3), 3 normally open main poles, a 240V AC 50/60Hz coil, and screw clamp terminals for secure connections. It is rated for up to 600V AC, supports DIN rail mounting, and includes 1NO+1NC built-in auxiliary contacts. The LC1D32U7 is part of the TeSys D (LC1D) series, offers a high mechanical durability of 15 million operations, and is suitable for vertical or angled installation within ±30¡.

Key Specifications
• Amperage: 32A AC-3 (up to 50A AC-1)
• Voltage: 240V AC coil, power circuit up to 690V AC 25...400Hz, 300V DC
• Poles: 3 (3 NO main contacts)

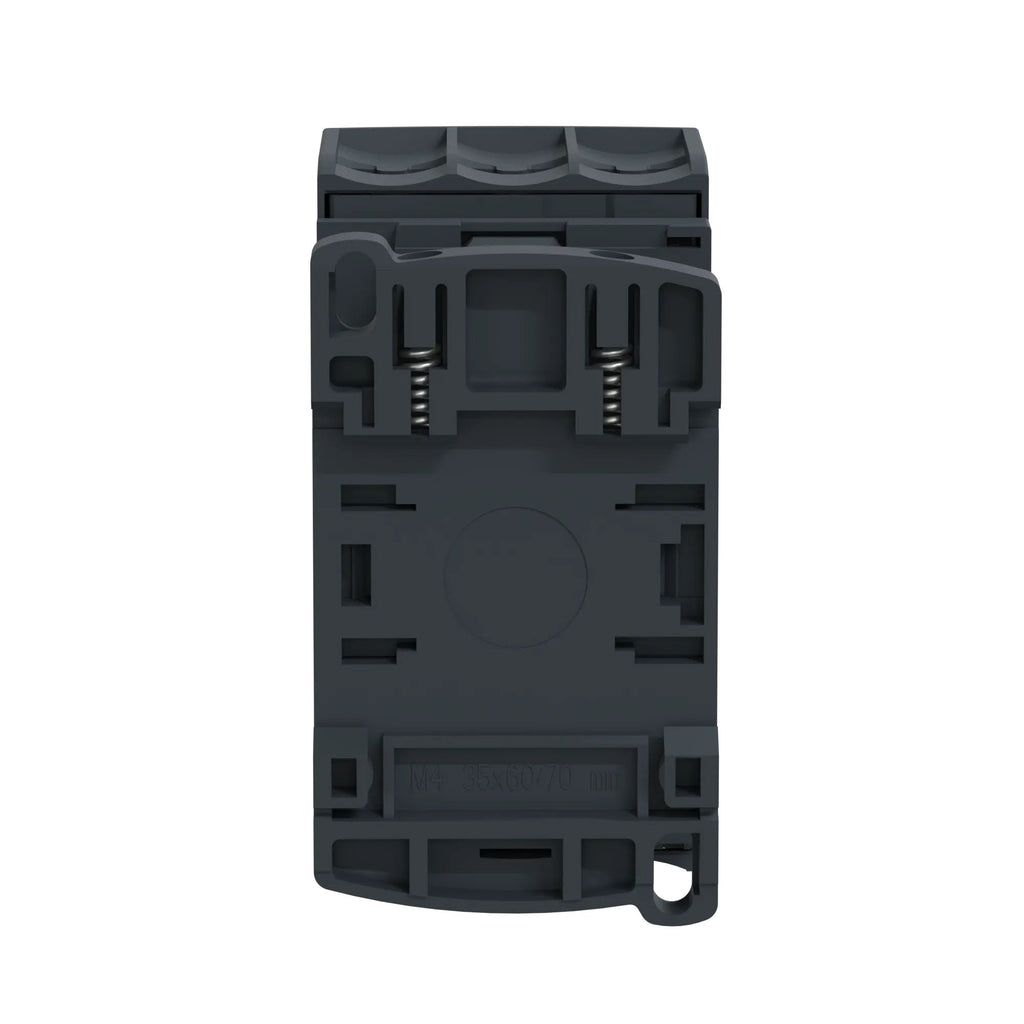

• Mounting Type: 35mm DIN rail
• Interrupt Rating: 600V AC
• Series/Frame: TeSys D (LC1D)
• Trip Unit: Not applicable (contactor only)
• Certifications: IEC 60947-1, 60947-4-1, VDE 0660, EN 60947-1, EN 60947-4-1
• Auxiliary Contacts: 1NO + 1NC (base mounted, expandable)
• Motor Power: 15kW @ 400V AC,(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 240 VAC coil.




  Specifications

  • Part Number: LC1D32U7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 32
  • Phase : 3
  • Poles : 3
  • Horse Power : 2 hp at 115 V AC 50/60 Hz for 1 phase motors-5 hp at 230/240 V AC 50/60 Hz for 1 phase motors-10 hp at 200/208 V AC 50/60 Hz for 3 phases motors-10 hp at 230/240 V AC 50/60 Hz for 3 phases motors-20 hp at 460/480 V AC 50/60 Hz for 3 phases motors-25 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 240
  • Full Load Amps : Full Load Amps-Inductive 32A Full Load Amps-Resistive 50A
  • Coil Voltage Minimum : 220
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 785901207221
  • GTIN : 03389110351729
  • Country of Origin : Czechia
  • Dimensions : 1.77 in x 3.36 in
  • Weight : 0.9
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
