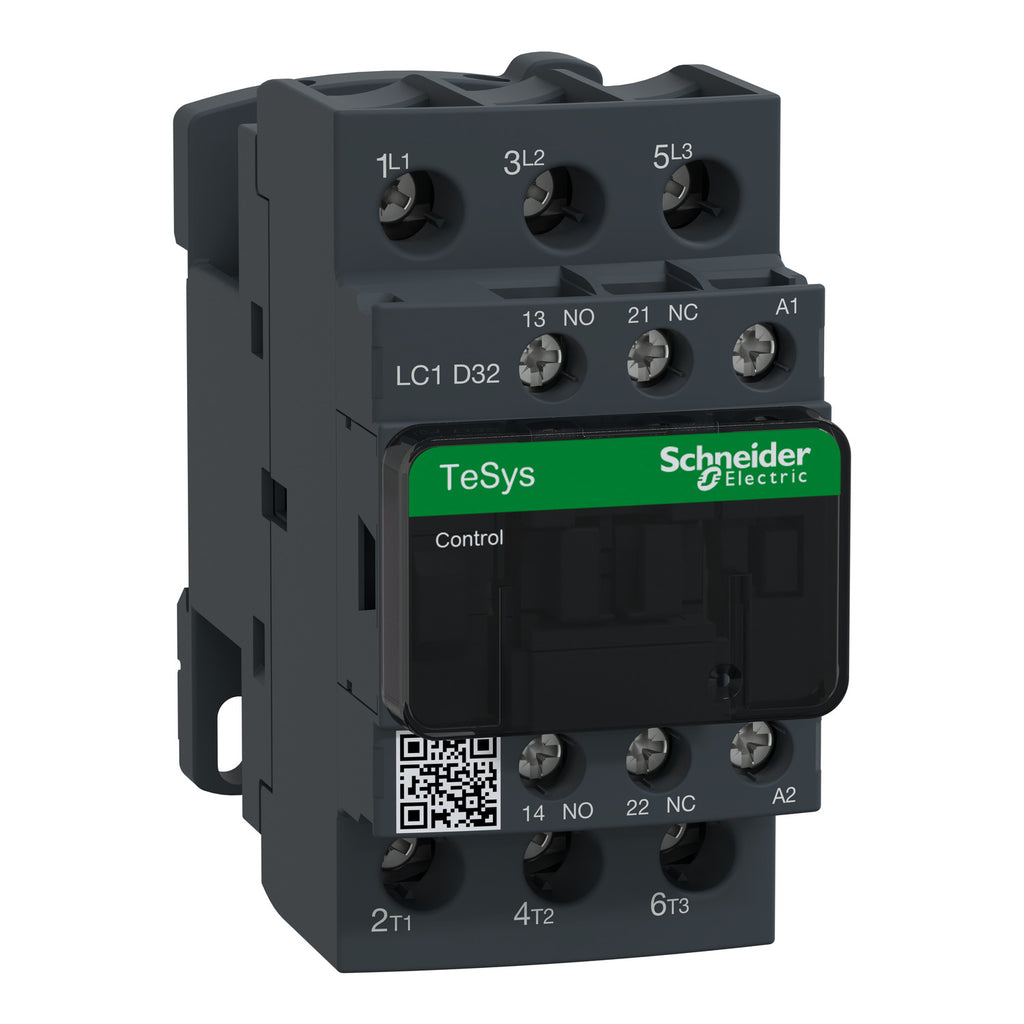

LC1D32B7 - Schneider Electric TeSys D 32A 690V 3-Pole IEC Contactor 24VAC

LC1D32-B7

LC1D32B7 is a compact three-pole TeSys D IEC contactor designed for motor control applications up to 32A at 690V AC. This non-reversing contactor features a 24VAC 50/60Hz coil, screw clamp terminals, and DIN rail mounting for industrial automation and HVAC systems.LC1D32B7 delivers reliable performance with 3 normally open (NO) power pole contacts and 1NO+1NC auxiliary contact composition. The contactor is rated for AC-3 motor control with a breaking capacity of 550A at 440V per IEC 60947 standards. It offers mechanical durability of 15 million operations at no load and electrical durability of 1.6 million operations with load. The compact 45mm width design simplifies installation while maintaining compliance with international standards and IEC60335-1 fire resistance requirements.

• Amperage: 32A
• Rated Voltage: 690V AC
• Poles: 3 (3NO)
• Coil Voltage: 24VAC 50/60Hz
• Series: TeSys D
• Mounting: DIN Rail
• Terminal Type: Screw Clamp
• Auxiliary Contacts: 1NO+1NC
• Breaking Capacity: 550A at 440V
• Mechanical Durability: 15 million operations
• Ele(more...)


  Specifications

  • Part Number: LC1D32-B7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 32
  • Phase : 3
  • Poles : 3
  • Coil Voltage Maximum : 24
  • Coil Voltage Minimum : 24



  Product Data

  • UPC : 038911035013
  • GTIN : 03389110350135
  • Weight : 4
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
