LC1D32B7 - Schneider Electric TeSys Deca 3-Pole Contactor, 32A, 24VAC Coil, 3NO, DIN Rail, IEC, Non-Reversing, Motor Control

LC1D32B7

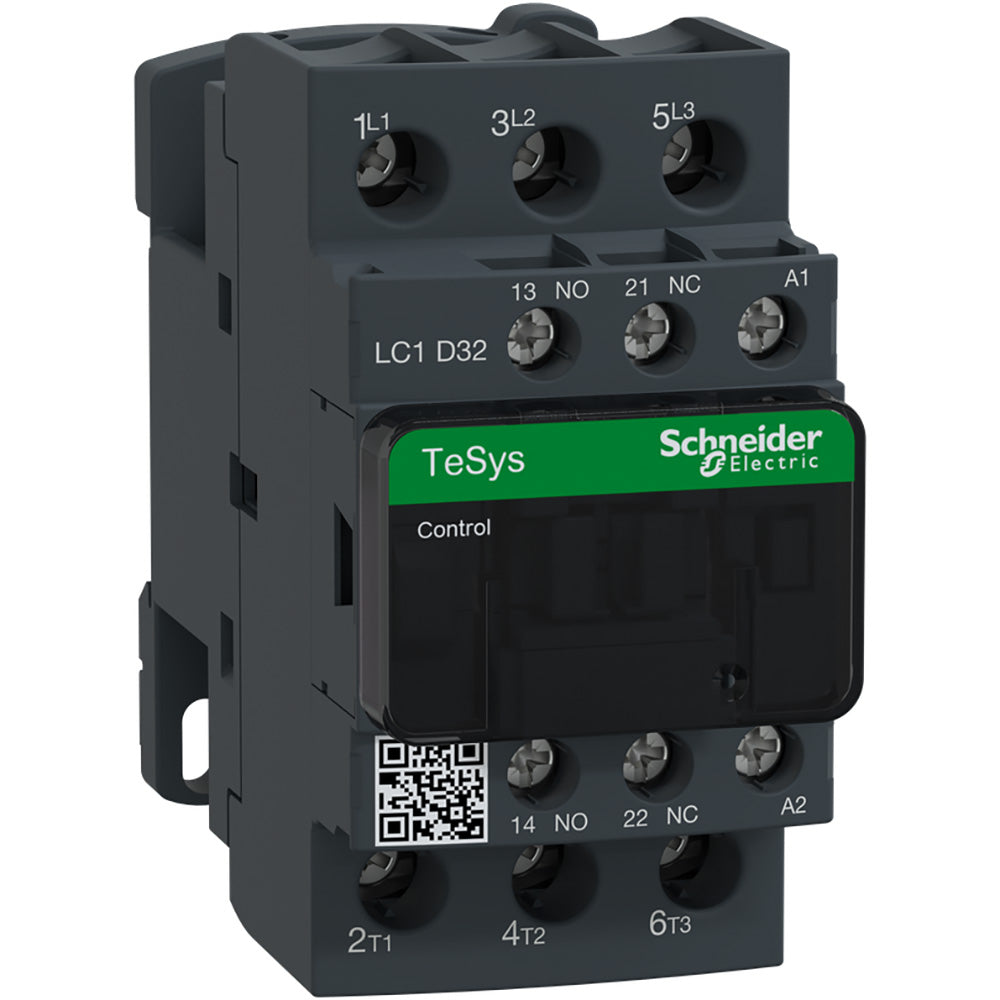

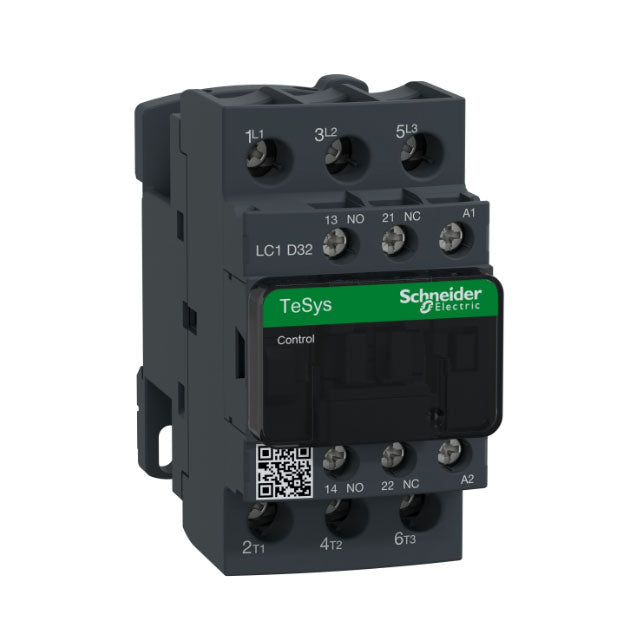

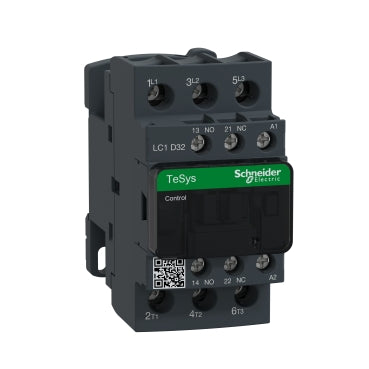

LC1D32B7 Schneider Electric TeSys Deca 3-pole contactor for reliable motor control in industrial and automation applications.

This non-reversing IEC contactor features a 24VAC 50/60Hz coil, screw clamp terminals, and is designed for easy DIN rail mounting. It is rated for up to 32A, 440Ð480VAC, and is suitable for controlling motors up to 20HP at 480VAC. The LC1D32B7 includes 1NO+1NC auxiliary contacts, complies with IEC standards, and offers improved fire resistance with IEC 60335-1 certification.

Key Specifications
• Amperage: 32A
• Voltage: Up to 440Ð480VAC
• Poles: 3 (3NO)
• Mounting Type: DIN Rail
• Interrupt Rating: Not specified in available data
• Series/Frame: TeSys Deca (LC1-D)
• Trip Unit: Not applicable (contactor only)
• Certifications: IEC 60947-4-1, IEC 60947-5-1, IEC 60335-1
• Coil Voltage: 24VAC 50/60Hz
• Auxiliary Contacts: 1NO + 1NC
• Degree of Protection: IP20
• Width: 45mm

At Essential Parts, we offer fast shipping, lo(more...)

Additional Information

This TeSys D IEC Contactor includes a 24 VAC coil.

Specifications

• Part Number: LC1D32B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 32
• Phase : 3
• Poles : 3
• Horse Power : 2 hp at 115 V AC 50/60 Hz for 1 phase motors-5 hp at 230/240 V AC 50/60 Hz for 1 phase motors-10 hp at 200/208 V AC 50/60 Hz for 3 phases motors-10 hp at 230/240 V AC 50/60 Hz for 3 phases motors-20 hp at 460/480 V AC 50/60 Hz for 3 phases motors-25 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 32A Full Load Amps-Resistive 50A
• Coil Voltage Minimum : 24
• Frequency : 50/60 Hz

Product Data

• UPC : 785901207184
• GTIN : 03389110350135
• Country of Origin : France
• Dimensions : 1.77 in x 3.36 in
• Weight : 0.904
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
