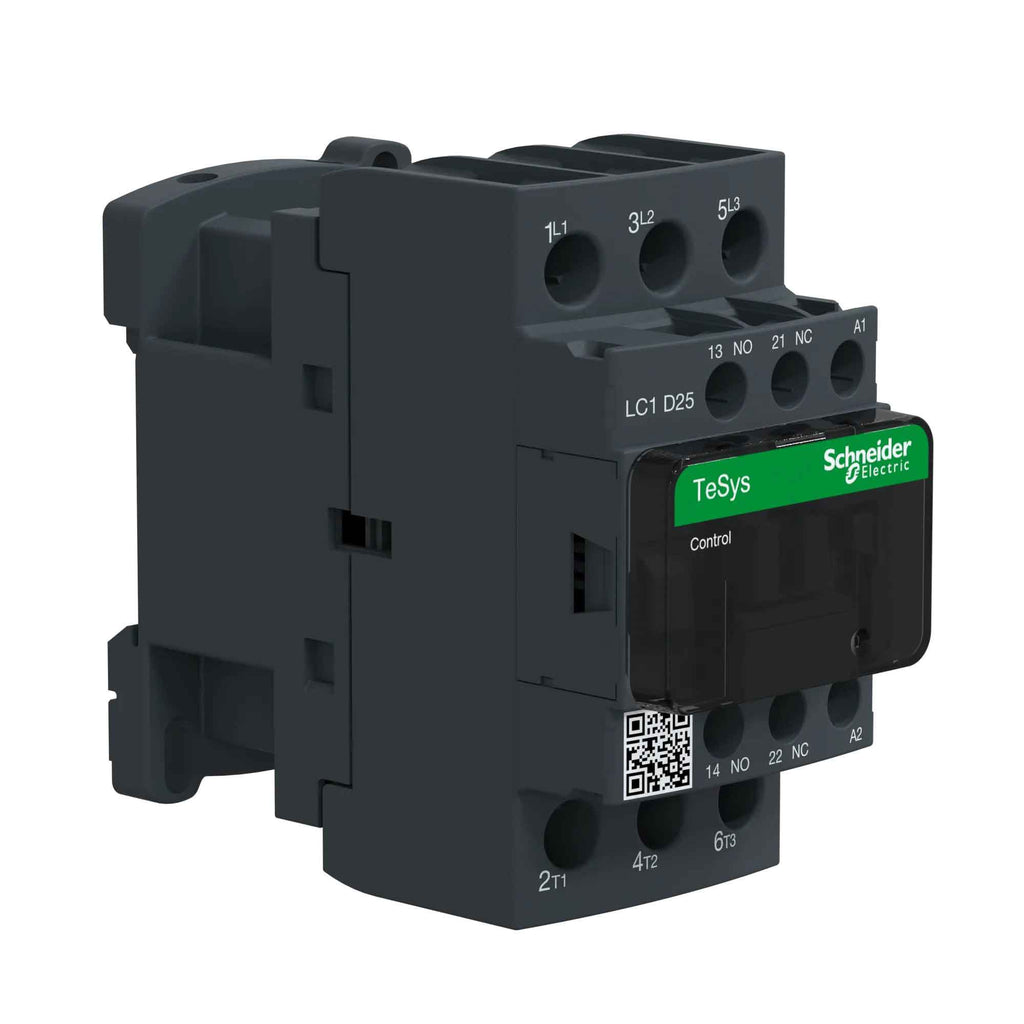

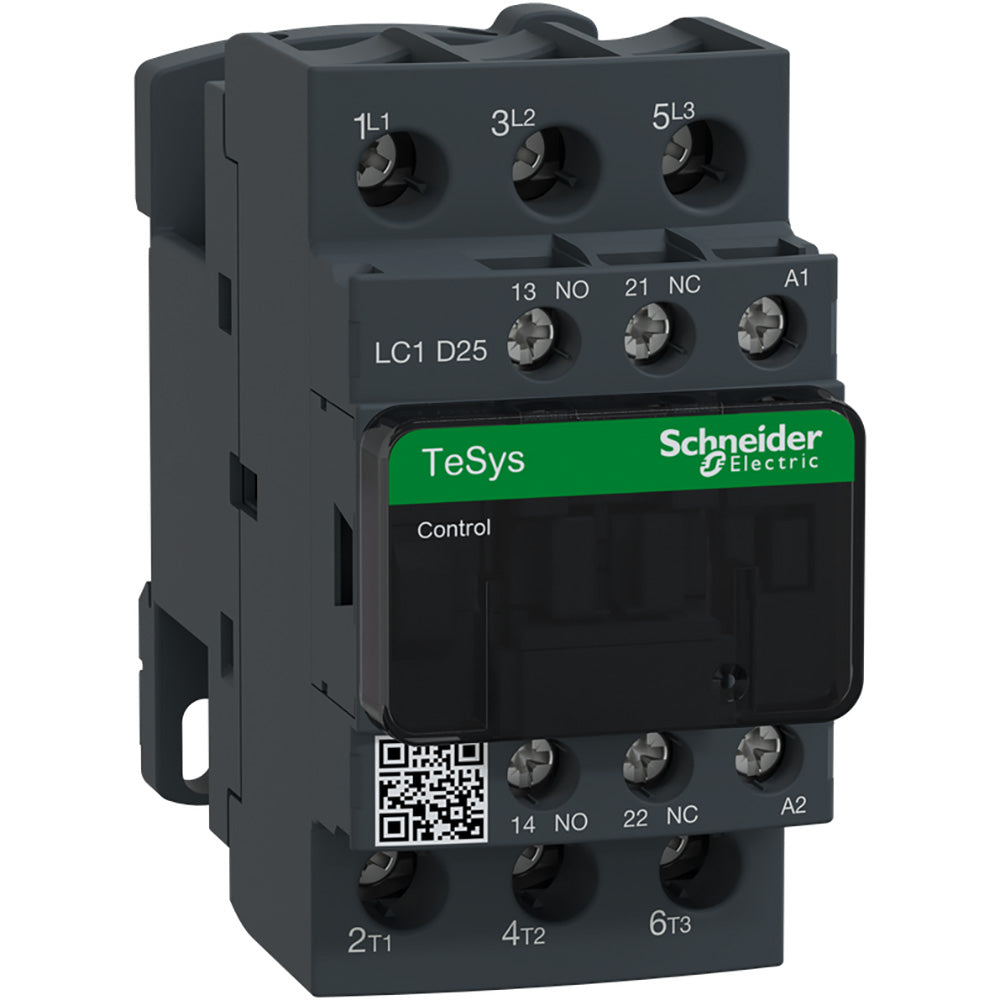

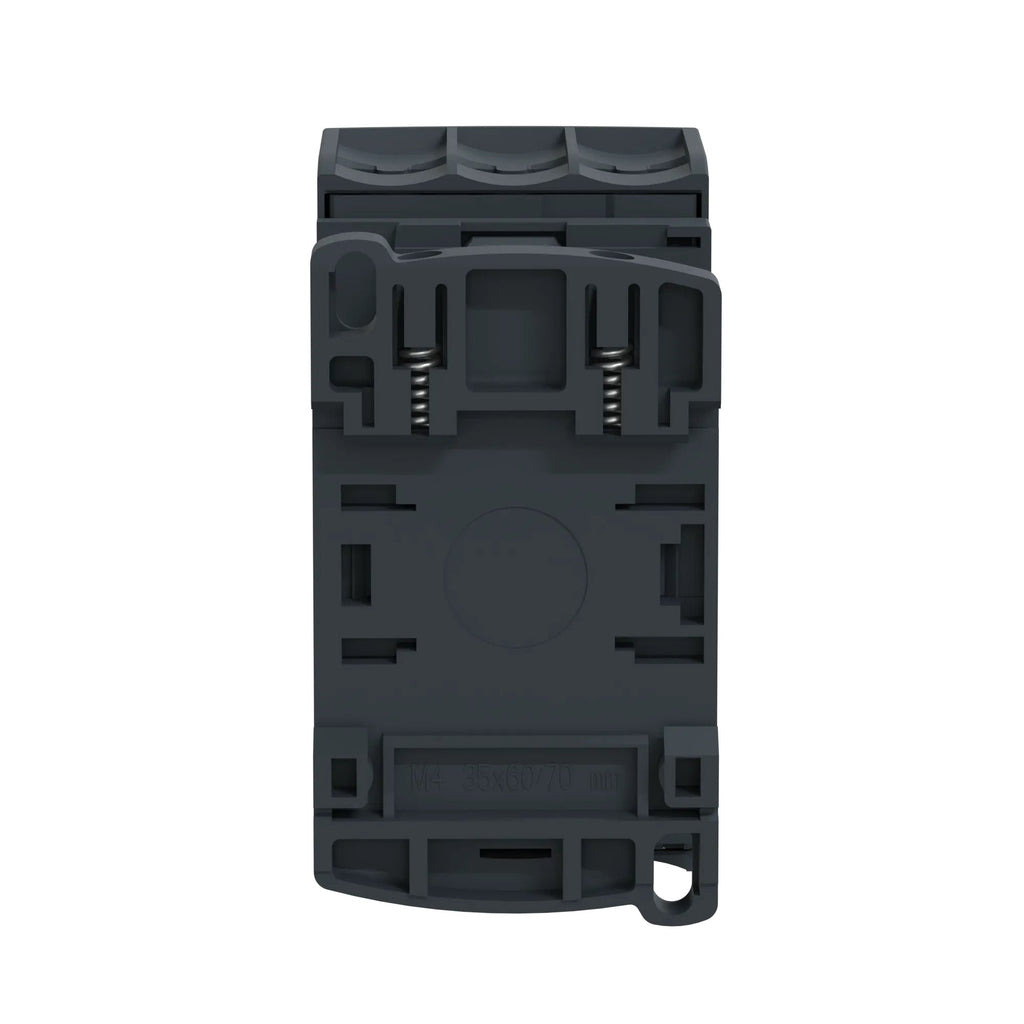

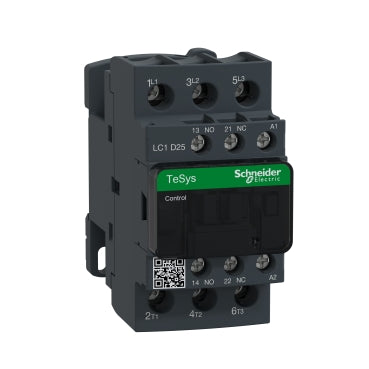

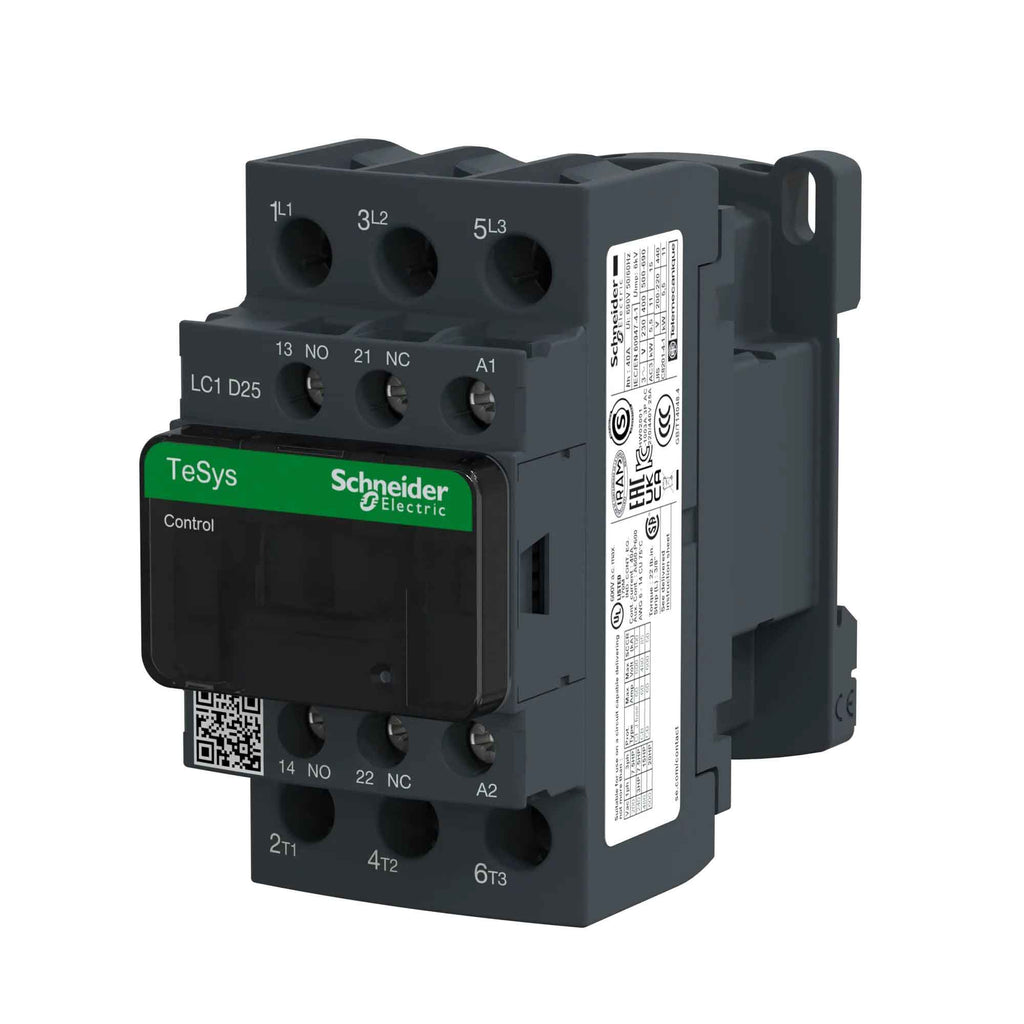

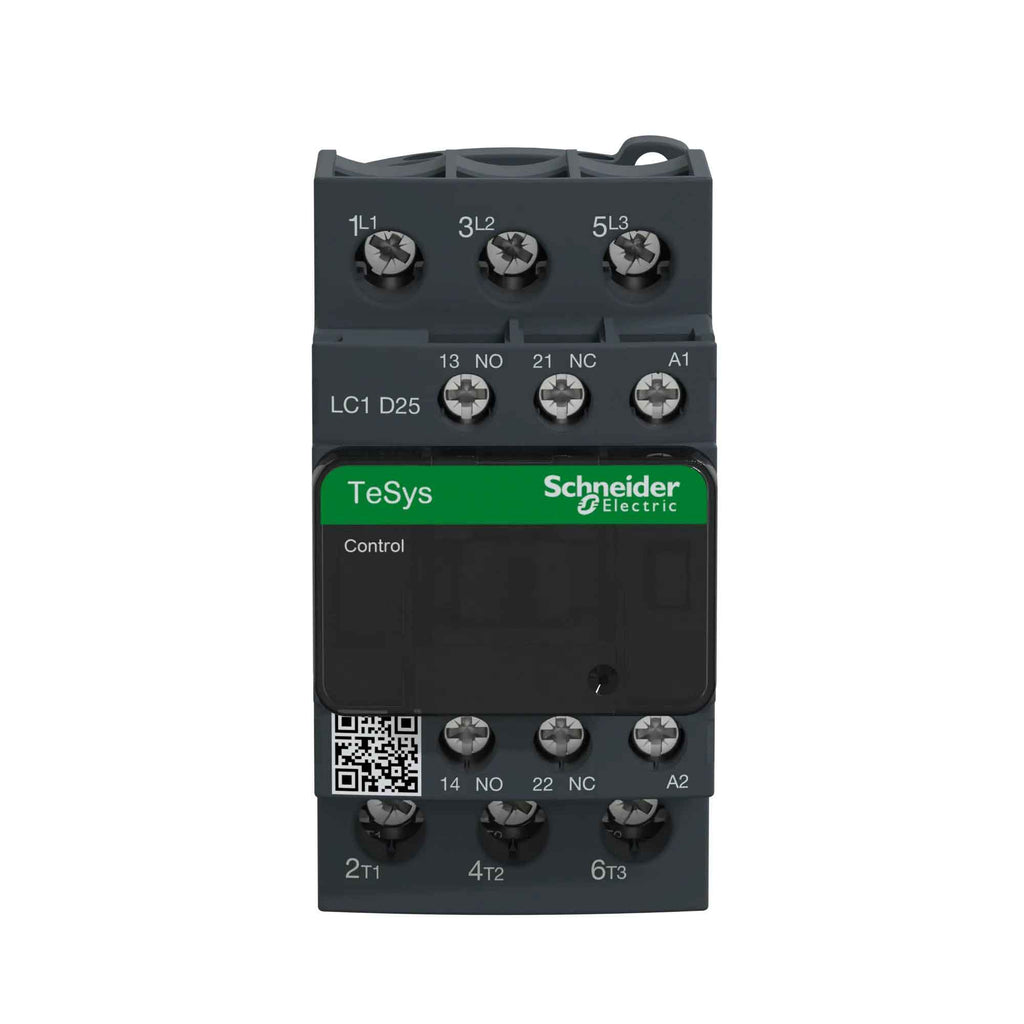

LC1D25LE7 - Schneider Electric 25A 3-Pole TeSys D Motor Contactor 208V AC Coil 440V AC-3 Rated

LC1D25LE7

LC1D25LE7 is a Schneider Electric TeSys D motor contactor designed for reliable motor control applications with a 25 amp rating and 3 poles.This IEC contactor features 3 normally open (3 NO) poles, supports AC-3 utilization category up to 440V, and is rated for 25A operational current at 440V AC. It operates with a 208V AC coil at 50/60 Hz and is suitable for motor loads up to 11 kW at 400V AC. The device offers screw clamp terminals for easy installation and meets IEC 60947-1 and 60947-4-1 standards with a rated insulation voltage of 600V and a short-circuit current rating up to 100kA. It supports mounting in ±30¡ positions and has a mechanical durability of 15 million operating cycles.

Key Specifications
• Amperage: 25 A
• Voltage: 208 V AC coil, up to 690 V AC power circuit
• Poles: 3 poles (3 NO)
• Mounting: Vertical with ±30¡ tolerance
• Interrupt Rating: Up to 100 kA SCCR
• Series/Frame: TeSys D
• Trip Unit: Non-reversing contactor
• Certifications: IEC 60947-1, IEC 60947-4-1, UL, CSA
• Mechanical Durability: 15 million cycles
• Degree of Protection: IP 2X
<(more...)


Additional Information

This TeSys D IEC Contactor includes a 208 VAC coil.




Specifications

• Part Number: LC1D25LE7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• Horse Power : 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 115 V AC 50/60 Hz for 1 phase motors-7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-15 hp at 460/480 V AC 50/60 Hz for 3 phases motors-20 hp at 575/600 V AC 50/60 Hz for 3 phases motors-7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 208
• Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 208
• Frequency : AC 50/60 Hz



Product Data

• UPC : 785901213215
• GTIN : 03389110294491
• Country of Origin : France
• Dimensions : 1.77 in x 3.36 in
• Weight : 0.913
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
