LC1D25-BD - Schneider Electric 25A 3-Pole TeSys Deca Motor Contactor 24V DC Coil 15HP 440V AC

LC1D25-BD

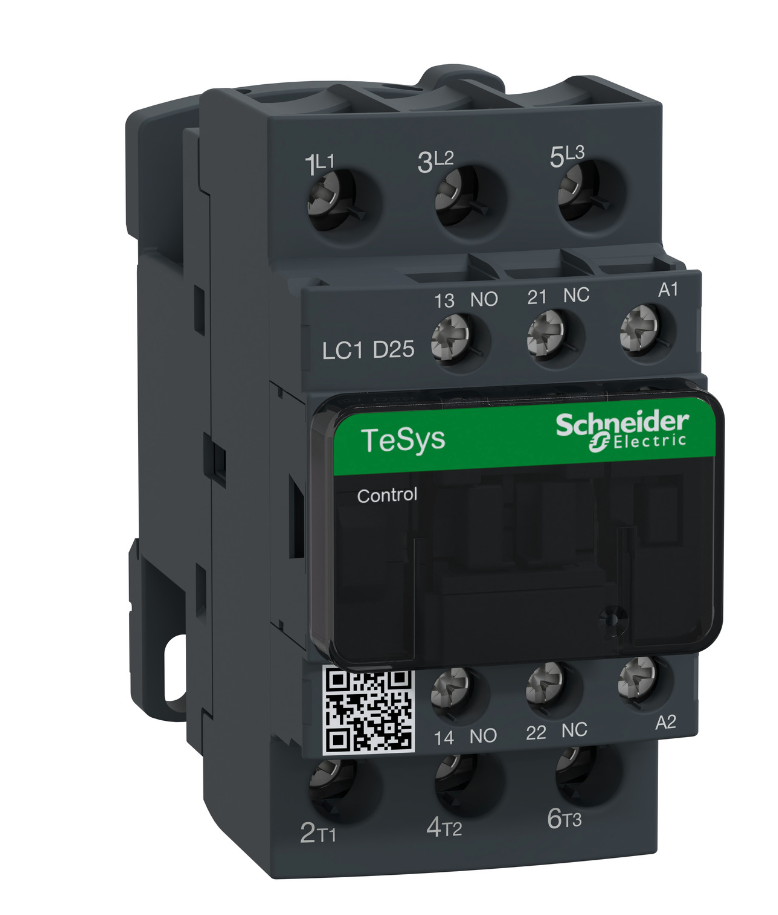

LC1D25-BD is a Schneider Electric TeSys Deca 3-pole motor contactor designed for industrial motor control applications.This contactor features a 25 amp rated operational current at up to 440 V AC (AC-3), with a 24 V DC coil voltage. It supports motor power ratings up to 15 kW (20 HP) at 480 V AC and is suitable for use in resistive and motor control loads (AC-1, AC-3, AC-4). The device includes 3 normally open (3 NO) poles and screw clamp terminals for secure wiring. It offers mechanical durability of 30 million cycles and an operating rate of 3600 cycles per hour at 60 ¡C. The contactor complies with IEC 60947-4-1 and IEC 60947-5-1 standards and features improved fire resistance and dustproof auxiliaries.

• Rated operational current: 25 A at ² 440 V AC (AC-3)
• Rated operational voltage: ² 690 V AC, ² 300 V DC
• Poles: 3-pole, 3 normally open (3 NO)
• Coil voltage: 24 V DC
• Motor power rating: up to 15 kW (20 HP) at 480 V AC
• Mounting type: Plate or rail mount
• Mechanical durability: 30 million cycles
• Operating rate: 3600 cycles/hour at 60 ¡C
• Terminal type: Screw clamp terminals

• Specifications

  • Part Number: LC1D25-BD
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 25
  • Phase : 3
  • Poles : 3
  • Coil Voltage Maximum : 24
  • Coil Voltage Minimum : 24



  Product Data

  • UPC : 038911034973
  • GTIN : 00389110349736
  • Weight : 4
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
