Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC1D25-G7

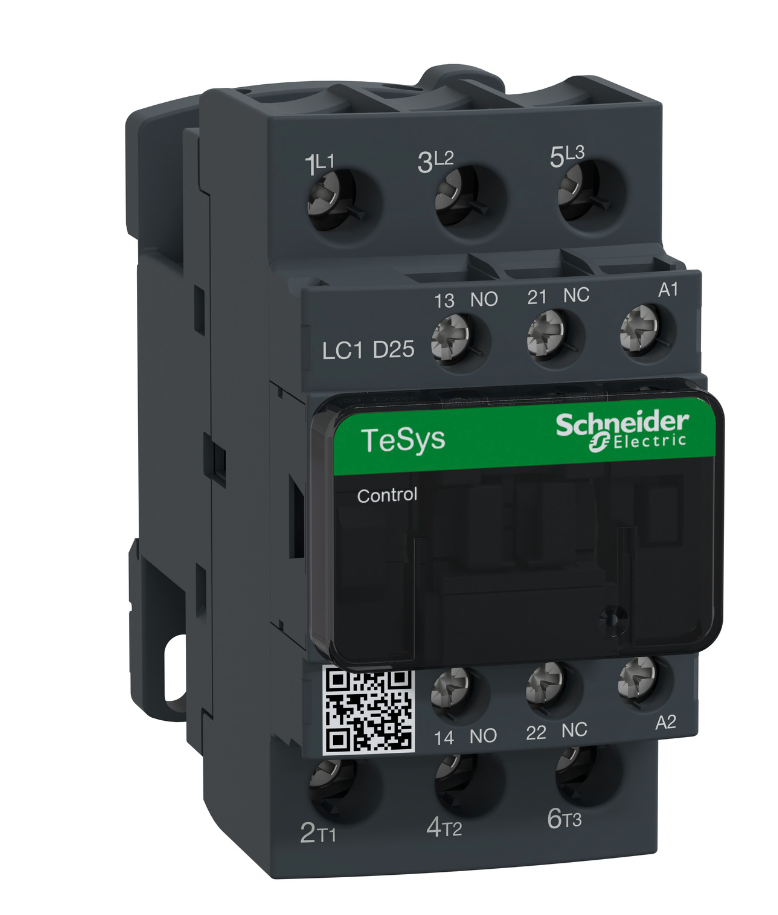

LC1D25G7 is a TeSys Deca 3-pole contactor designed for motor control and resistive load applications, featuring a 120V AC 50/60 Hz coil and 3NO power poles with 1NO+1NC auxiliary contacts.This contactor is engineered for reliable switching in industrial and HVAC environments, supporting up to 25A at 440V AC for motor loads and 40A at 440V AC for resistive loads. It features screw clamp terminals for easy installation and DIN rail mounting for flexible integration.
- 3 poles (3NO)
- 25A rated operational current (AC-3)
- 40A rated operational current (AC-1)
- 120V AC 50/60 Hz control circuit voltage
- 690V AC maximum operational voltage (power circuit)
- 300V DC maximum operational voltage (power circuit)
- DIN rail mounting
- 1NO+1NC auxiliary contacts
- Utilisation categories: AC-1, AC-3, AC-4, AC-3e
- Rated breaking capacity: 450A at 440V
- IP2x front face protection
- UL94V-1 flammability rating
Specifications
- Part Number: LC1D25-G7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Family : TeSys D
- Type : LC1D
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
Product Data
- UPC : 038911940848
- GTIN : 00389119408489
- Weight : 4
- Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
