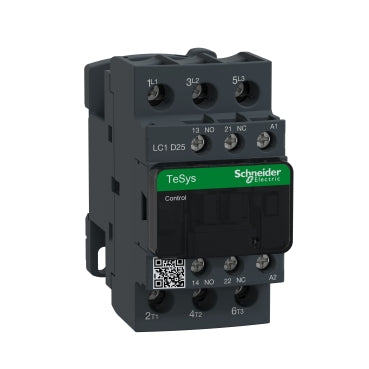

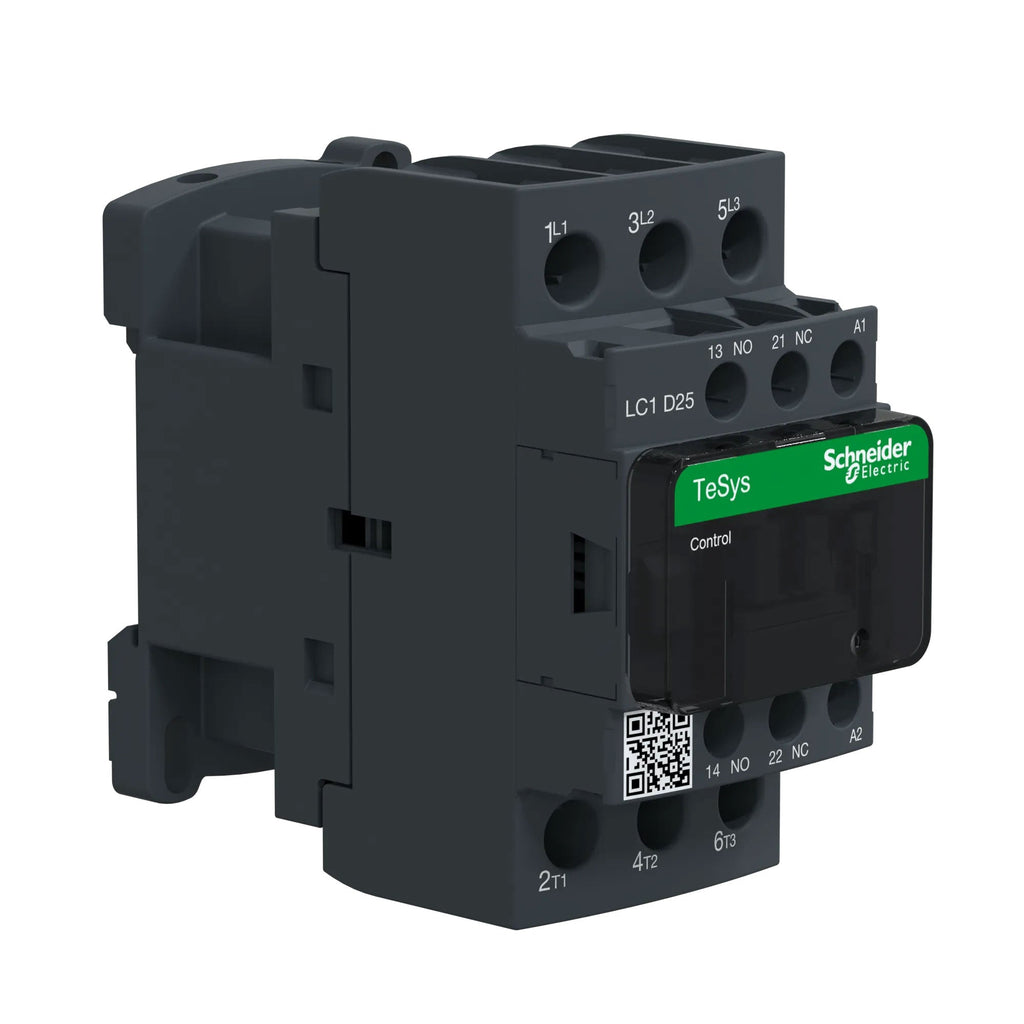

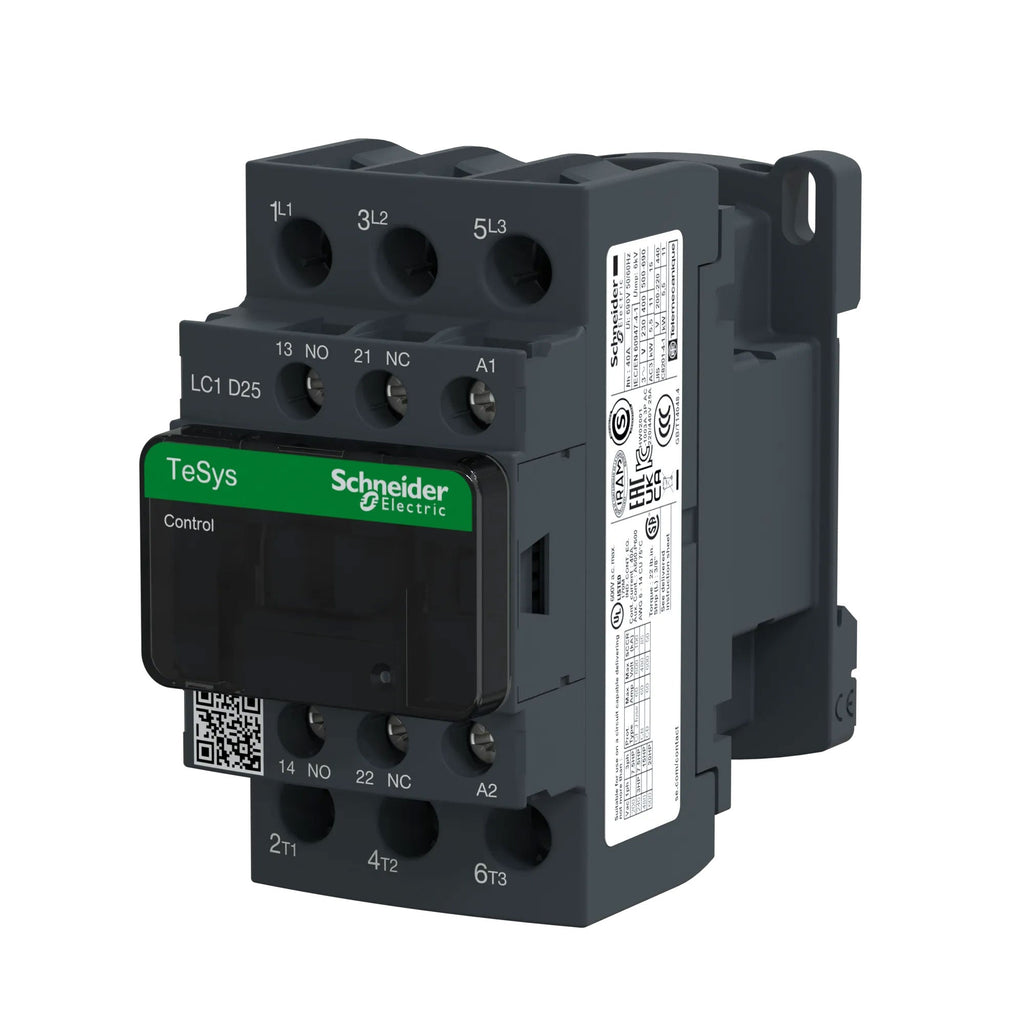

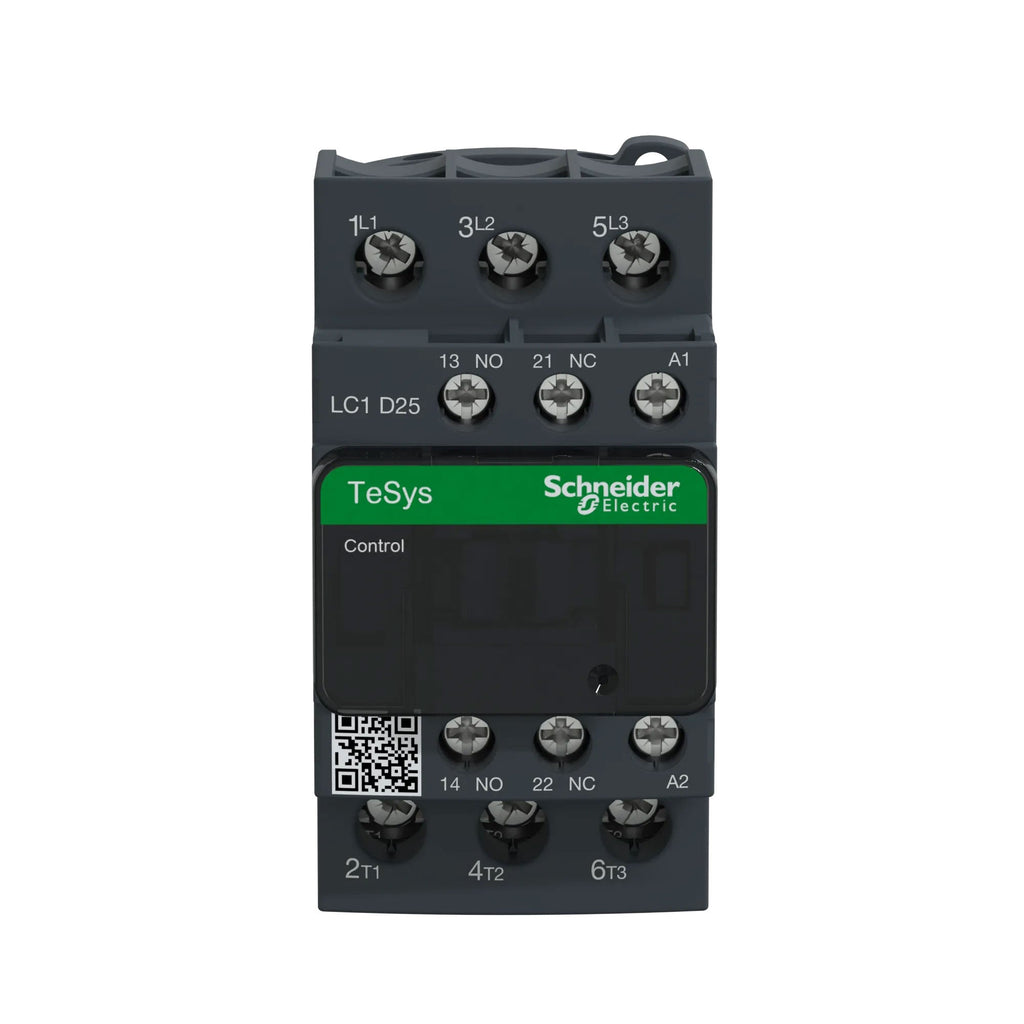

LC1D25B7 - Schneider Electric 25A 3-Pole 24VAC Motor Contactor TeSys Deca 15HP 480V IEC

LC1D25B7

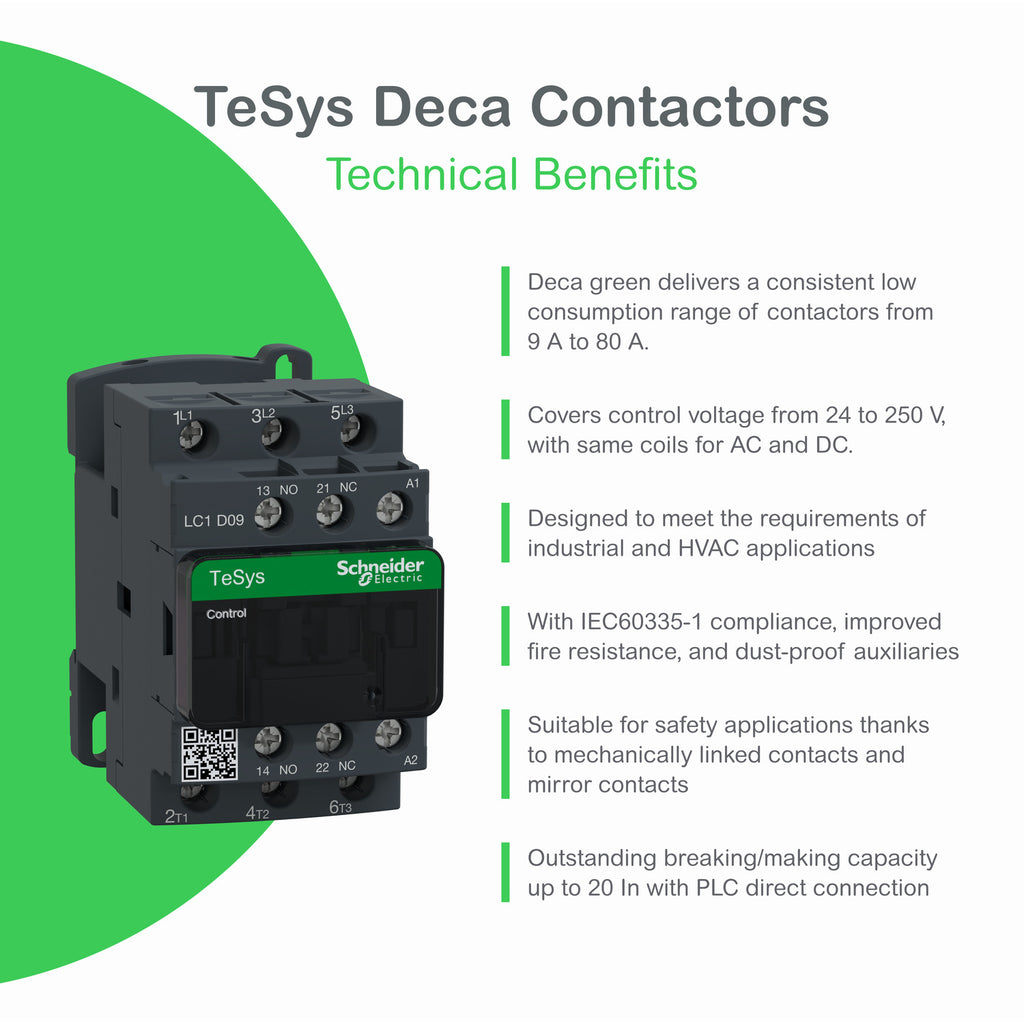

LC1D25B7 is a Schneider Electric TeSys Deca 3-pole motor contactor designed for industrial motor control applications.This contactor features a 25 amp rated operational current and supports motor loads up to 15 HP at 480 VAC. It operates with a 24 VAC 50/60 Hz coil and conforms to IEC standards including IEC 60946. The device includes 3 normally open (NO) contacts and is suitable for AC-1, AC-3, and AC-4 utilization categories. It offers a high interrupt rating with up to 100kA SCCR and is designed for easy installation with multi-standard screws. Certifications include IEC 60335-1 and IEC/EN/UL 60335-2-40 for fire resistance and refrigerant safety.

Key Specifications
• Rated Current: 25 A
• Poles: 3 (3 NO)
• Coil Voltage: 24 VAC 50/60 Hz
• Motor HP Rating: 15 HP at 480 VAC
• Rated Operational Voltage: up to 690 V AC
• Interrupt Rating: up to 100 kA SCCR
• Utilization Categories: AC-1, AC-3, AC-4
• Mounting Type: Screw terminal
• Series/Frame: TeSys Deca
• Certifications: IEC 60946, IEC 60335-1, IEC/EN/UL 60335-2-40
At Essential Parts, w(more...)


Additional Information

This TeSys D IEC Contactor includes a 24 VAC coil.




Specifications

• Part Number: LC1D25B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Family : TeSys D
• Type : LC1D
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• Horse Power : 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-2 hp at 115 V AC 50/60 Hz for 1 phase motors-7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-15 hp at 460/480 V AC 50/60 Hz for 3 phases motors-20 hp at 575/600 V AC 50/60 Hz for 3 phases motors-7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Full Load Amps : Full Load Amps-Inductive 25A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 24
• Frequency : AC 50/60 Hz



Product Data

• UPC : 785901207122
• GTIN : 03389110349658
• Country of Origin : Indonesia
• Dimensions : 1.77 in x 3.36 in
• Weight : 0.891
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
