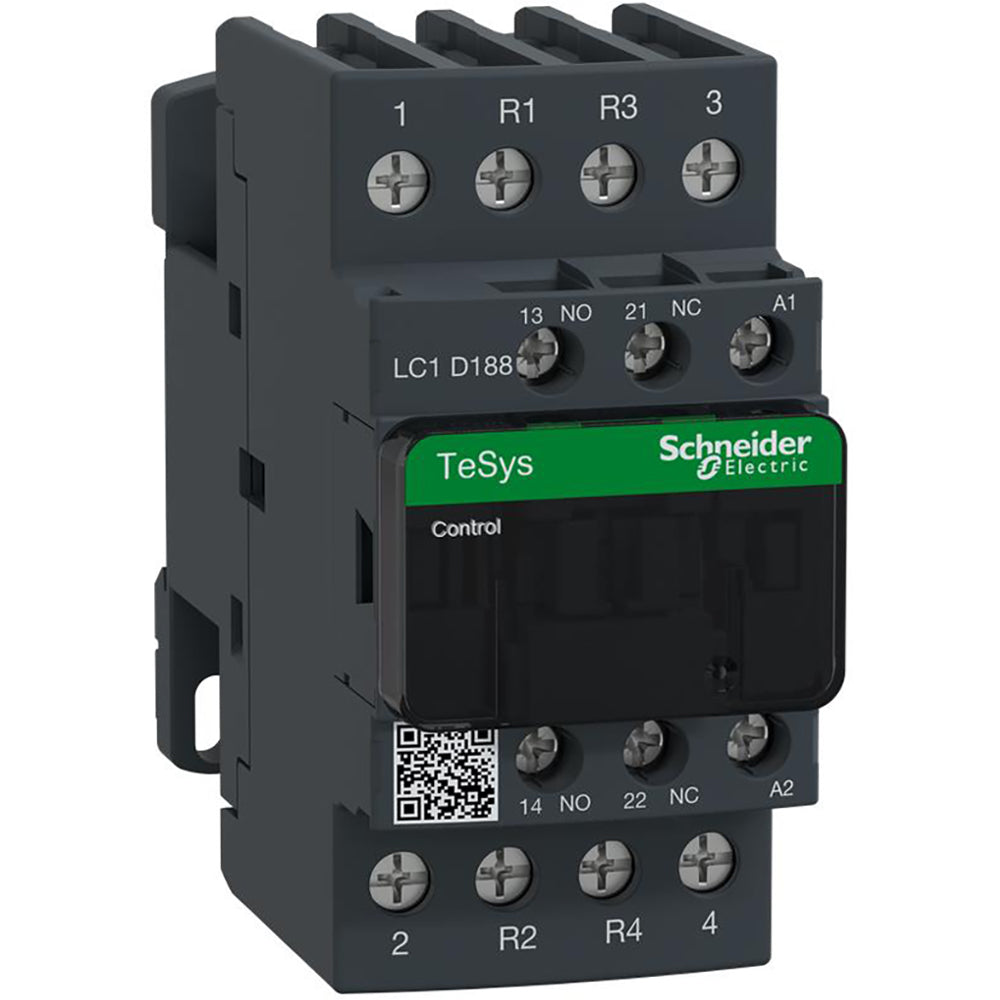

LC1D188G7 - Schneider Electric TeSys Deca 32A 4-Pole Contactor 600V AC-1 120V AC Coil Screw Clamp Terminals

LC1D188G7

This contactor features 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, a 120V AC 50/60Hz coil, and screw clamp terminals for secure wiring. It supports a maximum operating rate of 3600 cycles per hour at 60¡C and offers mechanical durability of 15 million cycles. The device complies with IEC 60947-4-1 and CSA standards and is suitable for industrial and HVAC applications. It includes a safety reliability level B10d of over 1.3 million cycles under nominal load and 20 million cycles mechanical load.

• Amperage: 32 A
• Voltage: 600 V AC-1 power circuit
• Poles: 4 (2 NO + 2 NC)
• Coil Voltage: 120 V AC 50/60 Hz
• Mounting Type: Open style with screw clamp terminals
• Interrupt Rating: Suitable for AC-1 applications
• Series/Frame: TeSys Deca
• Mechanical Durability: 15 million cycles
• Operating Rate: 3600 cycles/hour at 60¡C
• Certifications: IEC 60947-4-1, CSA certified
• Safe(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 120 VAC coil.




  Specifications

  • Part Number: LC1D188G7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 18
  • Phase : 3
  • Poles : 4
  • Horse Power : 1 hp at 115 V AC 50/60 Hz for 1 phase motors-3 hp at 230/240 V AC 50/60 Hz for 1 phase motors-5 hp at 200/208 V AC 50/60 Hz for 3 phases motors-5 hp at 230/240 V AC 50/60 Hz for 3 phases motors-10 hp at 460/480 V AC 50/60 Hz for 3 phases motors-15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 2 NO + 2 NC
  • Coil Voltage Maximum : 120
  • Coil Voltage Minimum : 110
  • Frequency : AC 50/60 Hz



  Product Data

  • UPC : 33891102913
  • GTIN : 03389110291346
  • Country of Origin : Indonesia
  • Dimensions : 45 mm x 91 mm
  • Weight : 1.05
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
