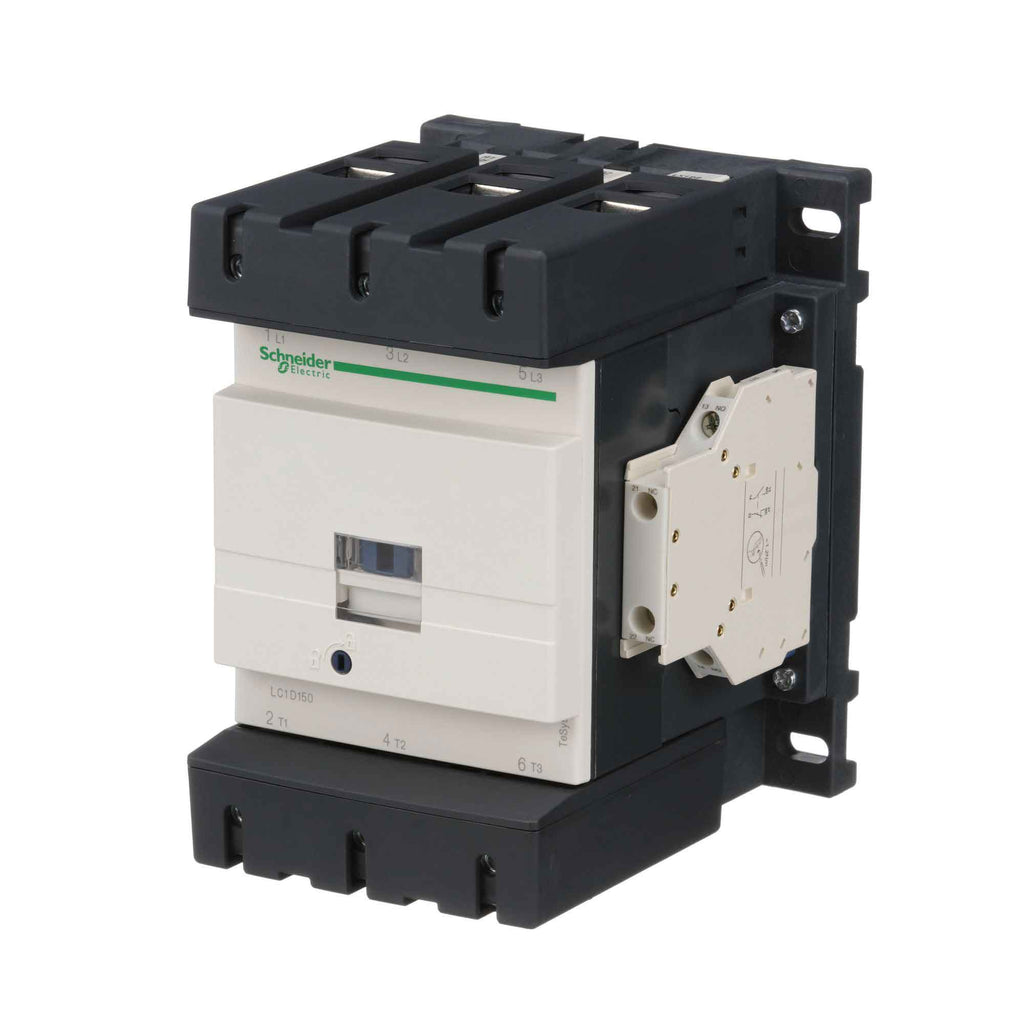

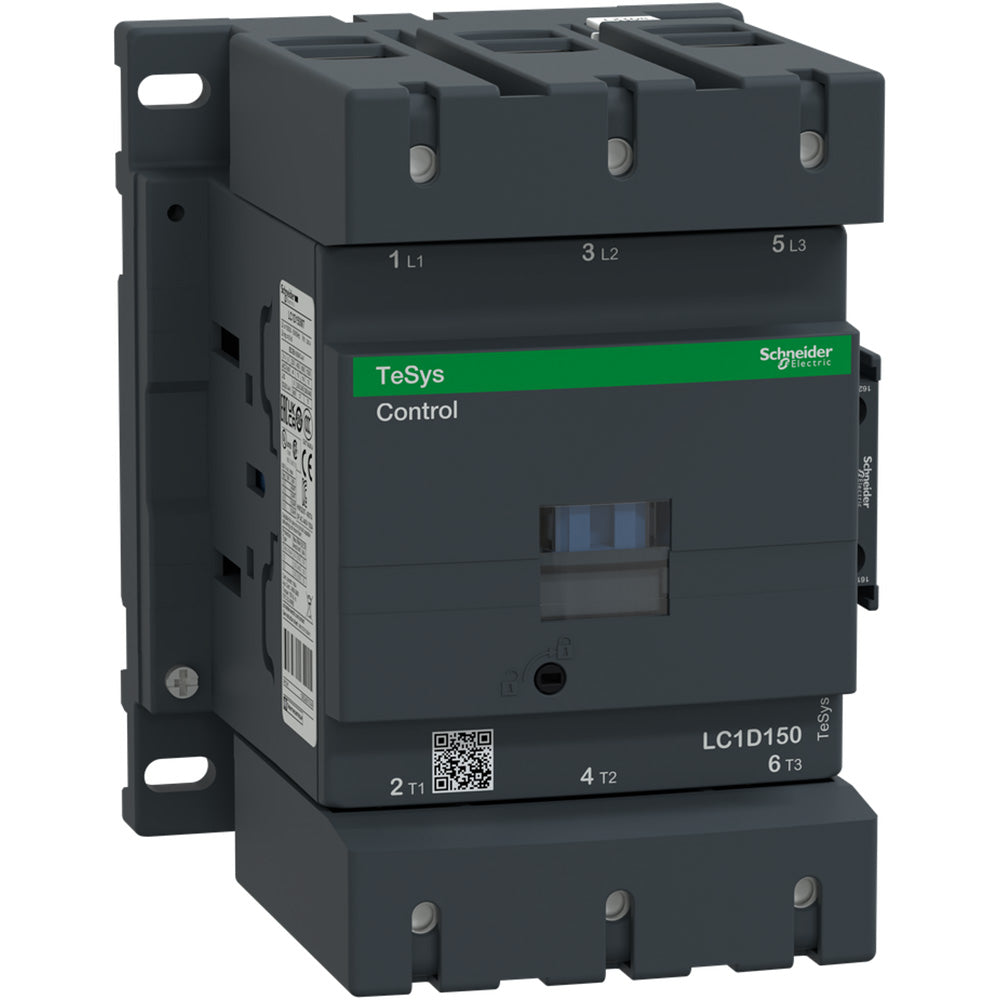

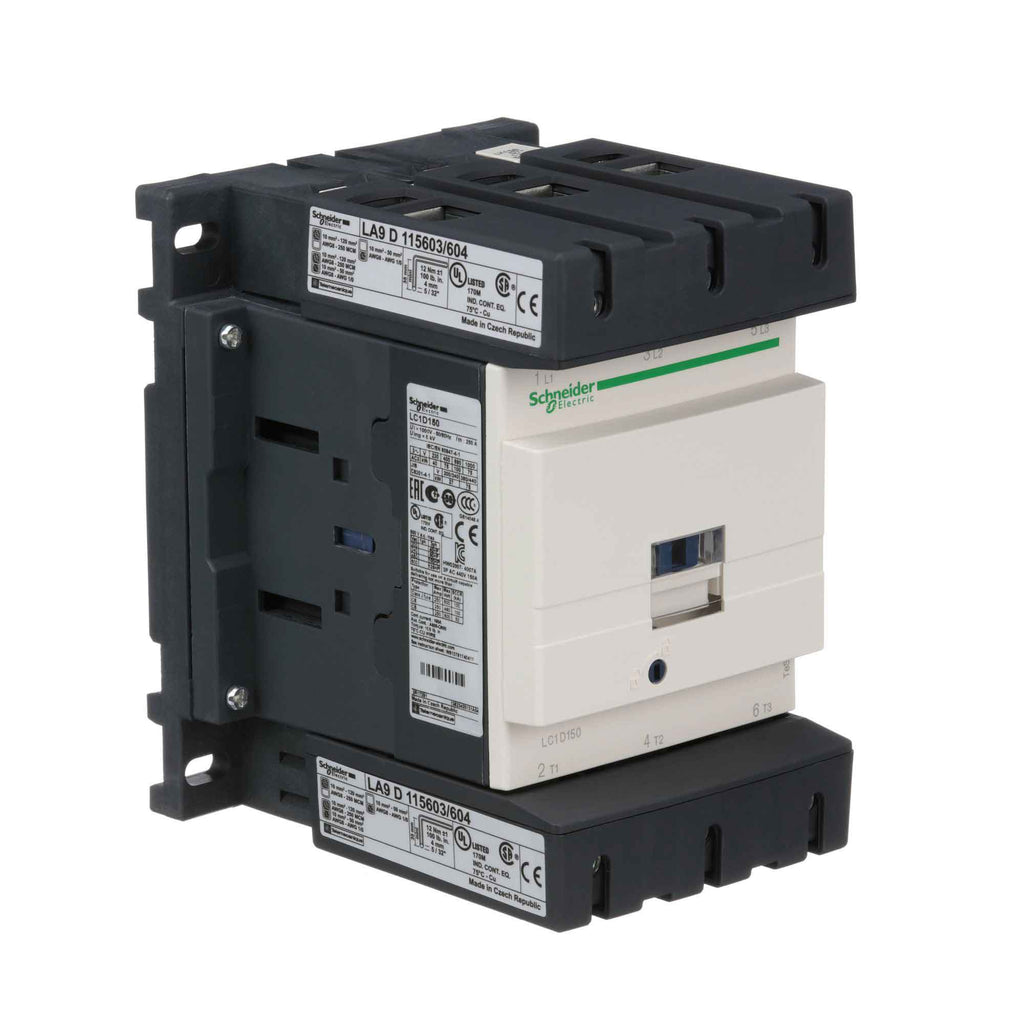

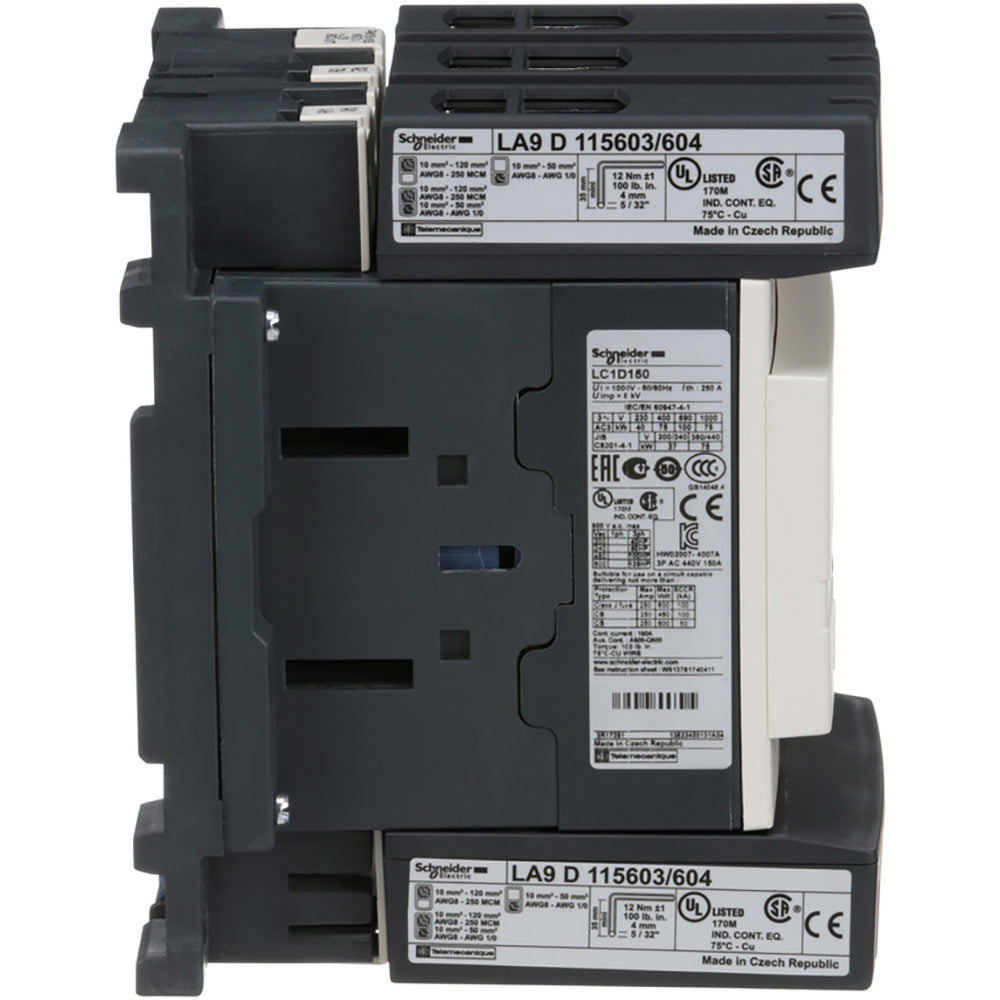

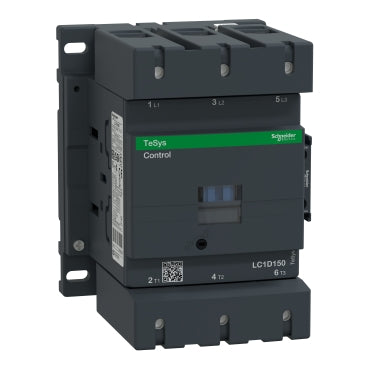

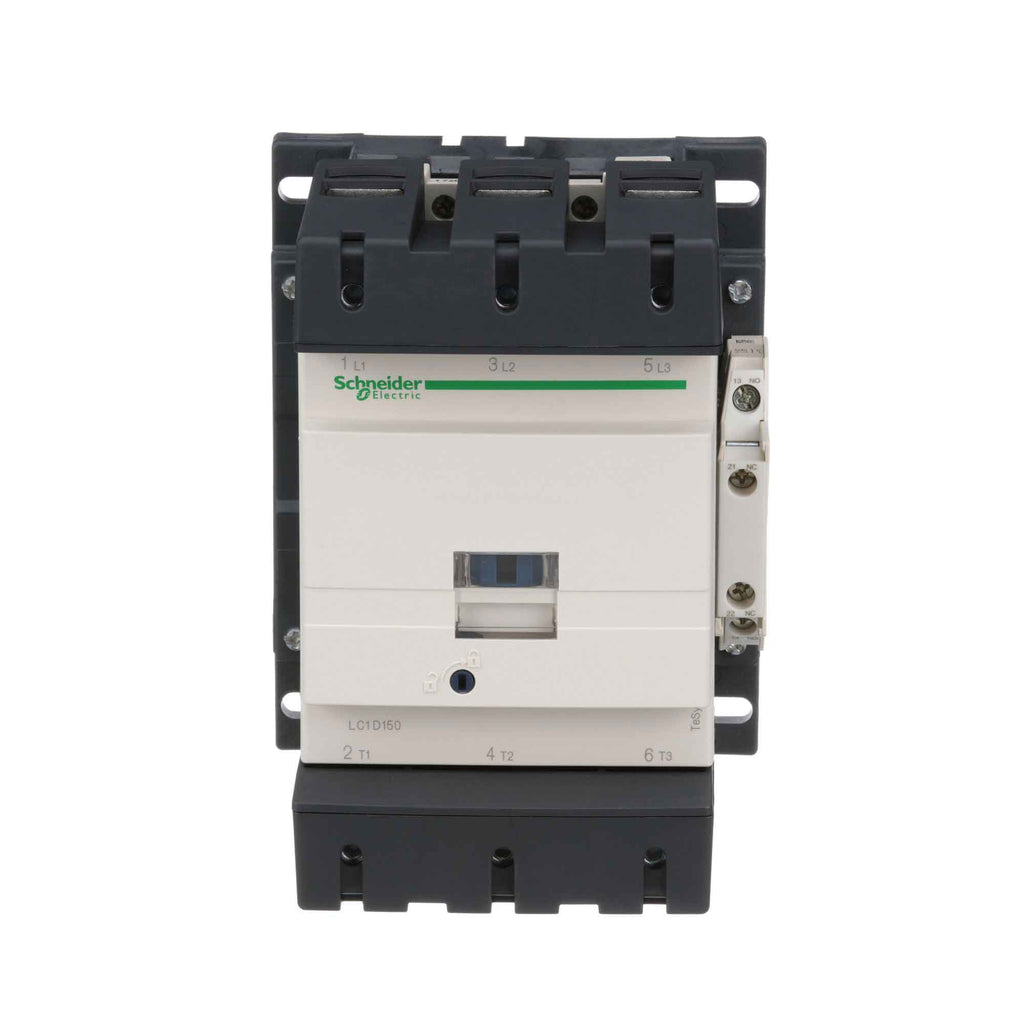

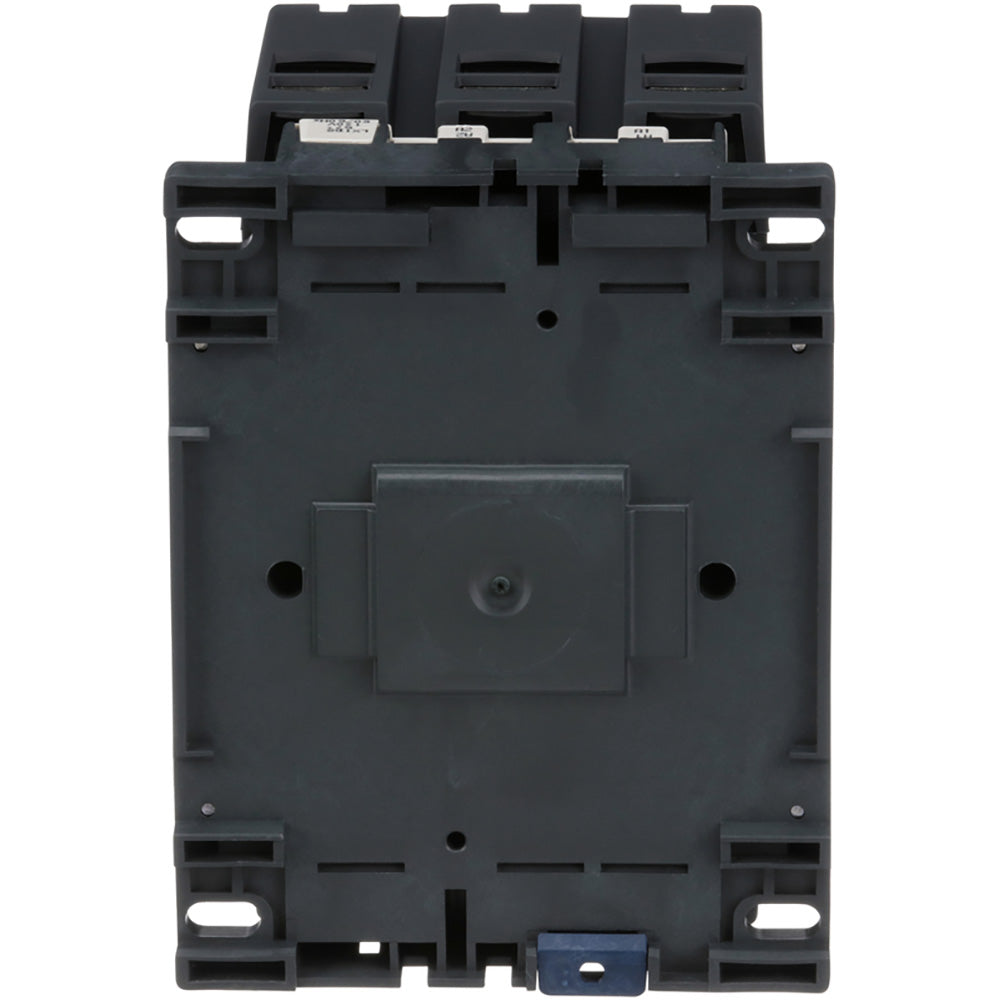

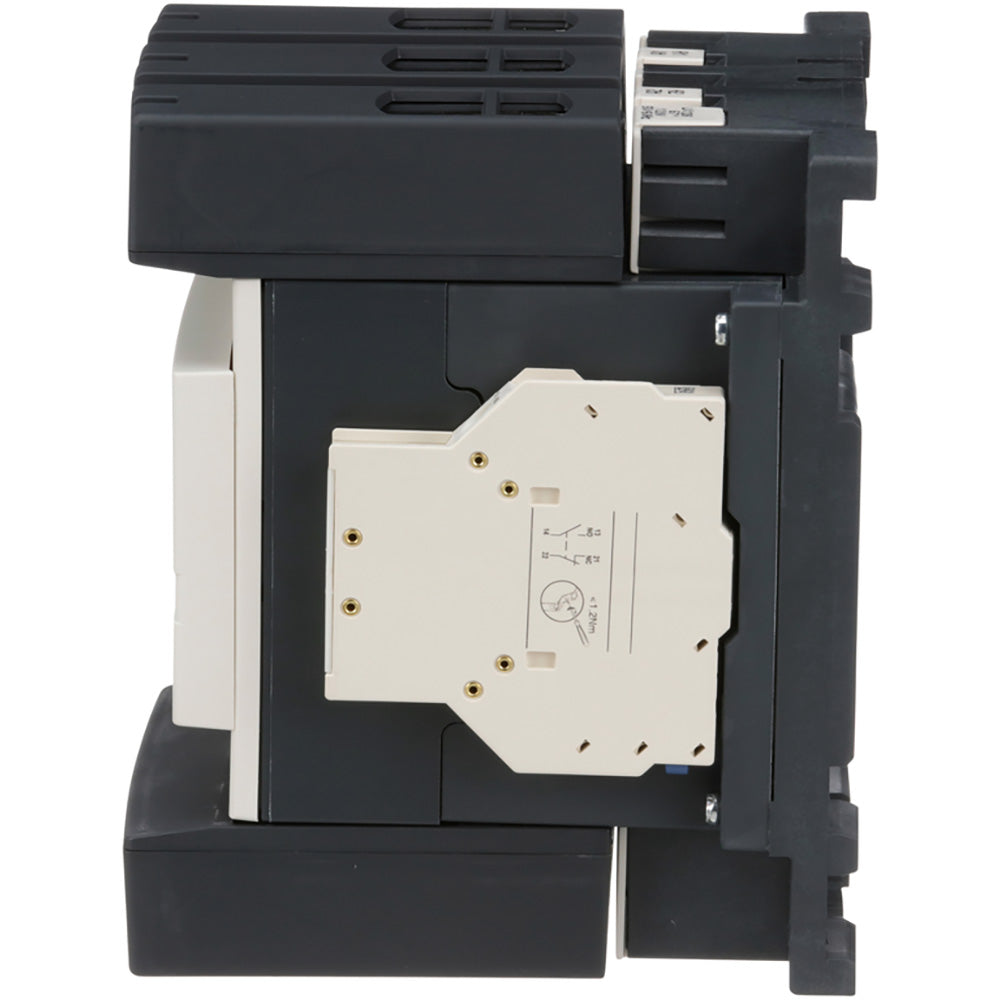

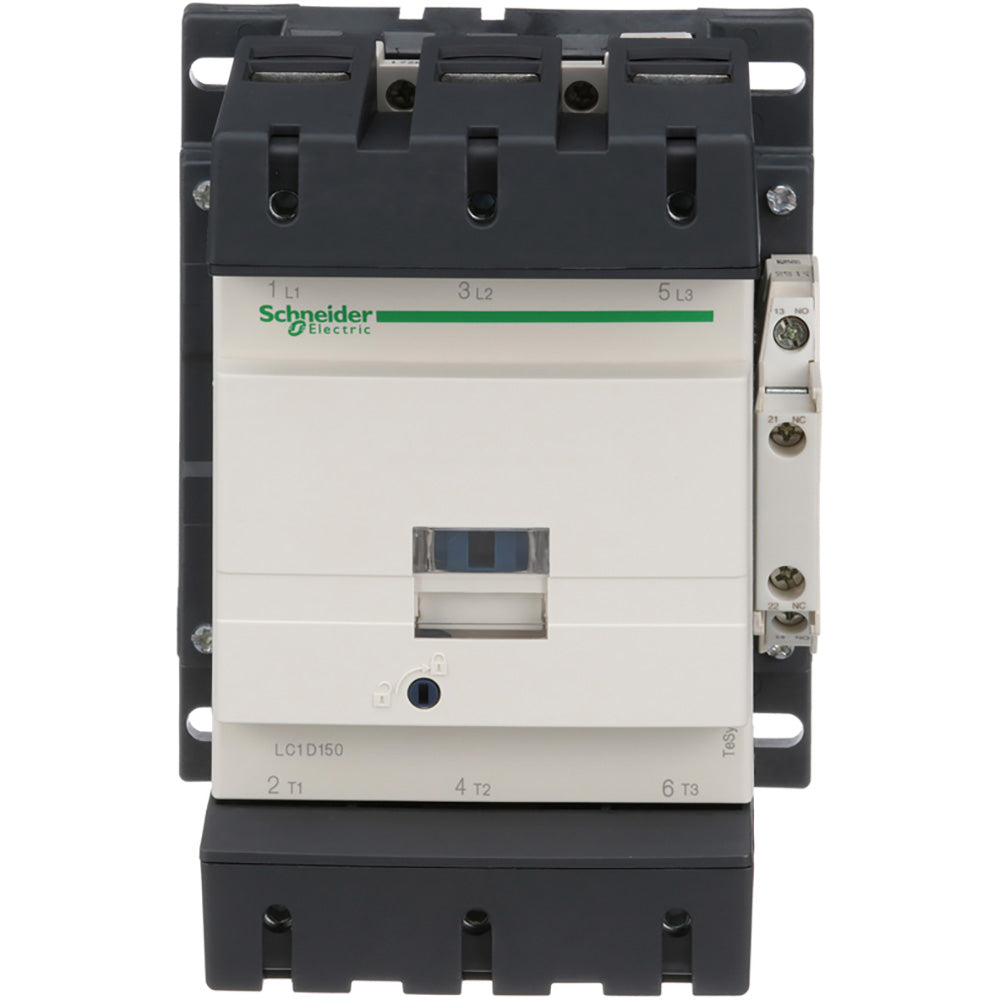

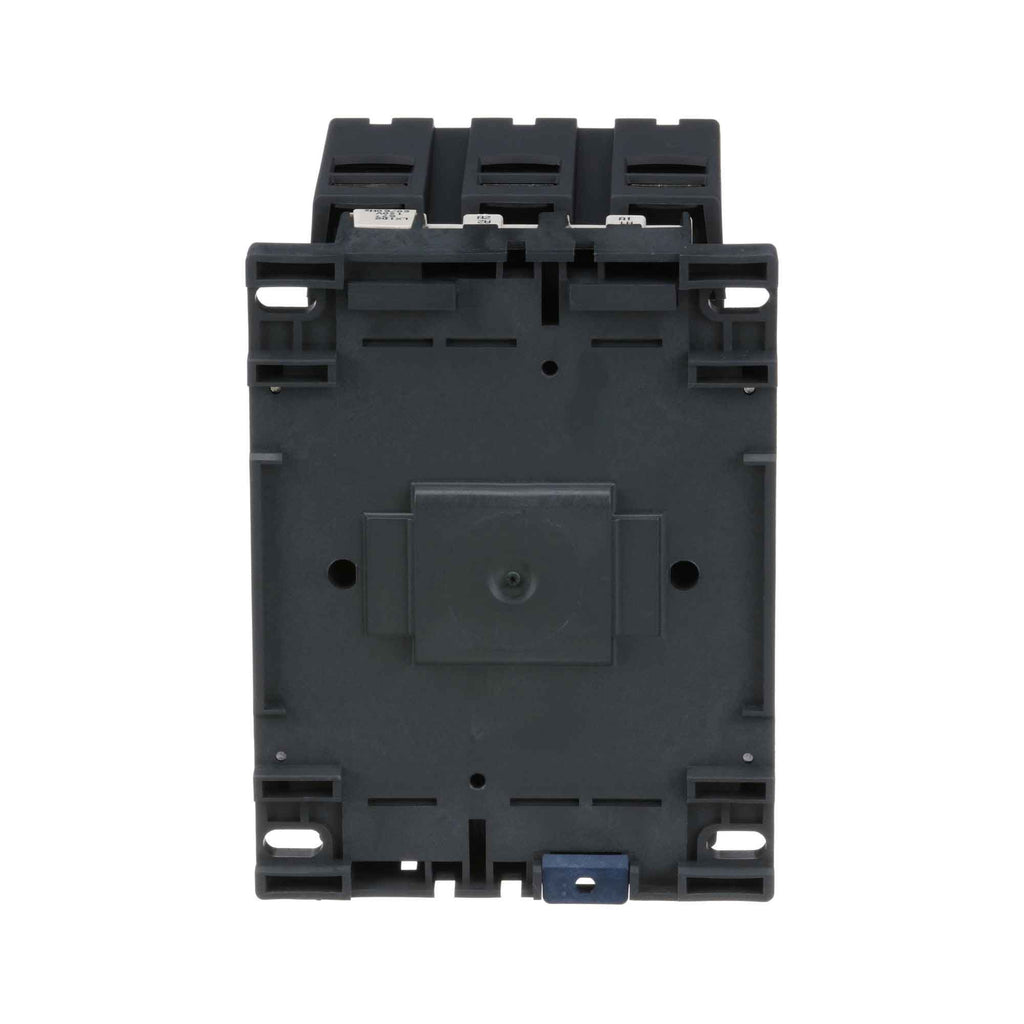

LC1D150G7 - Schneider Electric TeSys D 150A 3-Pole Motor Contactor 120V AC Coil 440V AC Power Circuit

LC1D150G7

LC1D150G7 is a Schneider Electric TeSys D motor contactor designed for motor control applications with a 150A rated current and 3 poles (3 NO contacts). It features a 120V AC 50/60 Hz coil and supports power circuits up to 440V AC and 1000V AC for different utilization categories.This contactor supports AC-1, AC-3, and AC-4 utilization categories with a rated operational current of 150A at 440V AC (AC-3) and a maximum interrupt rating of up to 200A at 440V AC. It is suitable for controlling motors up to 100 HP at 480V AC and offers reliable performance with screw clamp terminals and a compact design. The product is certified to multiple standards including UL 508, IEC 60947-4-1, CSA C22.2 No 14, and others, ensuring wide application and safety compliance.

Key Specifications
• Rated operational current: 150A (AC-3) at <= 440V AC
• Poles: 3 poles, 3 normally open (3 NO)
• Coil voltage: 120V AC, 50/60 Hz
• Power circuit voltage rating: up to 1000V AC, 25-400 Hz
• Motor power rating: up to 100 HP at 480V AC
• Utilization categories: AC-1, AC-3, AC-4
• Interrupt rating: up to 200A at 440V AC
• Mounting type: screw(more...)


  Additional Information

  This TeSys D IEC Contactor includes a 120 VAC coil.




  Specifications

  • Part Number: LC1D150G7
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : TeSys D
  • Type : LC1D
  • Voltage : 600
  • Amperage : 150
  • Phase : 3
  • Poles : 3
  • Horse Power : 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors-50 hp at 230/240 V AC 50/60 Hz for 3 phases motors-100 hp at 460/480 V AC 50/60 Hz for 3 phases motors-125 hp at 575/600 V AC 50/60 Hz for 3 phases motors
  • Aux Contacts : 3 NO
  • Coil Voltage Maximum : 120
  • Full Load Amps : Full Load Amps-Inductive 150A Full Load Amps-Resistive 200A
  • Coil Voltage Minimum : 120
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 785901214519
  • GTIN : 03389110527537
  • Country of Origin : Czechia
  • Dimensions : 4.33 in x 4.33 in
  • Weight : 5.485
  • Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
