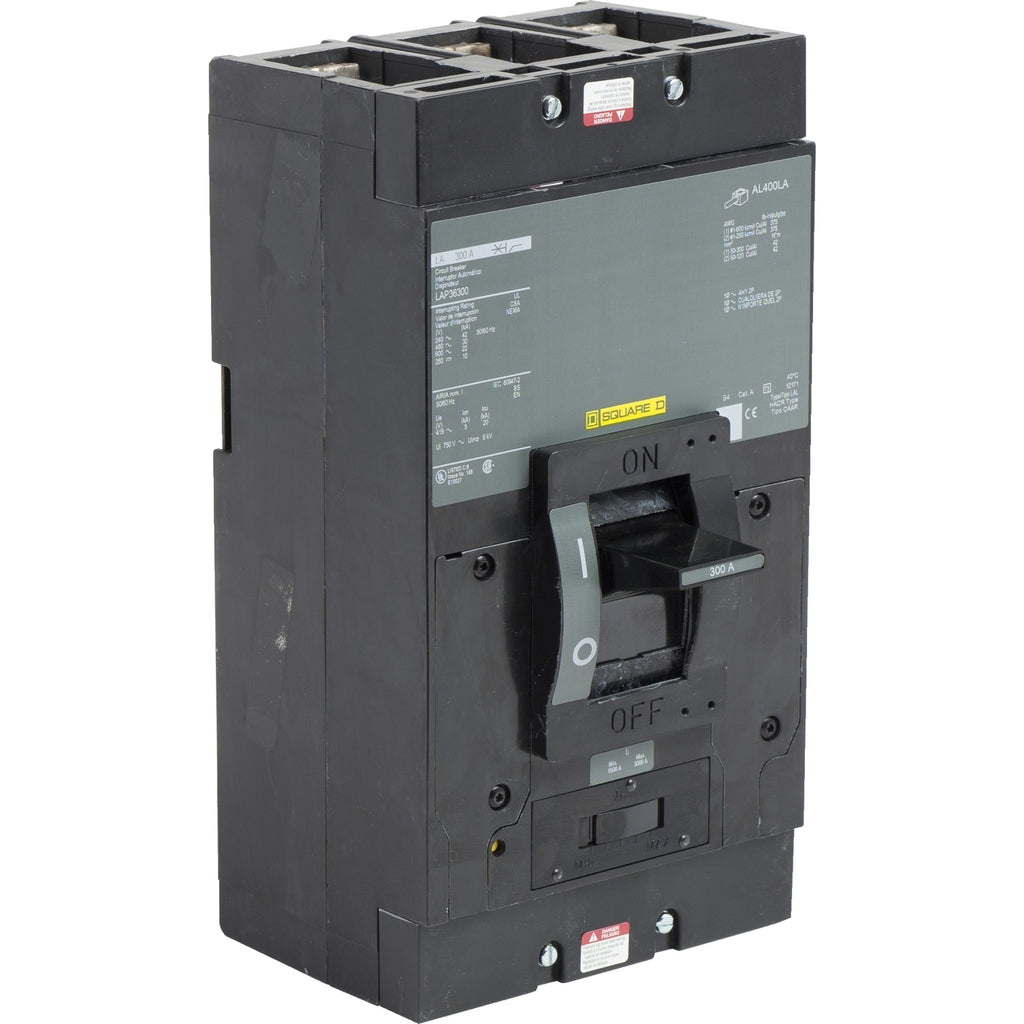

LAP363001127 - Square D 300A 600V 3-Pole I-Line Thermal Magnetic Circuit Breaker

LAP363001127

LAP363001127 is a Square D 300 Amp, 600 Volt, 3-pole I-Line thermal magnetic molded case circuit breaker designed for reliable overload and short circuit protection.This circuit breaker features a thermal-magnetic trip unit with long-time and instantaneous trip functions, suitable for 3-phase ABC configuration. It has a 30kA interrupting rating at 480V and a 22kA interrupting rating at 600VAC, with I-Line style plug-in mounting and J-frame construction. Certified to UL 489, CSA, and IEC standards, it provides robust protection with a breaking capacity code A and magnetic hold current of 1500 Amps.

Key Specifications
• Amperage: 300A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 30kA @ 480V, 22kA @ 600VAC
• Frame Type: J-Frame
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Phase: 3 (ABC)
• Certifications: UL 489, CSA, IEC
• Dimensions: 11" H x 6" W x 5.84" D
• Weight: 18.52 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LAP363001127
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAP Series
• Type : LAP
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• Weight : 20
