Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LAL3640035M1021

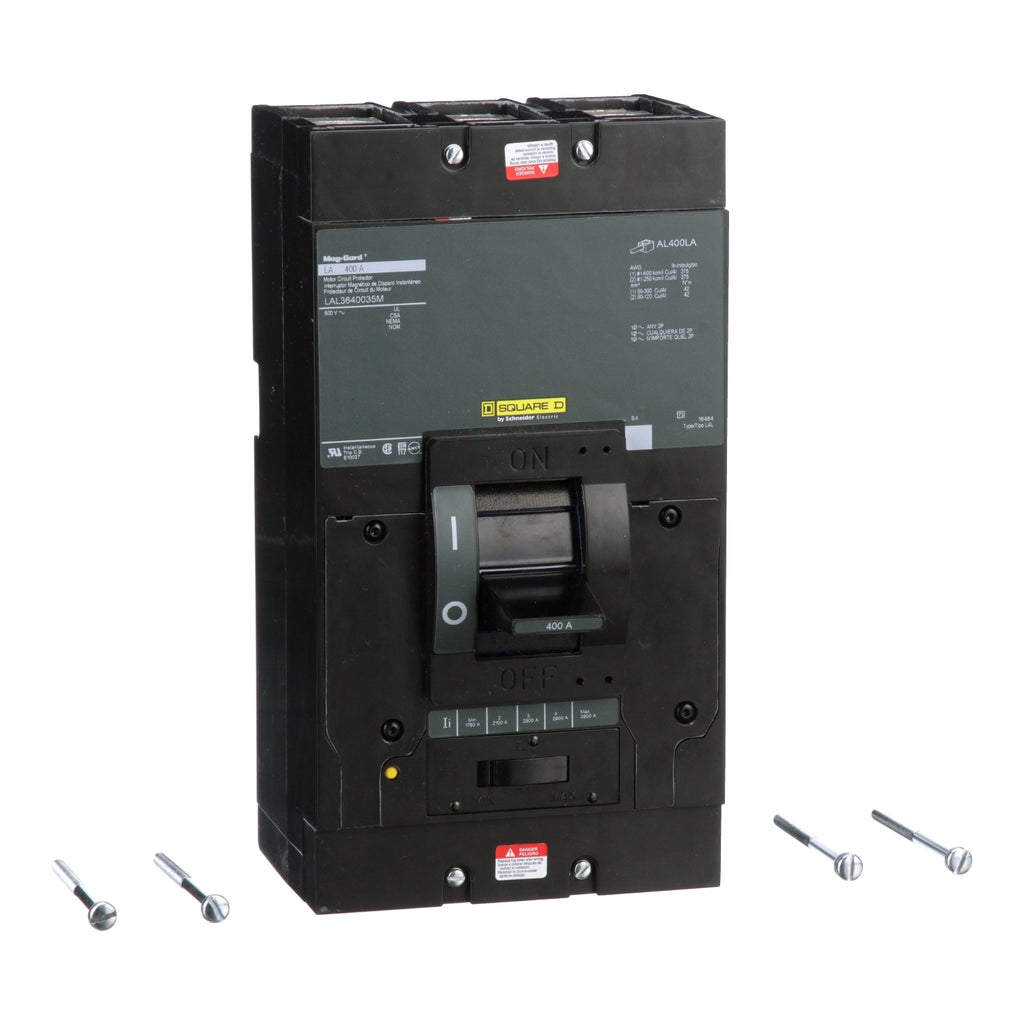

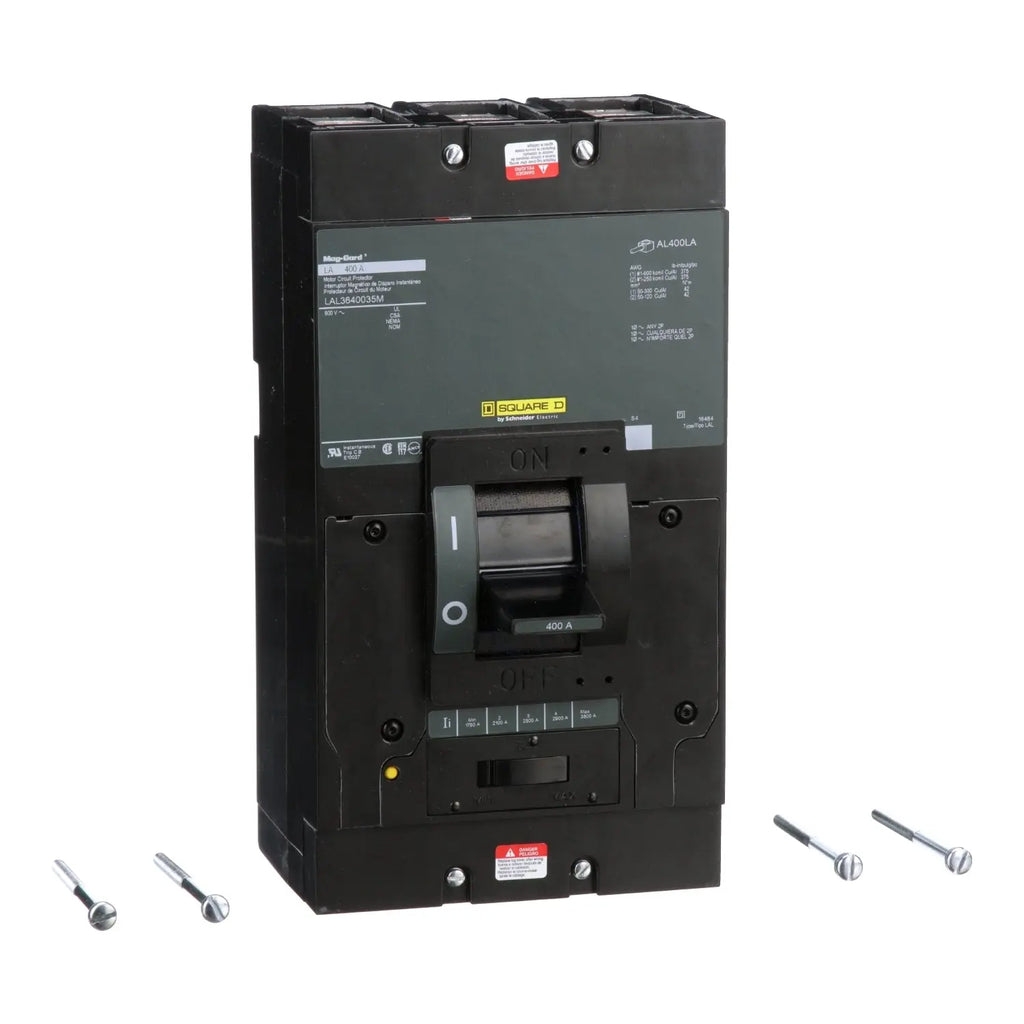

LAL3640035M1021 is a 3 pole, 400 amp, 600VAC molded case circuit breaker from Square D's LAL series designed for reliable magnetic protection.This circuit breaker features a 3 pole design with a 600VAC and 250VDC voltage rating, 400 amp current capacity, and a 30kA interrupting rating at 480V. It includes instantaneous magnetic trip functions and unit mounting type with feed-thru connection. The breaker is UL listed and RoHS and REACh compliant, suitable for industrial and commercial power distribution applications.
- Manufacturer: Square D
- Series/Frame: LAL
- Amperage: 400A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Mounting Type: Unit
- Interrupting Rating: 30kAIC at 480V
- Trip Unit: Magnetic Instantaneous
- Connection Type: Feed-Thru
- Terminal Connection: Line and Load Side Lug
- Certifications: UL, RoHS, REACh
Additional Information
complete with 24Vac shunt trip
Specifications
- Part Number: LAL3640035M1021
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : Instantaneous Trip
- Protection : Magnetic Only
Product Data
- UPC : 785901865148
- Country of Origin : Mexico
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 16.766
