Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LAL3640031M

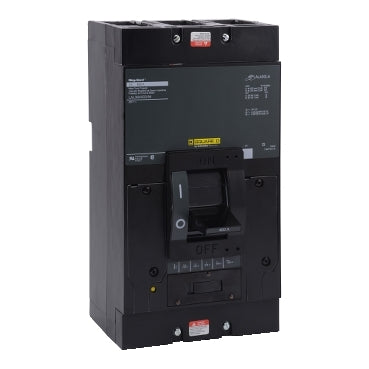

LAL3640031M is a Square D 3 pole thermal magnetic molded case circuit breaker with a 400 amp rating and 600VAC/250VDC voltage capability.This LAL series circuit breaker features a unit mounting type, instantaneous trip functions, and a high interrupting rating suitable for industrial motor circuit protection. It is UL, CSA, and IEC approved, designed for use with Type BR load centers, and supports line and load side lug connections.
- Manufacturer: Square D
- Series/Frame: LAL
- Amperage: 400A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Mounting Type: Unit
- Interrupt Rating: 42kA at 240VAC, 30kA at 480VAC, 22kA at 600VAC, 10kA at 125VDC/250VDC
- Trip Unit: Thermal Magnetic with Instantaneous Trip
- Terminal Connection: Line and Load Side Lug
- Wire Gauge Range: AWG 1 to 600 kcmil Aluminum/Copper
- Certifications: UL, CSA, IEC, RoHS
Specifications
- Part Number: LAL3640031M
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Protection : Magnetic Only
Product Data
- UPC : 785901358381
- GTIN : 00785901358381
- Country of Origin : Mexico
- Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
- Weight : 7.49
- Certification : IEC, UL, CSA
- Wire Size : AWG 1 to 600KCmil Aluminum/Copper, AWG 1 to 250KCmil Aluminum/Copper
