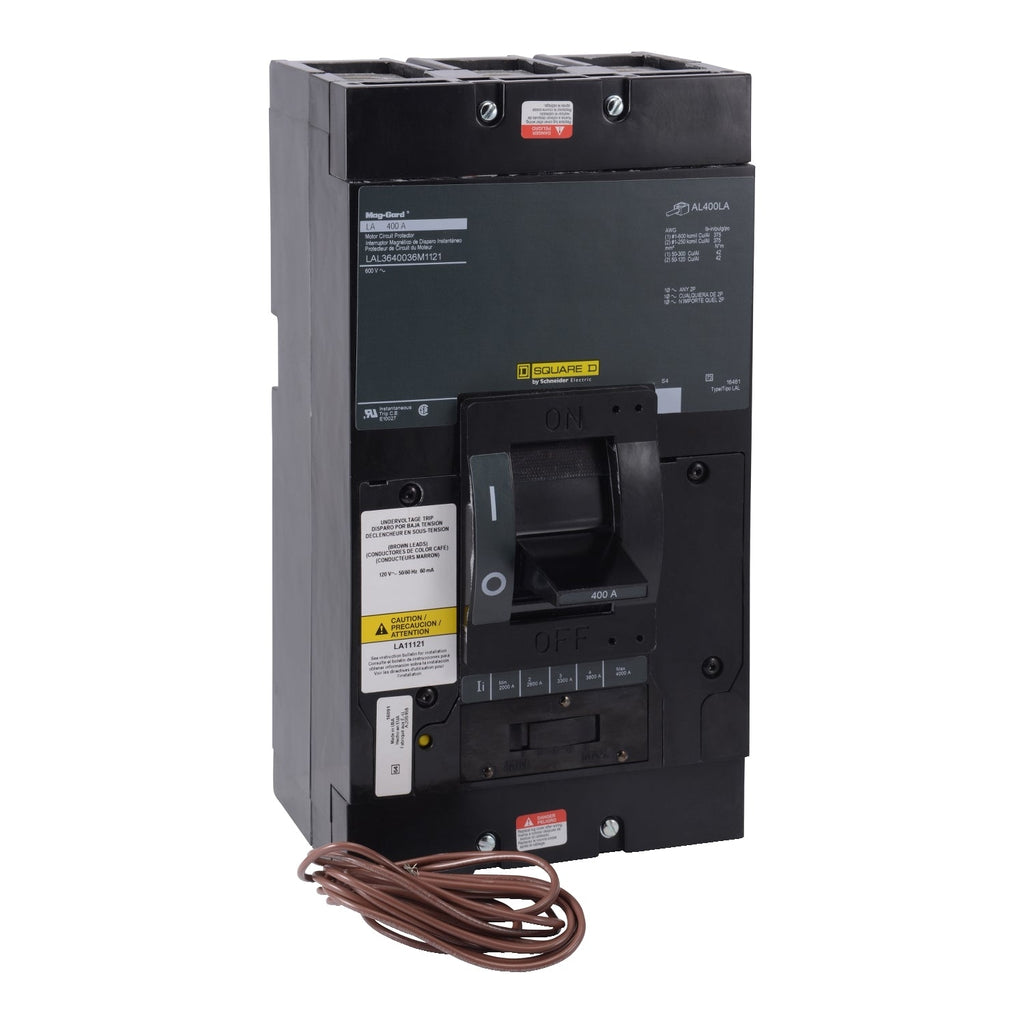

LAL3640022M - Square D 400A 600V 3-Pole LAL Frame Circuit Breaker Magnetic Trip

LAL3640022M

LAL3640022M is a 400 amp, 600 volt, 3-pole circuit breaker from Square D designed for reliable magnetic trip protection.This Square D LAL3640022M circuit breaker features a 3-pole configuration with a 400 amp line rated current and a magnetic trip unit adjustable from 500 to 1000 amps. It is a unit mount type with an LAL frame, rated for 600 VAC at 50/60 Hz, and offers a 22kA interrupt rating at 480V AC. The breaker includes line and load lug terminals and is UL, CSA, and CE certified for safety and performance.

Key Specifications
• Amperage: 400 A
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: LAL
• Trip Unit: Magnetic, adjustable 500-1000 A
• Mounting Type: Unit mount
• Interrupt Rating: 22kA at 480V AC
• Terminal Type: Line and load lugs
• Certifications: UL, CSA, CE
• Phase: 3
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LAL3640022M
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : Instantaneous Trip
• Protection : Magnetic Only



Product Data

• UPC : 078590184837
• GTIN : 00785901848370
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.51
• Certification : IEC, UL, CSA
