LAL364001616 - Square D 400A 600V 3 Pole LAL Series Molded Case Circuit Breaker Thermal Magnetic

LAL364001616

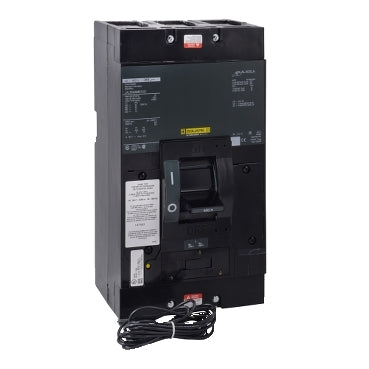

LAL364001616 is a Square D LAL Series molded case circuit breaker rated for 400 amps, 600 volts, and 3 poles with thermal magnetic trip technology.

This circuit breaker features a thermal magnetic trip unit providing reliable overload and short circuit protection. It has a 3-pole configuration suitable for three-phase applications and is designed for unit mounting with line and load lug connections. The breaker has an interrupting rating of 22kA at 600VAC and 10kA at 250VDC, making it suitable for a variety of industrial and commercial power distribution needs. It is built on the L frame and includes adjustable trip settings for enhanced protection flexibility.

Key Specifications
• Amperage: 400A
• Voltage Rating: 600VAC / 250VDC
• Number of Poles: 3
• Interrupt Rating: 22kA at 600VAC, 10kA at 250VDC
• Trip Unit: Thermal Magnetic
• Frame Type: L Frame
• Mounting Type: Unit Mount
• Connection Type: Line and Load Lugs
• Dimensions: Approximately 11" H x 6" W x 5.84" D
• Series: LAL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL364001616
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901459705
• GTIN : 00785901459705
• Dimensions : Height 11 in (279.40 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 20
