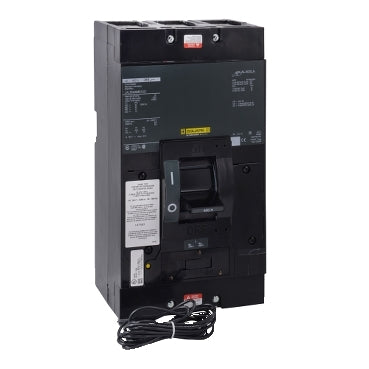

LAL364001212 - Square D 400A 600V 3-Pole Molded Case Circuit Breaker, 30kAIC @480V, LAL Series, Thermal Magnetic Trip, Feed-Thru, Aux Switch

LAL364001212

LAL364001212 is a Square D molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This 3-pole, 400A, 600VAC breaker features a thermal magnetic trip unit, adjustable long time and instantaneous trip functions, and an auxiliary switch. It is part of the LAL series, offers a feed-thru design with line and load side lug terminals, and is suitable for unit mounting. The breaker meets California Proposition 65 standards and is engineered for reliable performance in demanding environments.

Key Specifications

• Amperage: 400A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Unit mount
• Interrupt Rating: 42kA @240VAC, 30kA @480VAC, 22kA @600VAC, 10kA @125-250VDC
• Series/Frame: LAL
• Trip Unit: Thermal magnetic, adjustable
• Certifications: California Proposition 65
• Feed-Thru Design: Yes
• Auxiliary Switch: Included
• Terminals: Line and load side lug
• Application: Commercial, industrial power distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL364001212
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 078590116616
• GTIN : 00785901166160
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.766
