Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LAL364001029

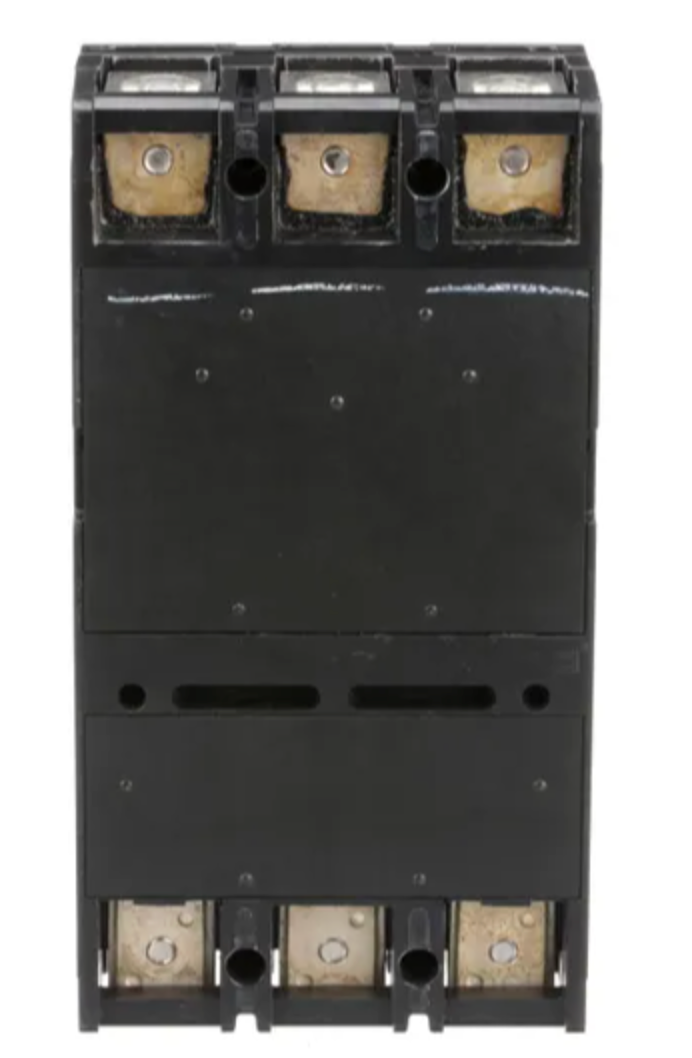

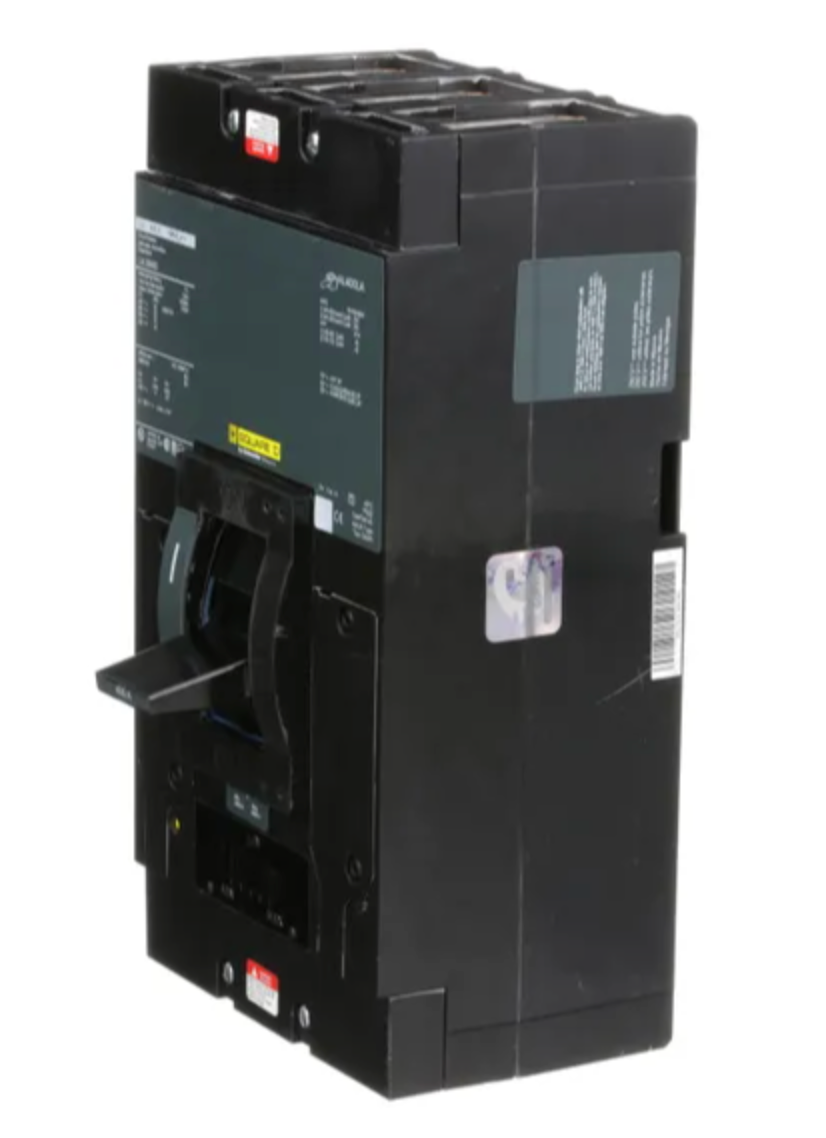

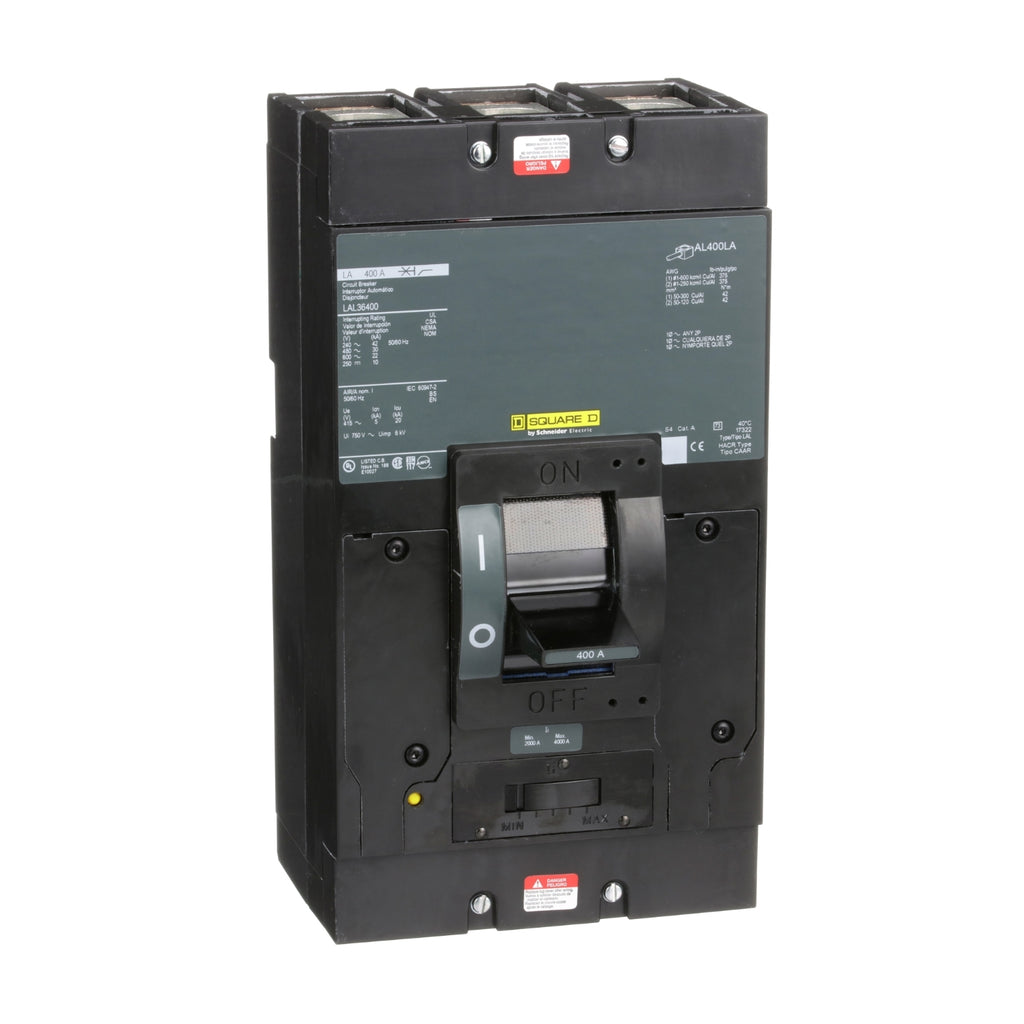

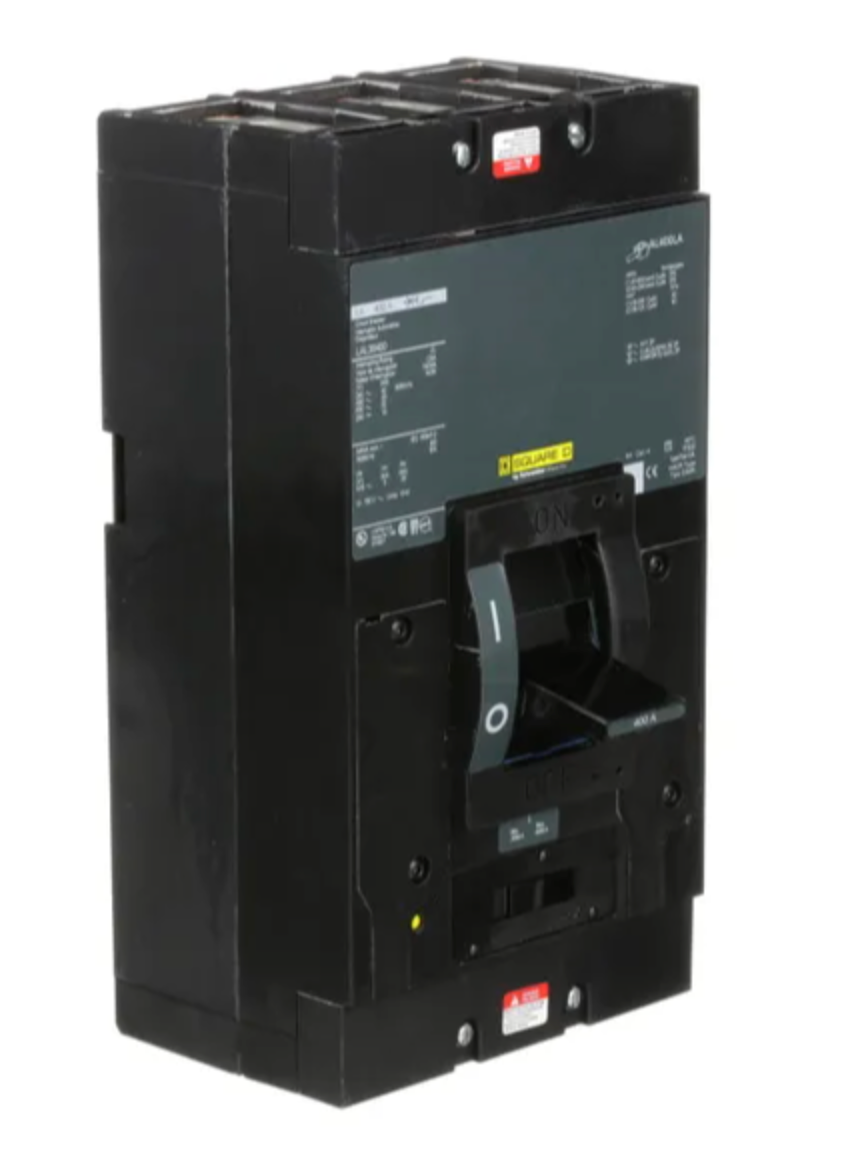

LAL364001029 is a Square D 400 Amp, 3-pole I-Line circuit breaker designed for reliable overload and short circuit protection in industrial and commercial applications.This thermal magnetic molded case circuit breaker features a 600VAC voltage rating and a 22kA interrupt rating at 600VAC, suitable for heavy-duty power distribution. It mounts in an I-Line panel and complies with UL 489, CSA, and IEC certifications, ensuring safety and performance standards. The breaker provides automatic trip protection with a thermal-magnetic trip unit.
- Amperage: 400A
- Voltage Rating: 600VAC
- Poles: 3
- Mounting Type: I-Line
- Interrupt Rating: 22kA @ 600VAC
- Trip Unit: Thermal Magnetic
- Certifications: UL 489, CSA, IEC
- Frame/Series: LAL
- Construction: Molded Case
- Application: Industrial/Commercial Power Distribution
Additional Information
complete with 125Vdc shunt trip
Specifications
- Part Number: LAL364001029
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 20
