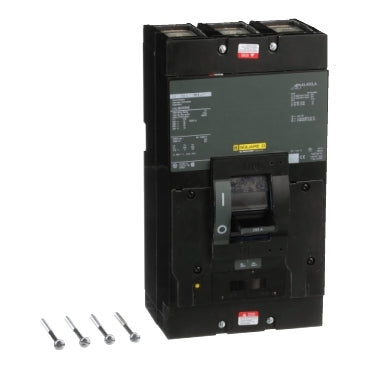

LAL36250MB - Square D LAL 3 Pole 250A 600V Molded Case Circuit Breaker

LAL36250MB

LAL36250MB is a 3 pole, 250A, 600V molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This Square D LAL series breaker features thermal magnetic trip technology, adjustable trip settings, and is suitable for I-Line panelboards and switchboards. It provides manual and automatic interruption for overload and short circuit conditions, with push-to-trip functionality for safe operation. The breaker is constructed for MB style mounting and includes line and load side lug terminals for flexible installation.

• Part Number: LAL36250MB
• Manufacturer: Square D
• Series/Frame: LAL
• Poles: 3
• Amperage: 250A
• Voltage Rating: 600V AC / 250V DC
• Interrupt Rating: 42kA @ 240VAC, 30kA @ 480VAC
• Mounting Type: MB Style, I-Line
• Terminal Type: Line & Load Side Lug
• Trip Unit: Thermal Magnetic, Adjustable
• Certifications: UL 489, CSA C22.2 No. 5-02, RoHS, CE, CCC, NEMA AB1
• Standards: IEC 60947-2, NMX J-266, PROP65

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL36250MB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip Functions
• Terminal Connection : Lug
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901005544
• GTIN : 00785901005544
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.151
• Standards : IEC, CSA, UL Listed
• Certification : IEC, CSA, UL Listed
• Wire Size : AWG 1, 600 kcmil aluminium/copper)1, AWG 1, 250 kcmil aluminium/copper)2
