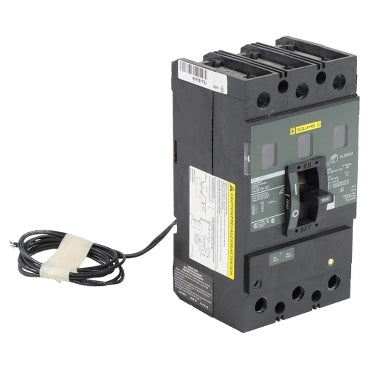

LAL362501021 - Square D LA Frame 250A 3-Pole 600VAC Molded Case Circuit Breaker

LAL362501021

LAL362501021 is a Square D LA frame molded case circuit breaker rated for 250 amperes at 600 volts AC with 3-pole configuration and thermal magnetic trip unit. This unit mount breaker features flexible platform design for various mounting and termination options, with push-to-trip manual operation allowing safe manual tripping without exposure to live parts. The breaker contains thermal sensing for overload protection and magnetic sensing for short circuit protection in each pole, delivering reliable performance for industrial and commercial power distribution applications. Key Specifications

• Part Number: LAL362501021
• Manufacturer: Square D
• Amperage Rating: 250 A
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 3
• Frame Type: LA (L Frame)
• Trip Unit: Thermal Magnetic with Shunt Trip
• Interrupt Rating: 42 kA at 240 VAC, 30 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125/250 VDC
• Mounting: Unit Mount
• Frequency: 50/60 Hz
• Dimensions: 11 in H x 6 in W x 5.84 in D
• Wire Size: 1 AWG to 600 kcmil Cu, 1 AWG to 250 kcmil Al
• Certifications: UL, CSA, IEC Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120/240Vac shunt trip

Specifications

• Part Number: LAL362501021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901339465
• GTIN : 00785901339465
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.766
