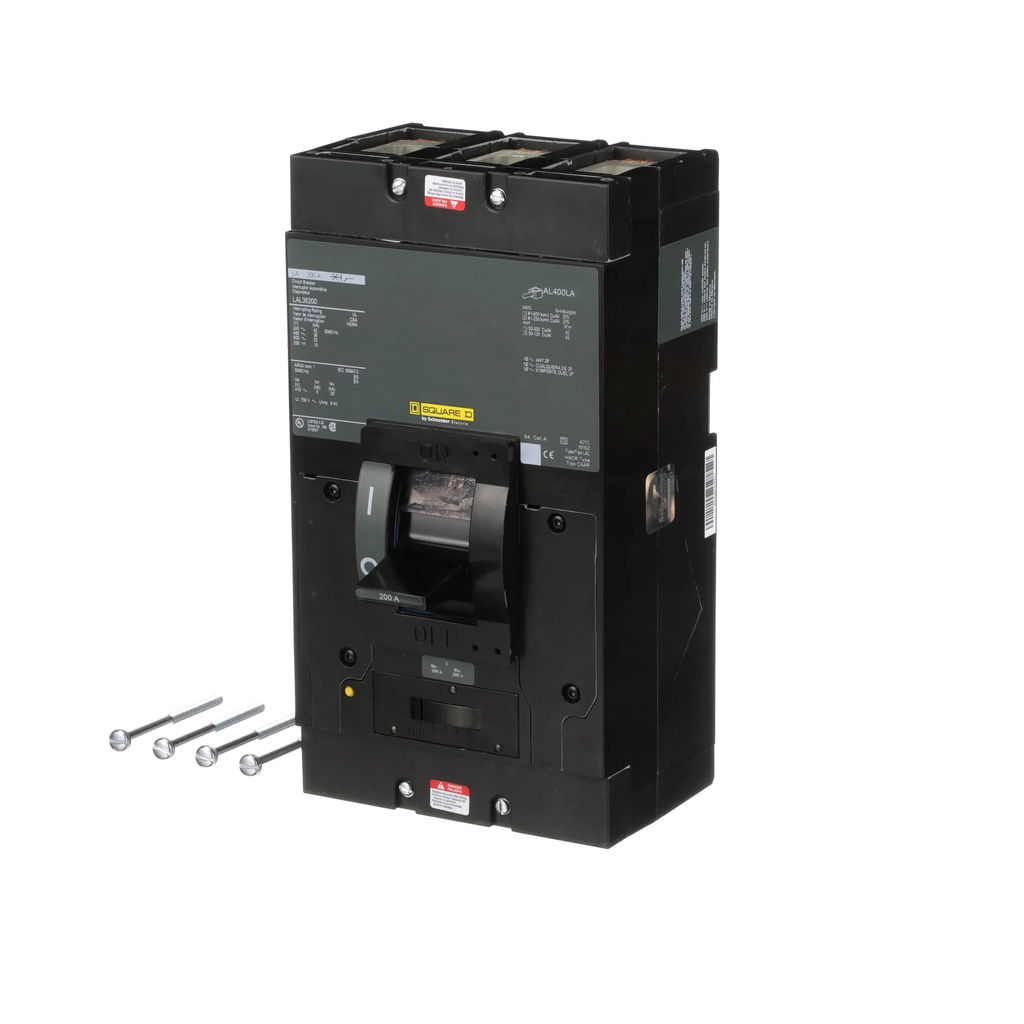

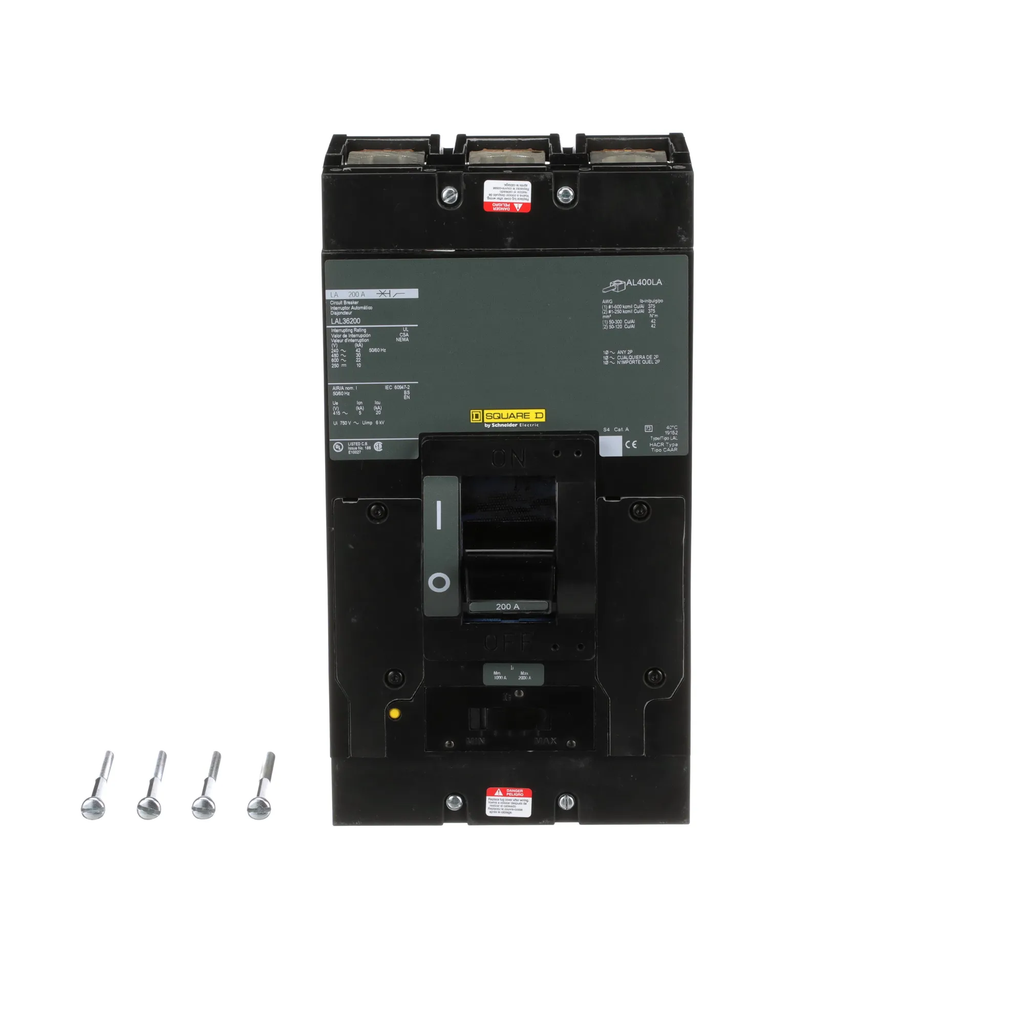

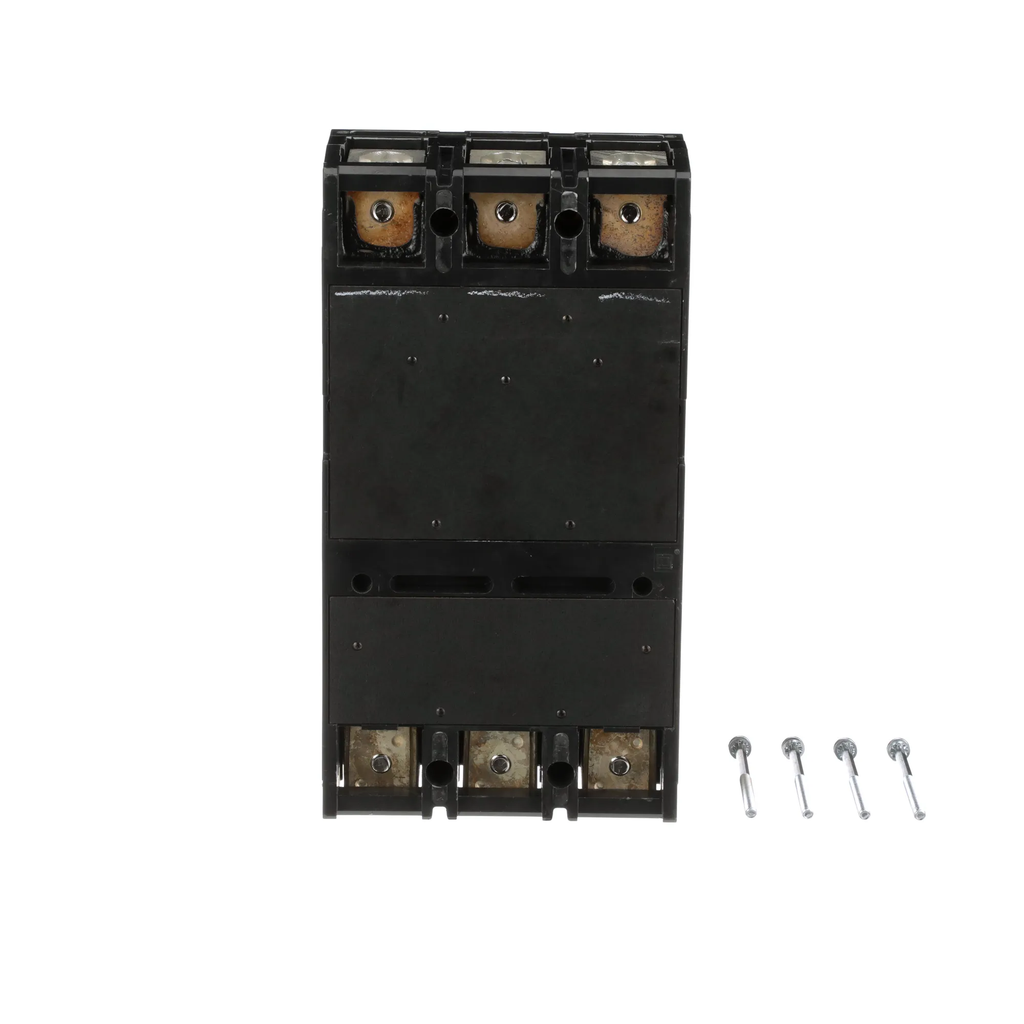

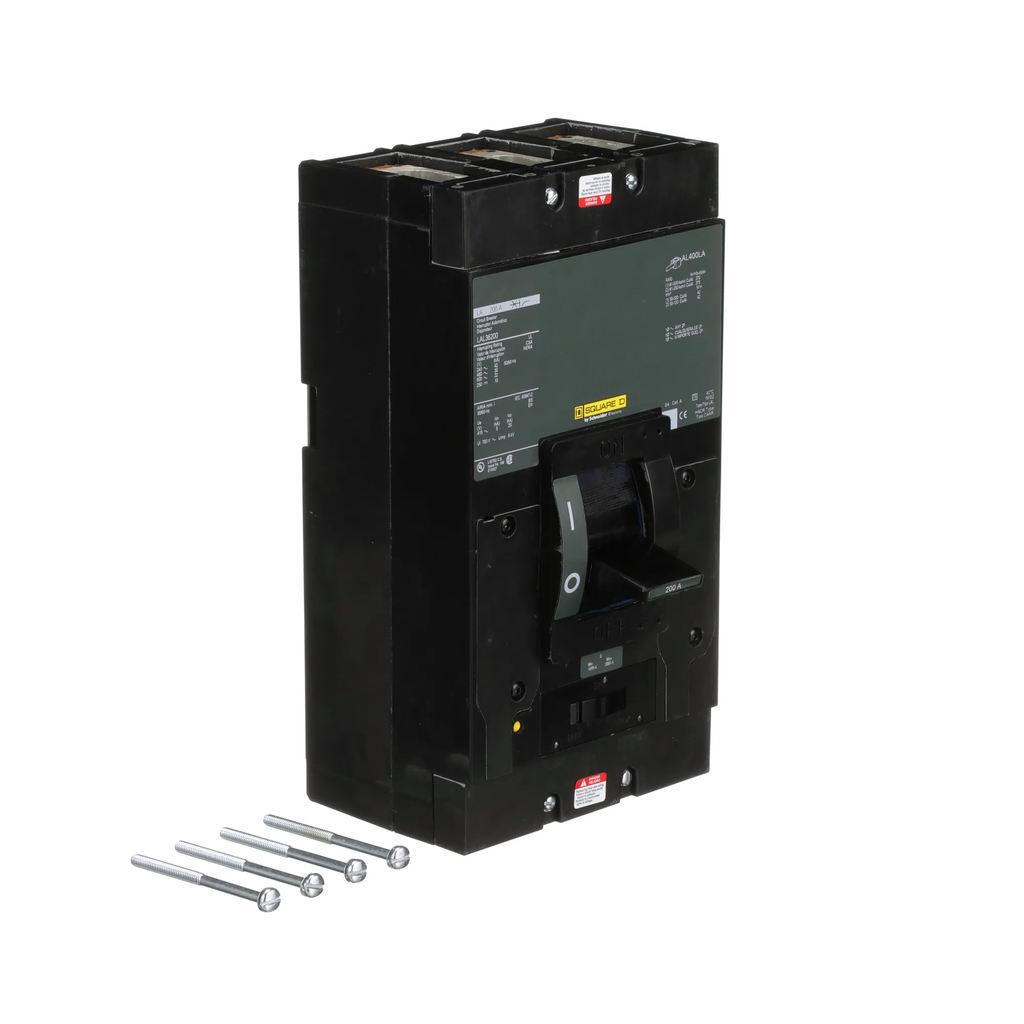

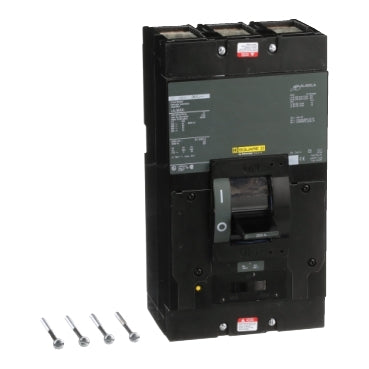

LAL36200 - Square D 200A 600V 3-Pole Molded Case Circuit Breaker Bolt-On Mount

LAL36200

LAL36200 is a 200 Amp, 600 Volt, 3-pole molded case circuit breaker from Square D designed for bolt-on mounting.This thermal magnetic breaker features a 22kA interrupt rating at 600VAC, manual trip, and is UL Listed, CE and CSA certified.

• Amperage: 200A
• Voltage: 600VAC / 250VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA at 600VAC, 42kA at 240VAC
• Trip Unit: Thermal Magnetic
• Series/Frame: LAL
• Approvals: UL Listed, CE, CSA Certified
• Phase: 3
• Feed-Thru Connection
• Manual and Push-to-Trip Function

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LAL36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LAL Series
• Type : LAL
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901368052
• GTIN : 00785901368052
• Country of Origin : Mexico

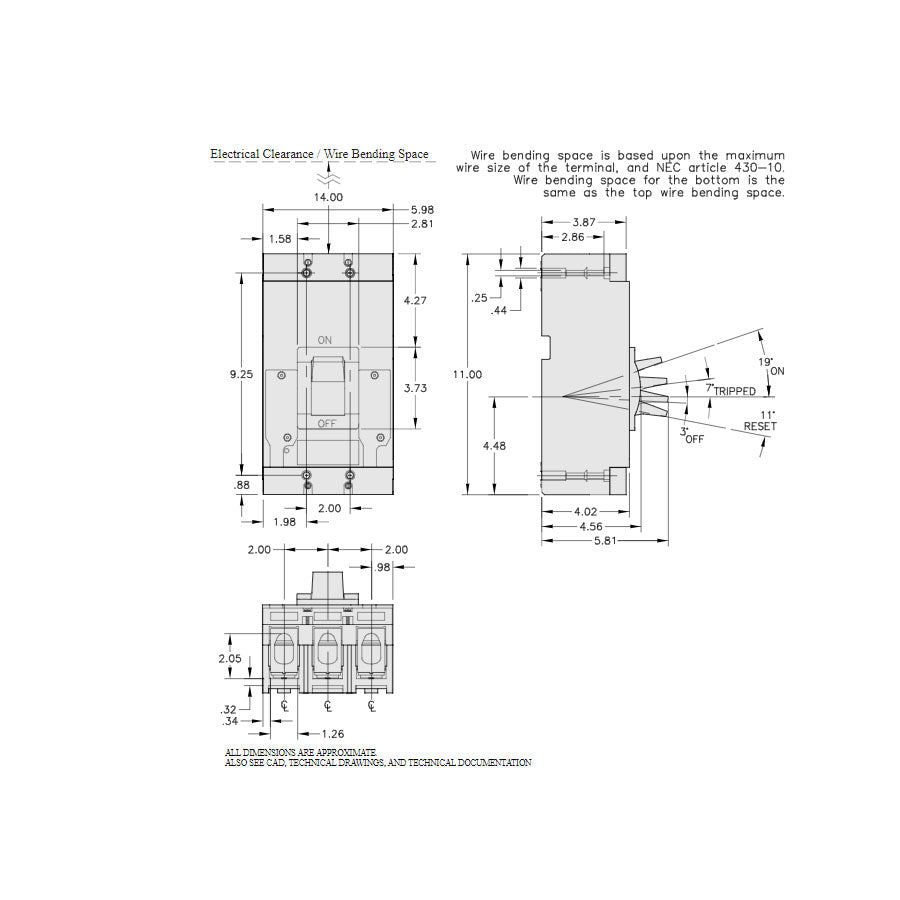

• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.05
• Panel Type : Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
• Standards : CSA, IEC, UL Listed
• Certification : CSA, IEC, UL Listed
