Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LAL361751021

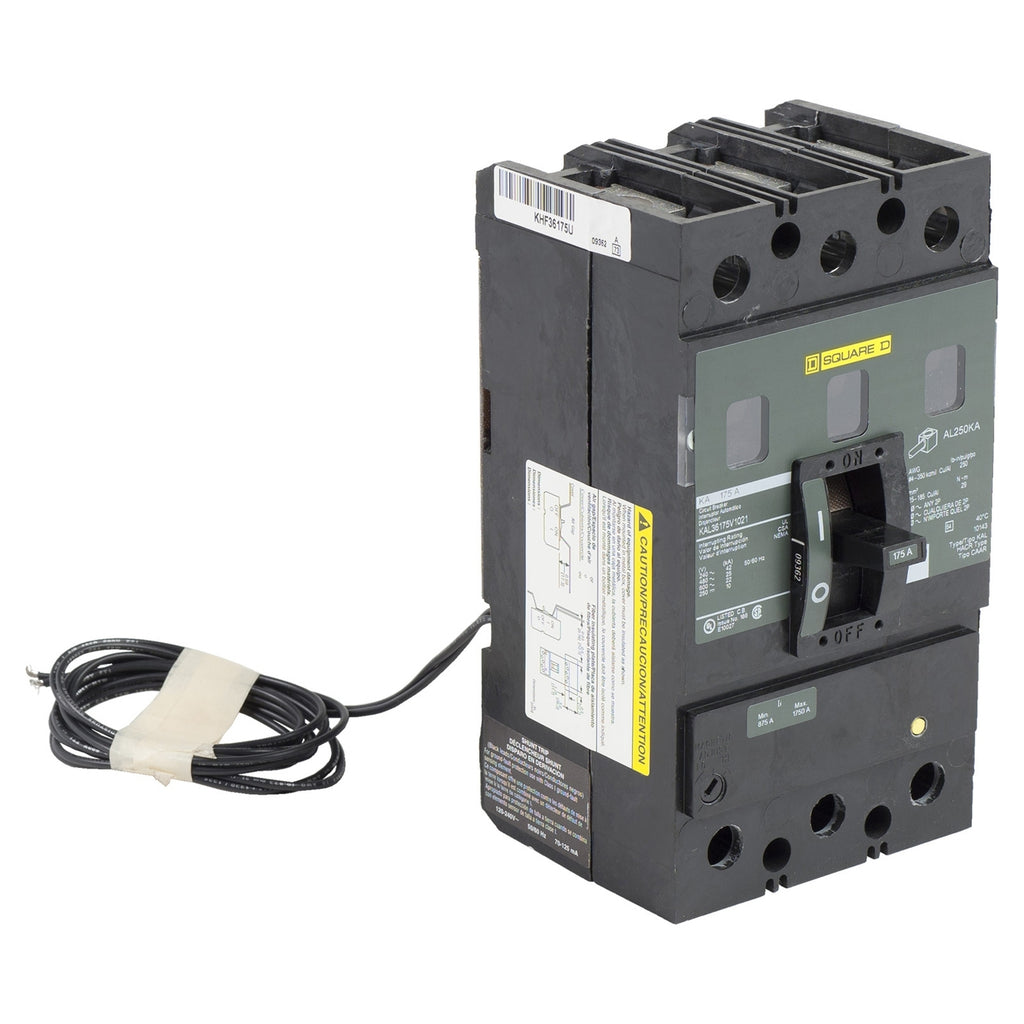

LAL361751021 is a Square D thermal magnetic circuit breaker rated for 175 amps and 600 volts AC with 3 poles.
This circuit breaker provides manual circuit opening and automatic current interruption for overload or short circuit conditions. It features thermal sensing for overload protection and magnetic sensing for short circuit protection in each pole. The breaker supports flexible mounting and termination options, including unit mount and I-Line construction. It has an interrupting rating of 22kA at 600VAC and 10kA at 250VDC, and includes a push-to-trip feature for manual tripping without exposure to live parts.
- Amperage: 175A
- Voltage: 600VAC
- Poles: 3
- Interrupt Rating: 22kA at 600VAC, 10kA at 250VDC
- Trip Unit: Thermal Magnetic
- Mounting Type: Unit Mount and I-Line
- Manufacturer: Square D
- Type: LA Series
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
complete with 120/240 Vac shunt trip
Specifications
- Part Number: LAL361751021
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LAL Series
- Type : LAL
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 30kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 20
