Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description

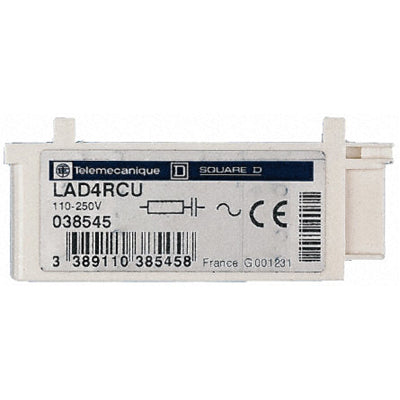

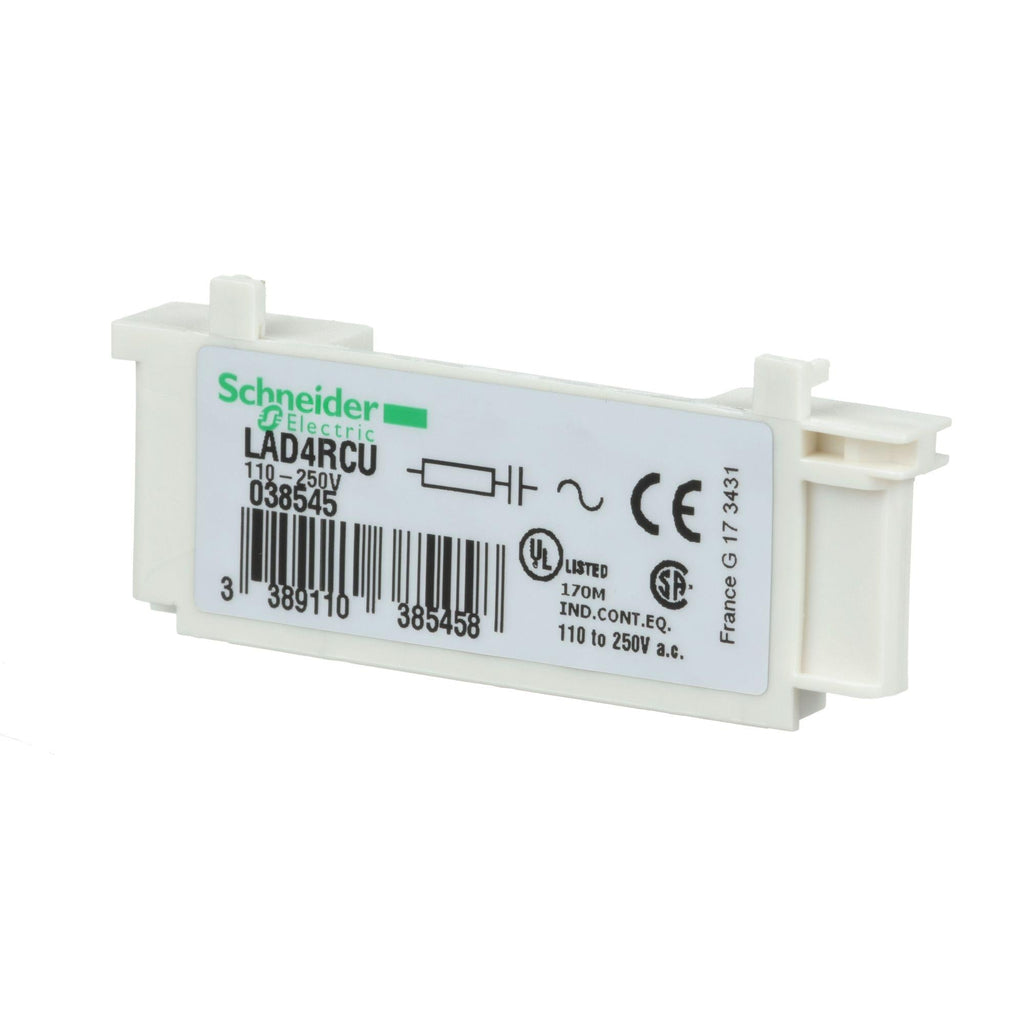

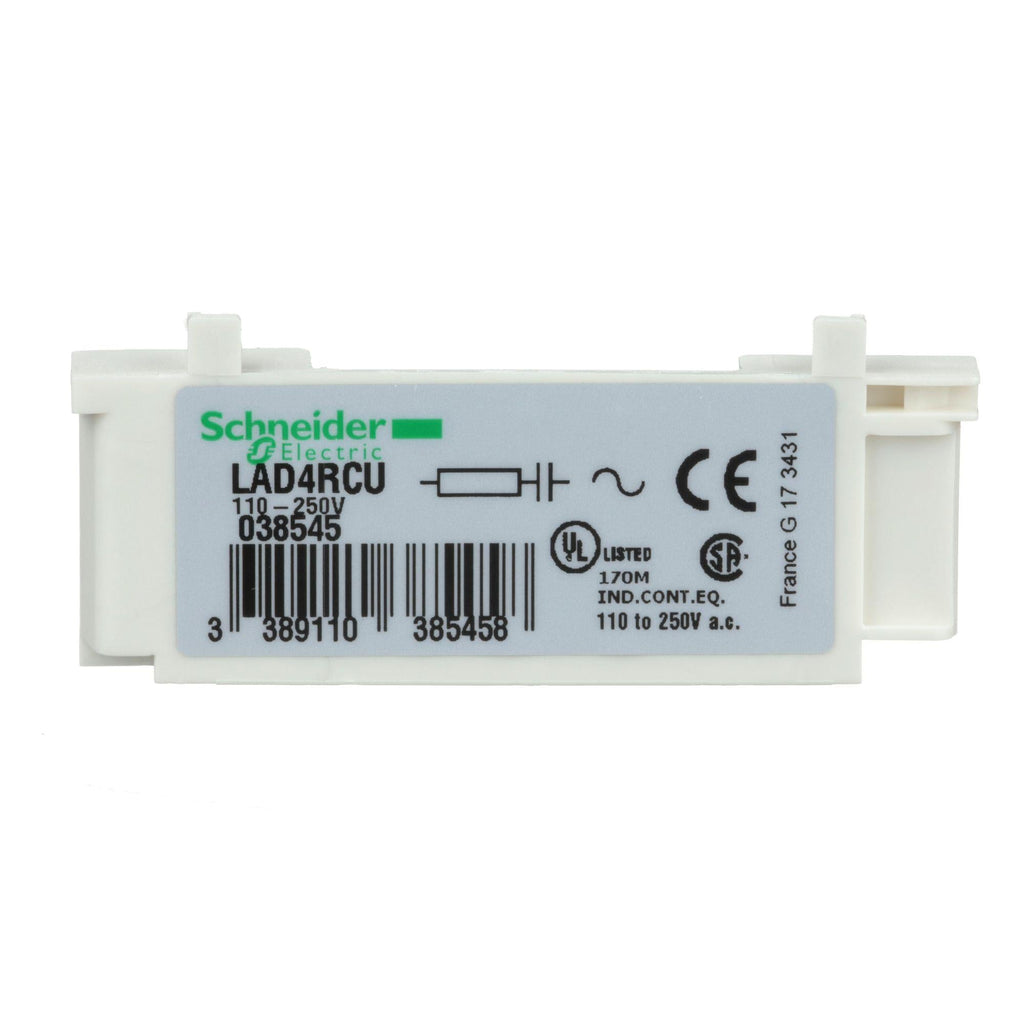

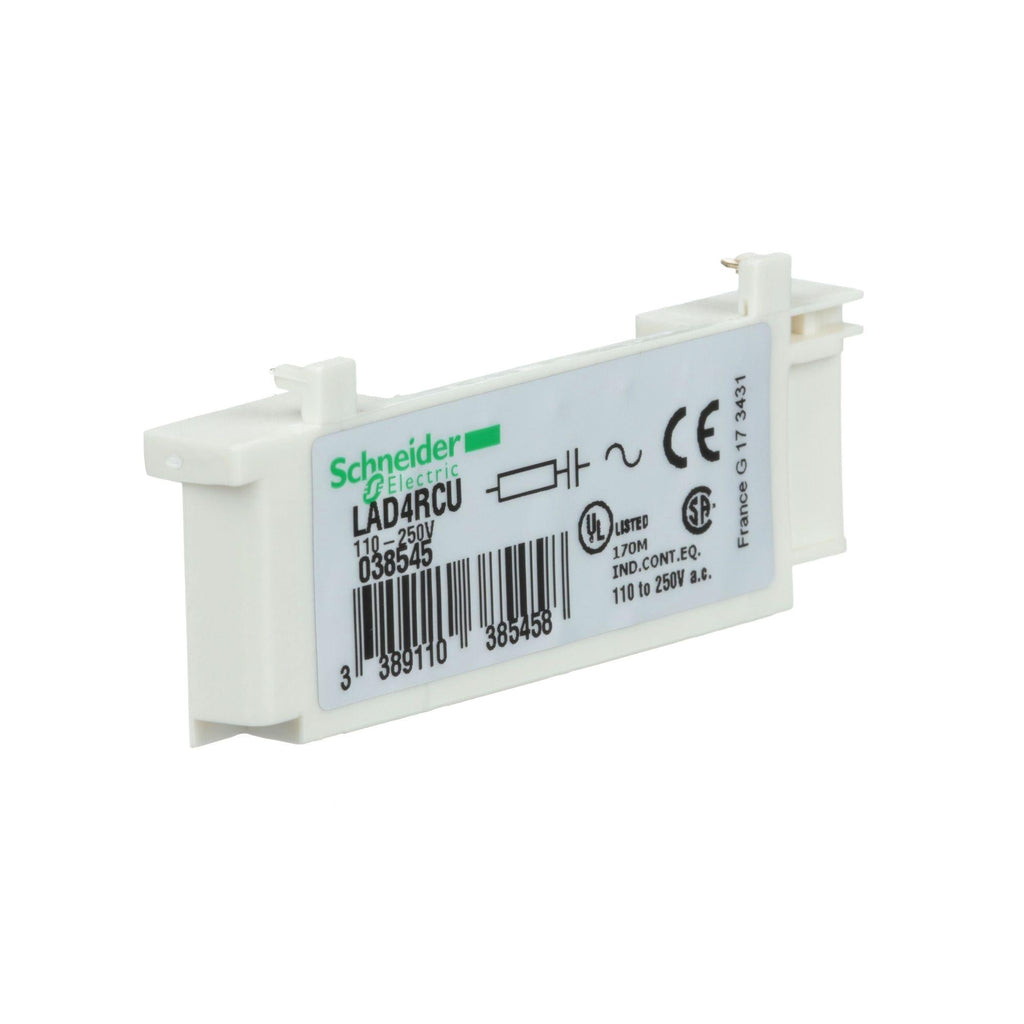

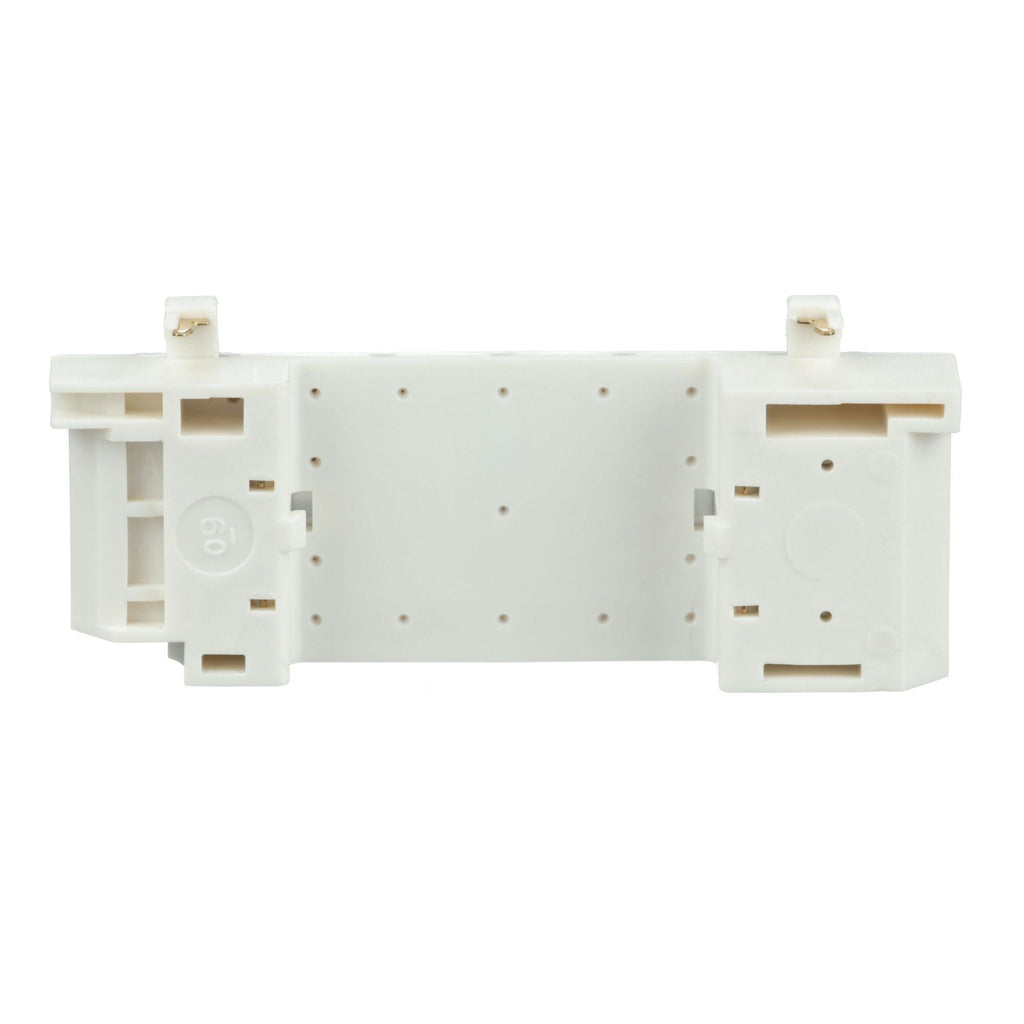

LAD4RCU
LAD4RCU is a Schneider Electric TeSys D RC transient suppressor module designed for motor control applications.
This suppressor module provides RC (resistor-capacitor) circuit protection, limiting transient voltage to a maximum of 3 times the control circuit voltage (3 Uc). It is compatible with a range of TeSys D contactors and CAD control relays, offering reliable protection for circuits sensitive to high-frequency interference. The module features clip-on side mounting, maintaining the original contactor dimensions, and is certified to major international standards.
-
Key Specifications
- Part Number: LAD4RCU
- Manufacturer: Schneider Electric
- Category: Motor Control / Suppressor Module
- Control Circuit Voltage: 110-250V AC, 50/60 Hz
- Maximum Peak Voltage: 3 Uc
- Mounting Type: Clip-on side mount (right side cavity)
- Compatibility: LC1D09-D38 (3P), LC1DT20-DT40 (4P), LC1D098-D258 (4P), CAD32, CAD50
- Suppressor Technology: RC circuit
- Certifications: UL, CSA, IEC 60947-5-1, EN 60947-5-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, GB/T 14048.5
- IP Rating: IP2x (IEC 60529)
- Operating Temperature: -25 to 55°C (-13 to 131°F)
- Storage Temperature: -40 to 80°C (-40 to 176°F)
- Weight: 0.012 kg (0.03 lb)
- Environmental: RoHS/REACh compliant, Green Premium product
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LAD4RCU
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Surge Suppressors
- Family : TeSys D
- Type : LAD4
- Coil Voltage Maximum : 110-250 VAC
Product Data
- UPC : 785901213789
- GTIN : 03389110385458
- Country of Origin : France
- Weight : 0.031
- Certification : IEC 60947-5-1 || EN 60947-5-1 || CSA C22.2 No 60947-5-1 || UL 60947-5-1 || GB/T 14048.5
