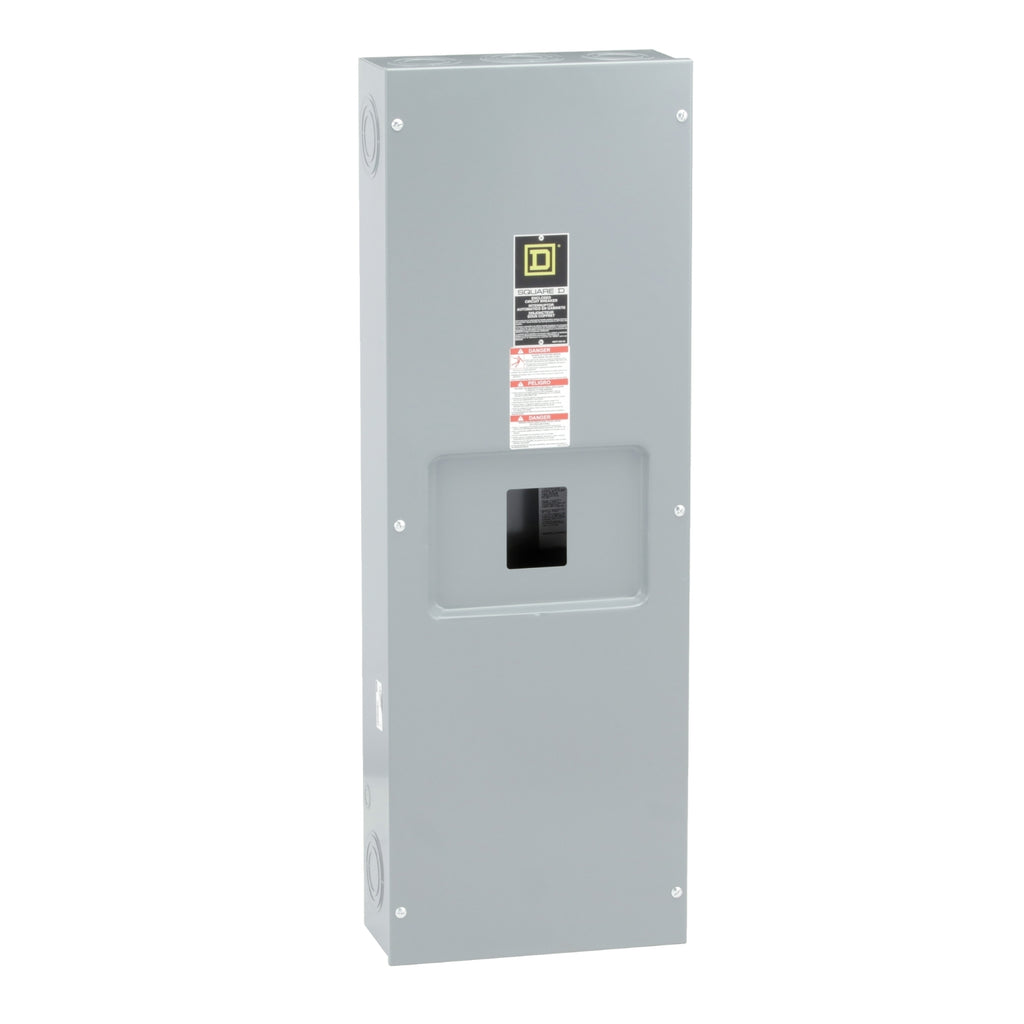

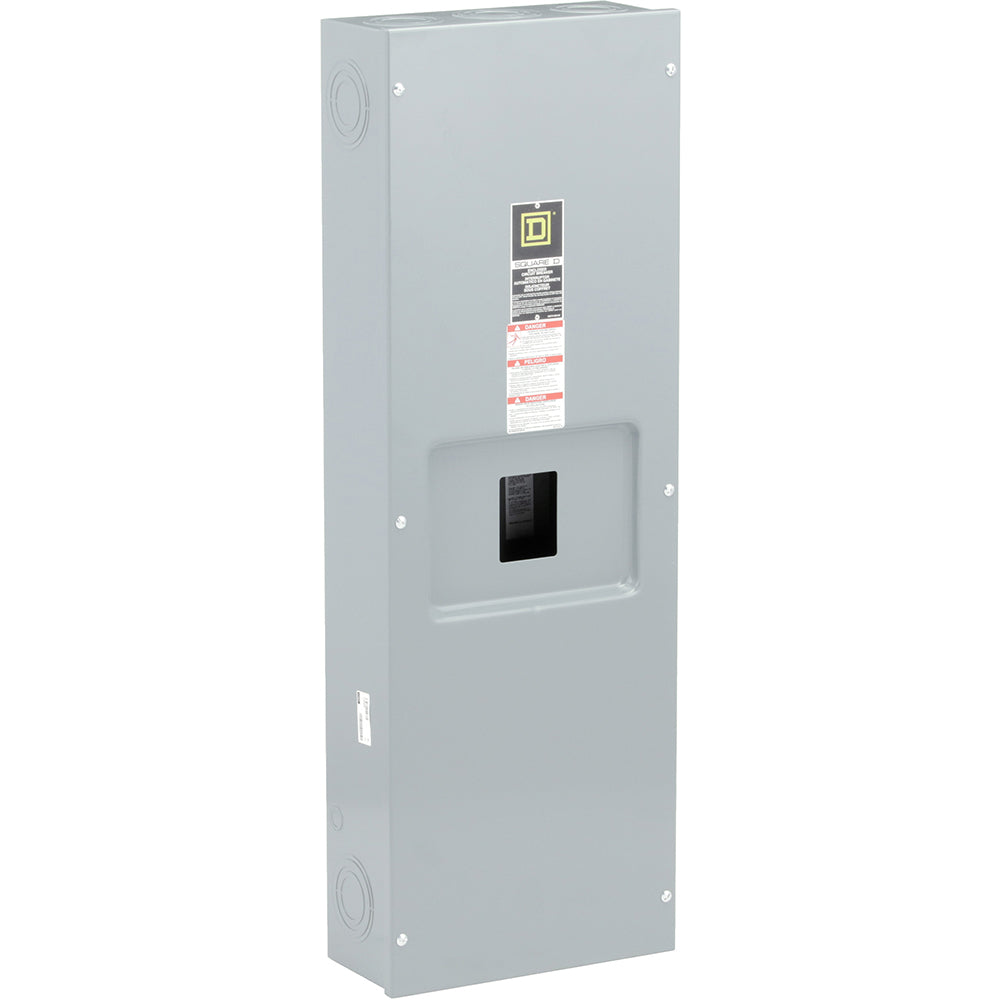

LA400S - Square D 125-400A 600V 2-3 Pole Surface Mount Circuit Breaker Enclosure NEMA 1

LA400S

LA400S is a Square D circuit breaker enclosure designed for 125 to 400 Amp, 600 Volt systems with 2 to 3 poles and surface mounting.This enclosure accommodates LAL and LHL frame thermal magnetic molded case circuit breakers. It features a NEMA 1 steel construction, measuring 15.28 inches wide, 44.48 inches high, and 6.5 inches deep. Certified to UL 489, CSA, and IEC standards, it provides reliable protection for overloads and short circuits in industrial and commercial applications.

• Amperage: 125-400A
• Voltage: 600V
• Poles: 2-3
• Mounting Type: Surface
• Frame Type: LAL, LHL
• Enclosure Material: Steel
• NEMA Rating: 1
• Dimensions: 15.28" W x 44.48" H x 6.5" D
• Certifications: UL 489, CSA, IEC
• Interrupt Rating: Up to 25 kAIR at 600 Vac
• Temperature Rating: 32 to 140 °F
• Color: Gray

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LA400S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : L Frame
• Type : LA
• Voltage : 600
• Amperage : 400
• Temp Rating : -13–158 °F (-25–70 °C)
• Nema Rating : 1
• Compatible Frames : LAL,LHL

Product Data

• UPC : 785901508014
• GTIN : 00785901507208
• Country of Origin : Mexico
• Dimensions : 44.48 in (1129.79 mm) x 15.28 in (388.11 mm) x 6.50 in (165.10 mm) (Height x Width x Depth)
• Weight : 53.99
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : NEMA 1
