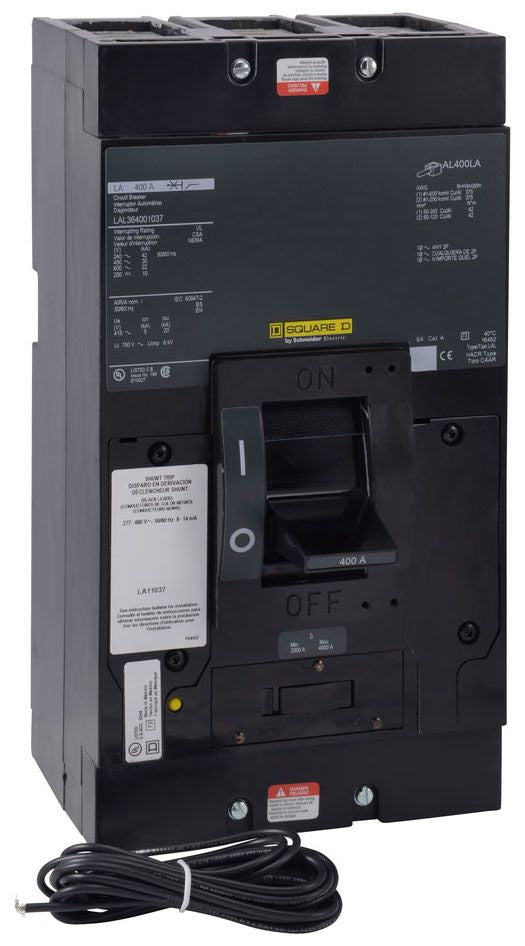

LA36400MT - Square D 400A 600V 3 Pole I-Line Molded Case Circuit Breaker Thermal Magnetic

LA36400MT

LA36400MT is a Square D 3 pole, 400 amp, 600 volt I-Line style molded case circuit breaker with thermal magnetic trip unit technology.This circuit breaker features a 30kA interrupting rating at 480V, plug-on I-Line mounting, and LI long-time and instantaneous trip functions. It is designed for use in power distribution applications with a frame type L and supports 3-phase ABC configuration. The breaker is UL and CSA approved, suitable for 600VAC and 250VDC, and includes line and load lug connections.

Key Specifications
• Amperage: 400A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: I-Line plug-on
• Interrupt Rating: 30kA at 480V, 42kA at 240VAC
• Frame Type: L
• Trip Unit: Thermal Magnetic with LI long-time and instantaneous trip
• Phase: 3 (ABC)
• Approvals: UL, CSA
• Terminal Connection: Line and load lugs
• Dimensions: 11" H x 6" W x 5.84" D
• Mercury and PVC free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LA36400MT
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 078590133930
• GTIN : 00785901339304
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 18.34
