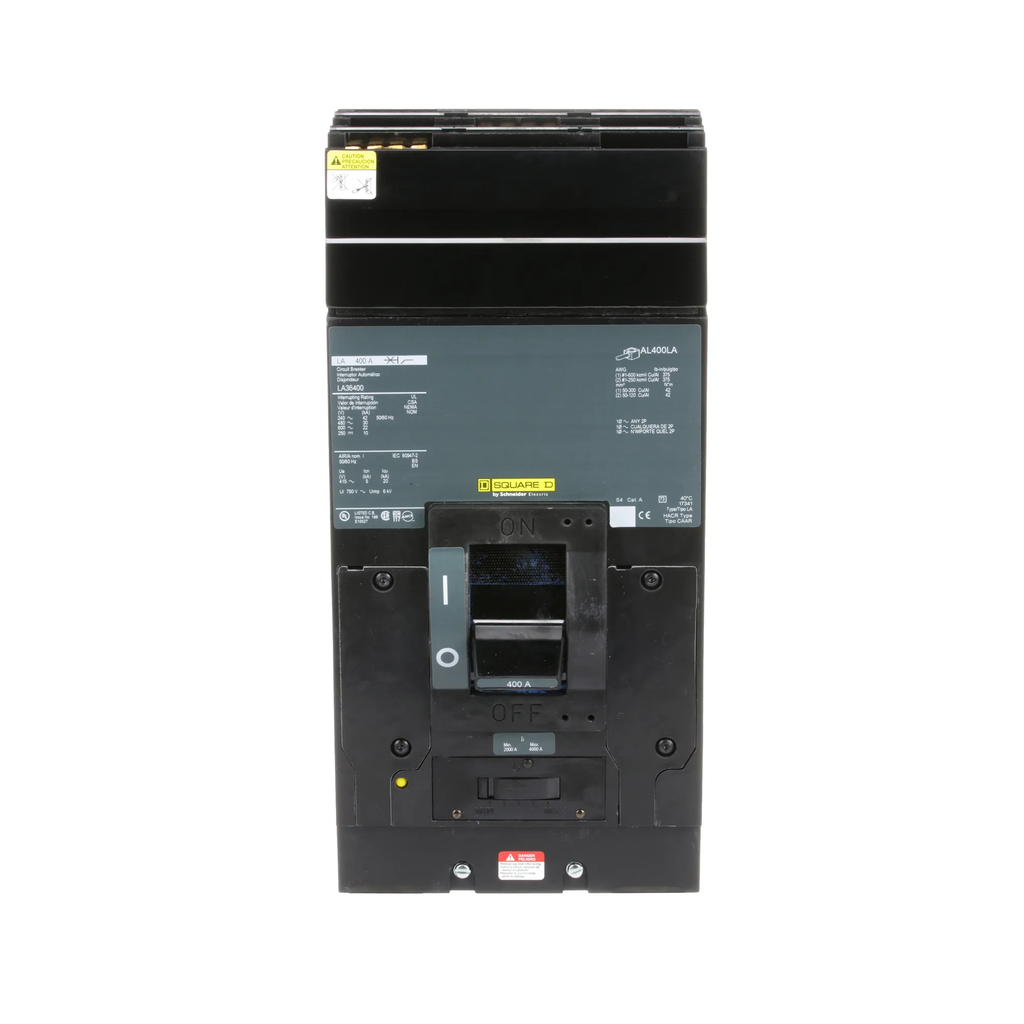

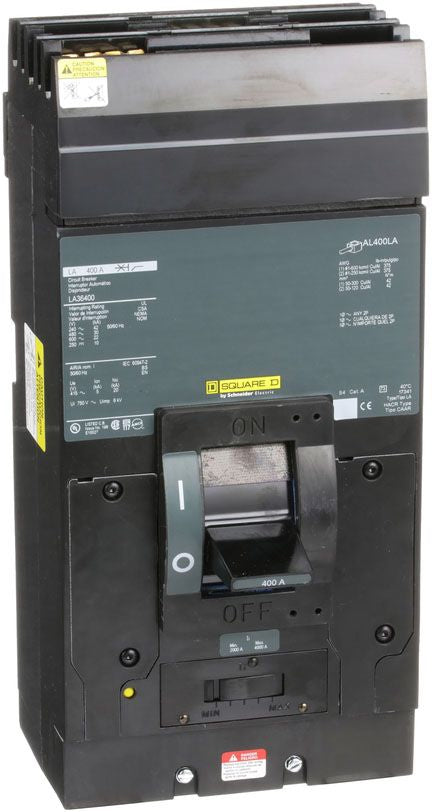

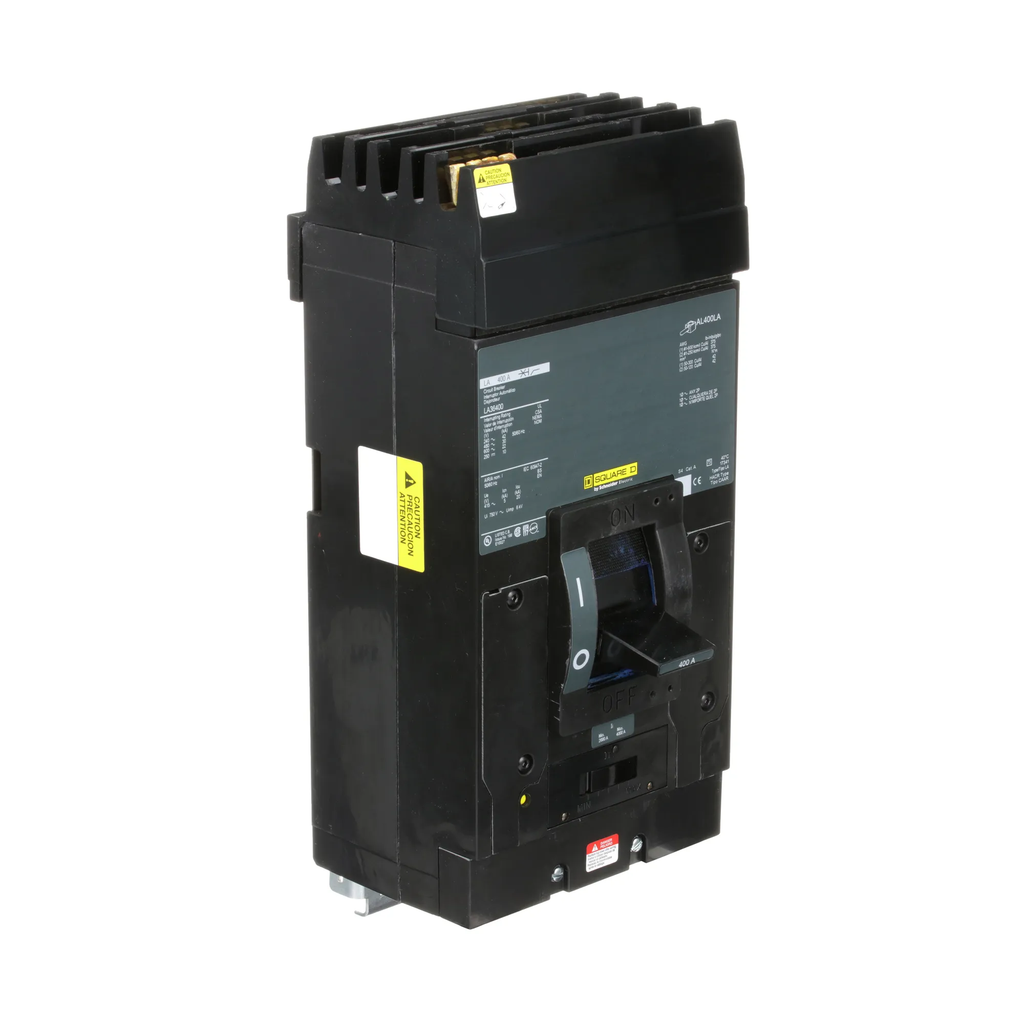

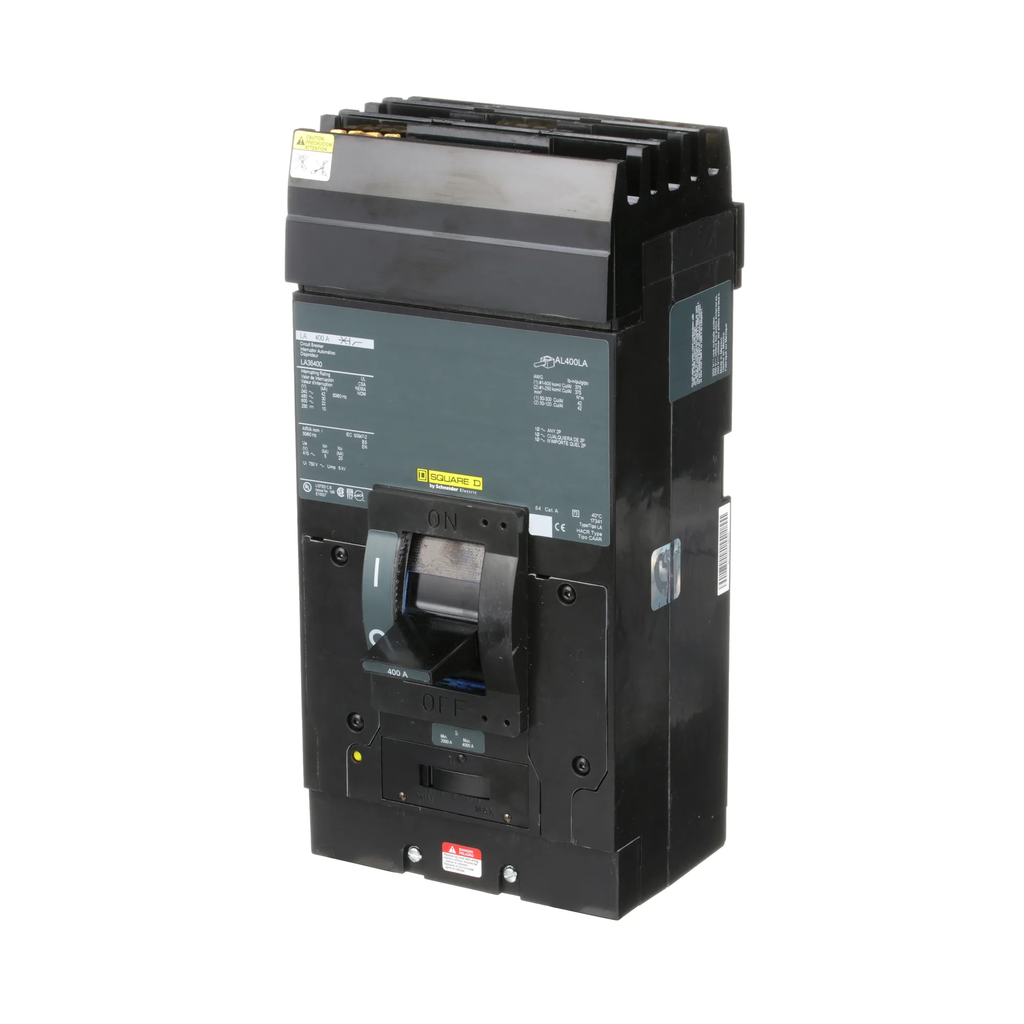

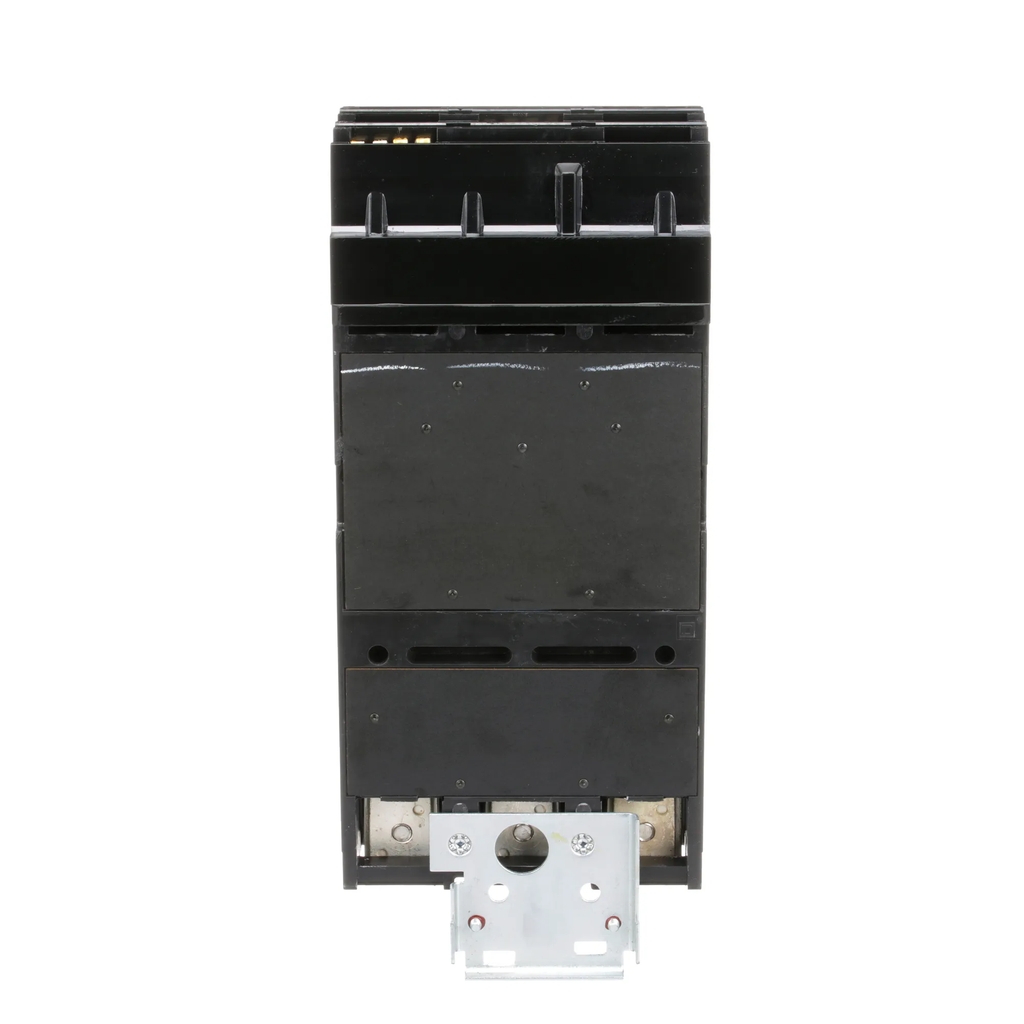

LA36400 - Square D 400A 600V 3-Pole I-Line Molded Case Circuit Breaker, Thermal Magnetic, 30kA@480V Interrupt Rating

LA36400

LA36400 is a Square D 3-pole molded case circuit breaker rated for 400 amps and 600 volts with thermal magnetic trip technology.This I-Line style plug-in breaker features long-time and instantaneous trip functions (LI), a 30kA interrupting rating at 480V, and is designed for use in commercial and industrial power distribution. It has a J-frame type, load side lug connections, and meets UL and CSA certifications.

• Amperage: 400A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 30kA at 480V
• Frame Type: J-Frame (LA series)
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Connection: Load side lug
• Phase: 3
• Certifications: UL, CSA, RoHS, HACR
• Dimensions: 11" H x 6" W x 5.84" D
• Weight: Approx. 19 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LA36400
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : Plug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 400A/LA
• MCM Size : Min. Wire Size 1/0 AWG Max. Wire Size 250 MCM, 600 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901426325
• GTIN : 00785901426325
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 18.001 lb
• Panel Type : I Line Panelboards
• Standards : CSA, UL Listed
• Certification : CSA, UL Listed
