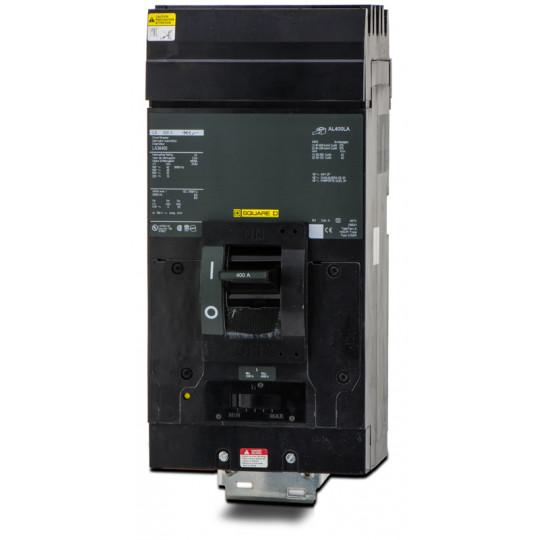

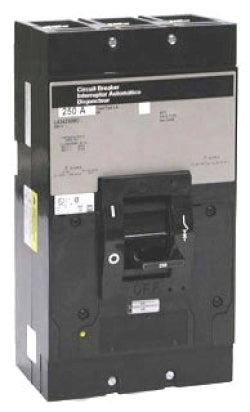

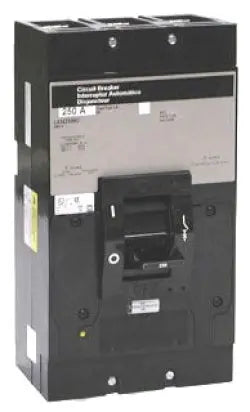

LA36175 - Square D 175 Amp 600VAC 3 Pole Thermal Magnetic Circuit Breaker I-Line Plug-On

LA36175

LA36175 is a 175 Amp, 3 Pole thermal magnetic molded case circuit breaker from Square D designed for 600VAC and 250VDC applications.LA36175 features an I-Line style plug-in connection with a 400A/LA frame, providing reliable overload and short circuit protection with LI long-time and instantaneous trip functions. It has an interrupting rating of 42kAIC at 120/240VAC and is UL and CSA certified for industrial use.

Key Specifications
• Amperage: 175 Amps
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Interrupting Rating: 42kAIC at 120/240VAC
• Frame Type: LA (400A frame)
• Mounting Type: I-Line Plug-On
• Trip Unit: Thermal Magnetic with LI long-time and instantaneous trip
• Terminal Connection: Lug
• Approvals: UL, CSA
• Max Wire Size: 600 MCM
• Min Wire Size: AWG 1/0
• Dimensions (LxWxH): 5.84" x 6" x 11"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LA36175
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LA
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 30kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901339281
• GTIN : 00785901339281
• Country of Origin : United States
• Dimensions : Height 11 in (279.40 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 15
• Certification : CSA-UL LISTED
