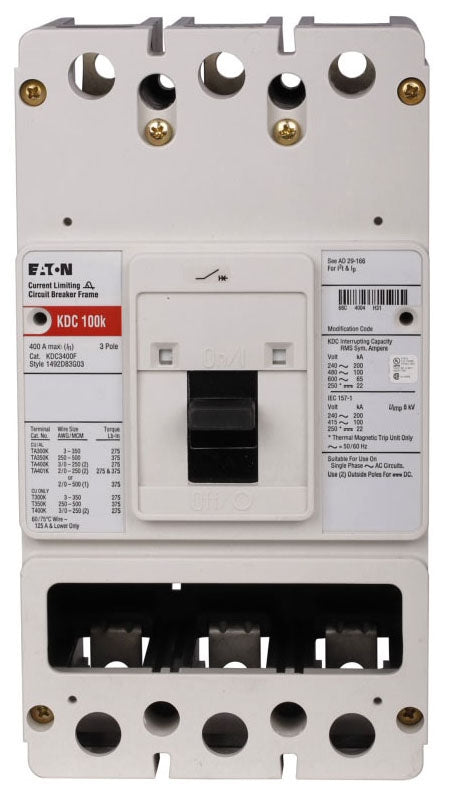

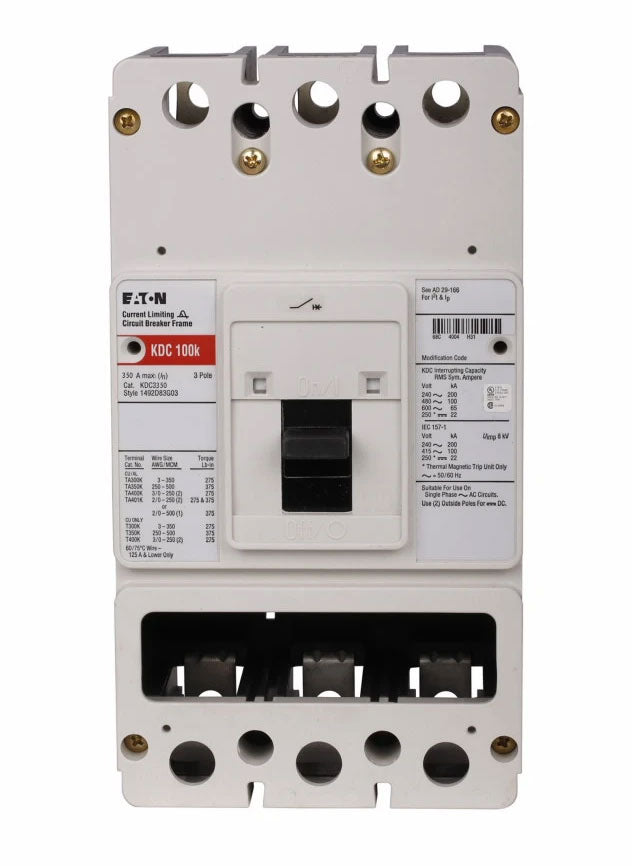

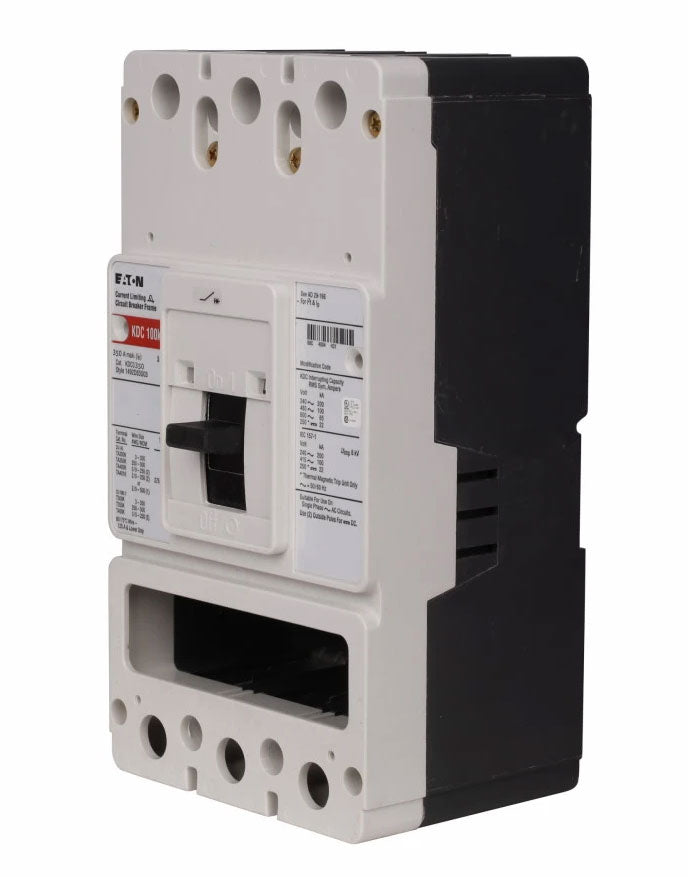

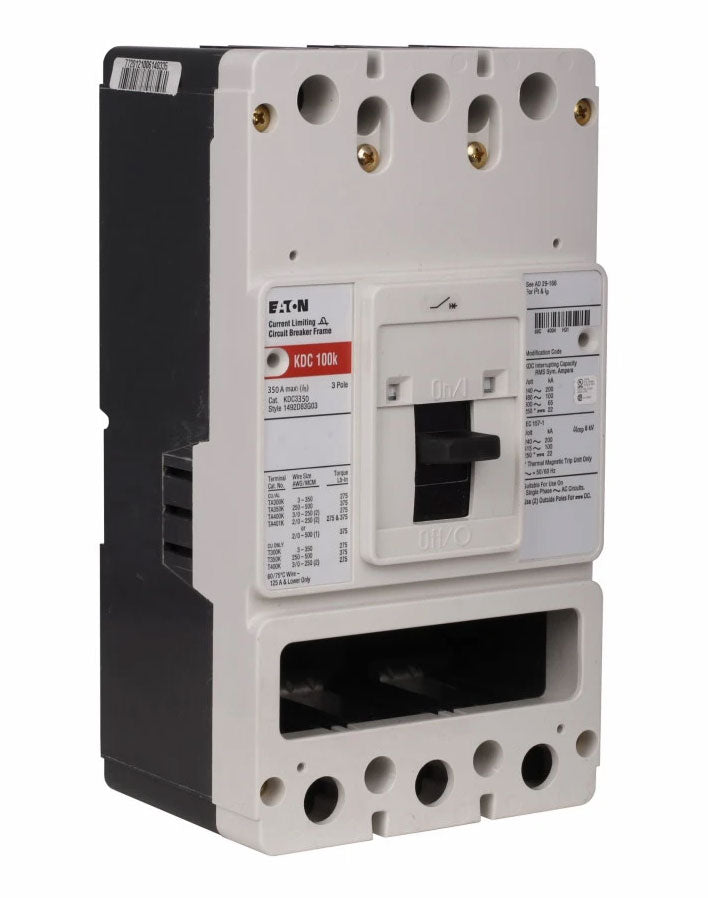

KDC3350 - Cutler Hammer 350A 600V 3-Pole Molded Case Circuit Breaker K Frame Series C

KDC3350

KDC3350 is a Cutler Hammer molded case circuit breaker designed for industrial and commercial power distribution applications.This 3-pole breaker features a 350 ampere rating at 40°C, 600 volts AC, and a K frame Series C design. It includes a thermal magnetic interchangeable trip unit with adjustable long-time and instantaneous trip settings. The breaker supports feed-thru connection and is suitable for reverse fed applications. Interrupting ratings are 200 kA at 240 VAC, 100 kA at 480 VAC, and 50 kA at 600 VAC, ensuring high fault current protection. It comes with line and load side lug terminals and meets industry standards for safety and performance.

• Manufacturer: Cutler Hammer (Eaton)
• Part Number: KDC3350
• Amperage: 350 A at 40°C
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: K Frame, Series C
• Trip Unit: Thermal Magnetic, Interchangeable LI (Long-Time and Instantaneous)
• Interrupting Capacity: 200 kA @ 240 VAC, 100 kA @ 480 VAC, 50 kA @ 600 VAC
• Connection Type: Feed-Thru
• Mounting: Bolt-On
• Certifications: Meets industry standards for molded case circuit breakers
• Dimensions: Approx. 5.5" x 5.5" x 4.1"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KDC3350
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : KDC
• Voltage : 600
• Amperage : 350
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679026366
• GTIN : 00786679026366
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed
