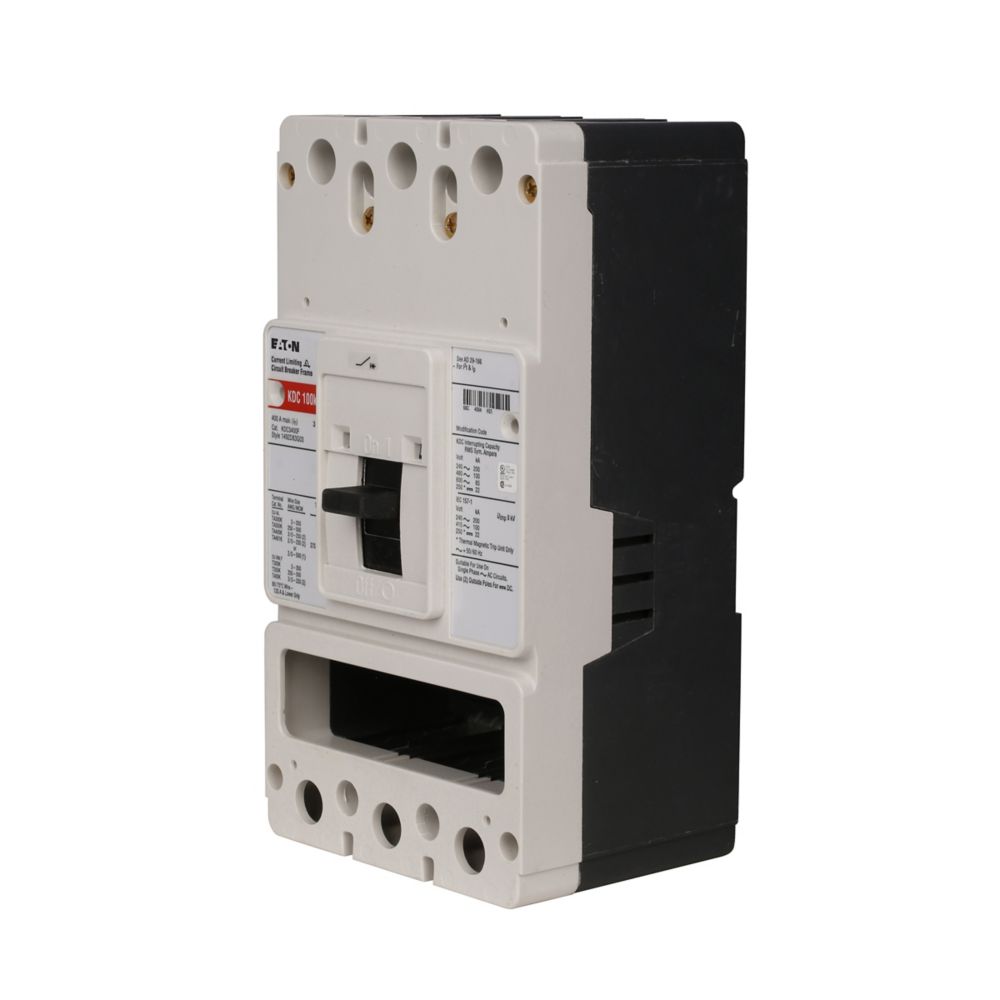

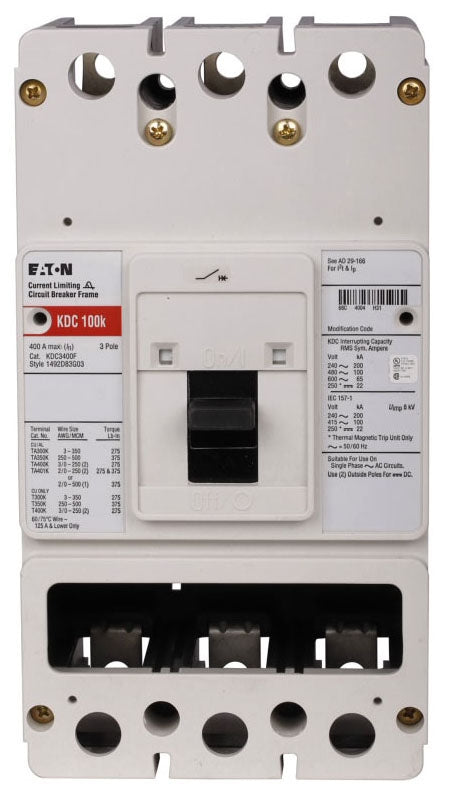

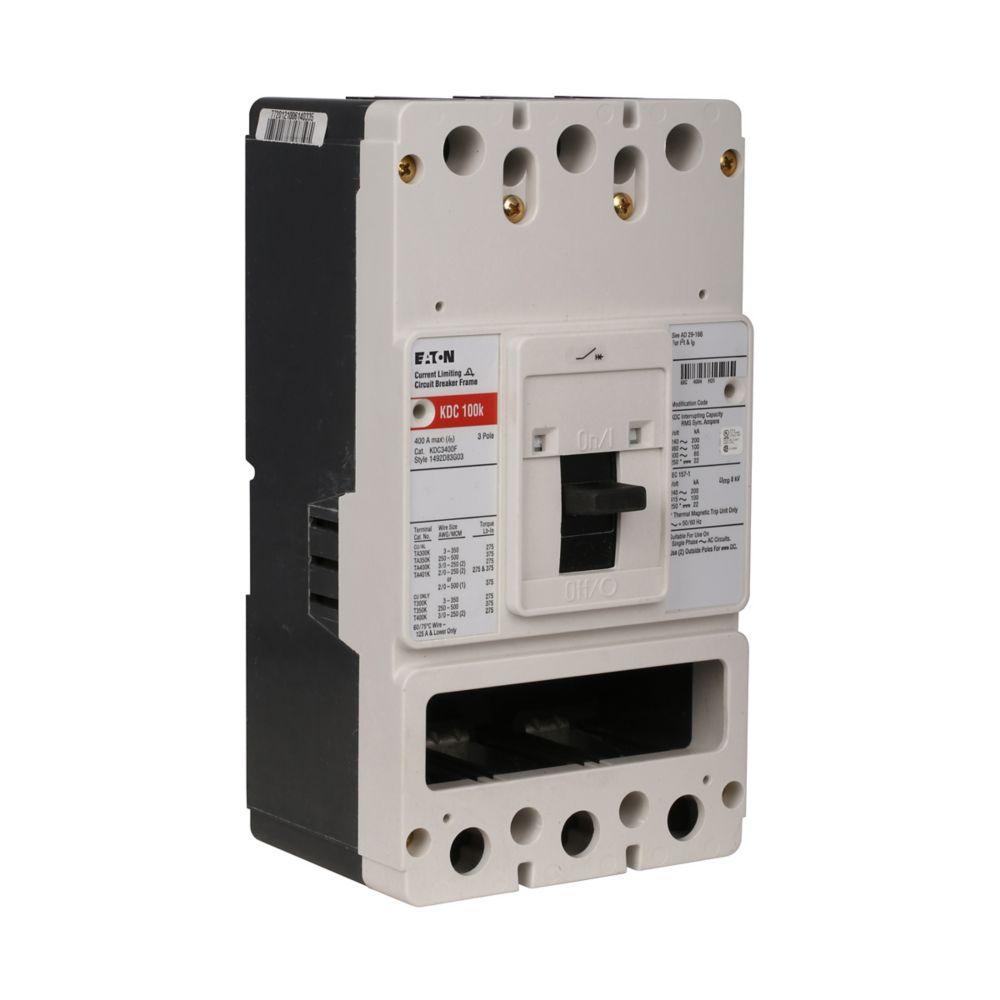

KDC3250 - Eaton Cutler-Hammer Series C K-Frame 3 Pole 250A 600V Molded Case Circuit Breaker, Fixed Thermal Magnetic Trip, 200kAIC

KDC3250

KDC3250 is a premium Eaton Cutler-Hammer Series C K-frame molded case circuit breaker designed for robust power distribution applications.

This 3-pole, 250A breaker features a fixed thermal magnetic trip unit, 600V AC/250V DC voltage rating, and a high interrupting capacity of 200kA at 240V AC or 100kA at 480V AC. It is UL listed and engineered for reliable protection in commercial and industrial environments.

Key Specifications
• Part Number: KDC3250
• Manufacturer: Eaton/Cutler-Hammer
• Series/Frame: Series C, K-frame (KDC)
• Amperage: 250A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Fixed
• Trip Unit: Fixed thermal, fixed magnetic
• Interrupt Rating: 200kAIC at 240V AC, 100kAIC at 480V AC
• Certifications: UL Listed
• Frequency: 50/60 Hz
• Construction: Aluminum, line and load terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KDC3250
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : KDC
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous Trip
• Frame Size : K Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679026373
• GTIN : 00786679026373
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed
