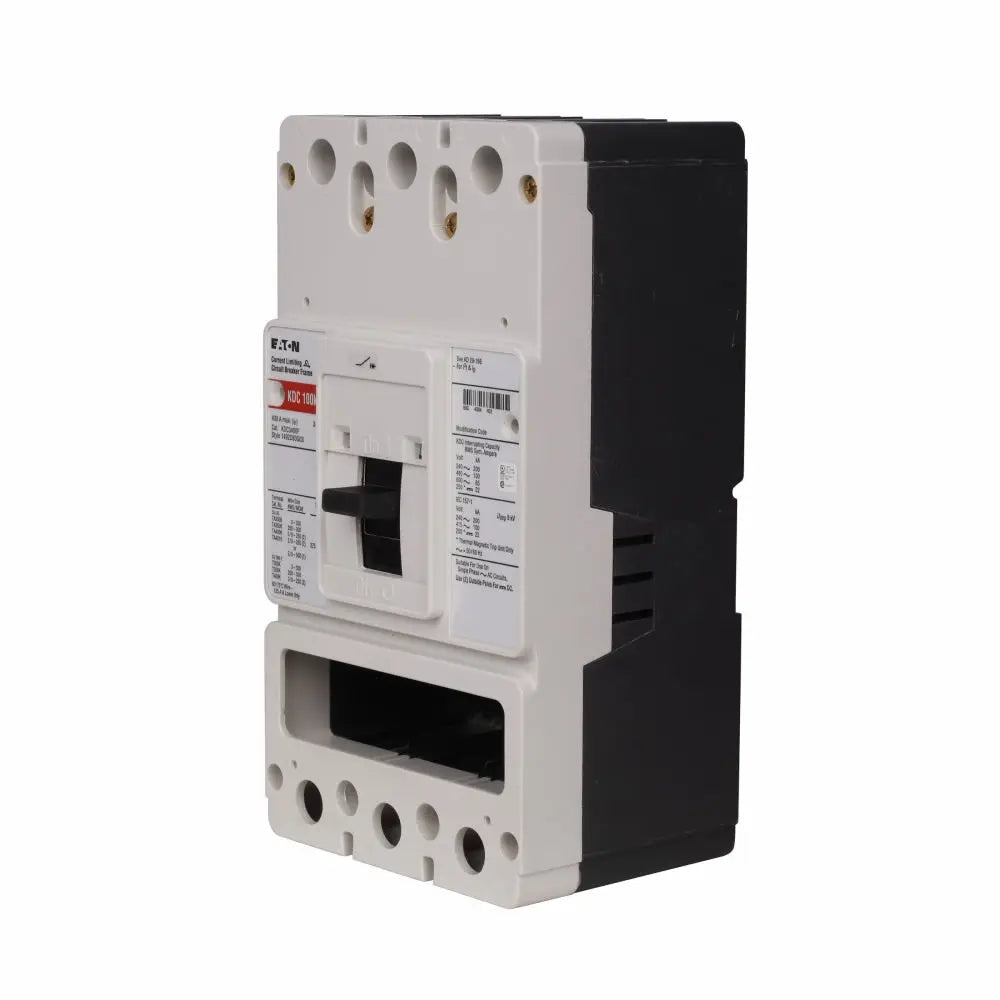

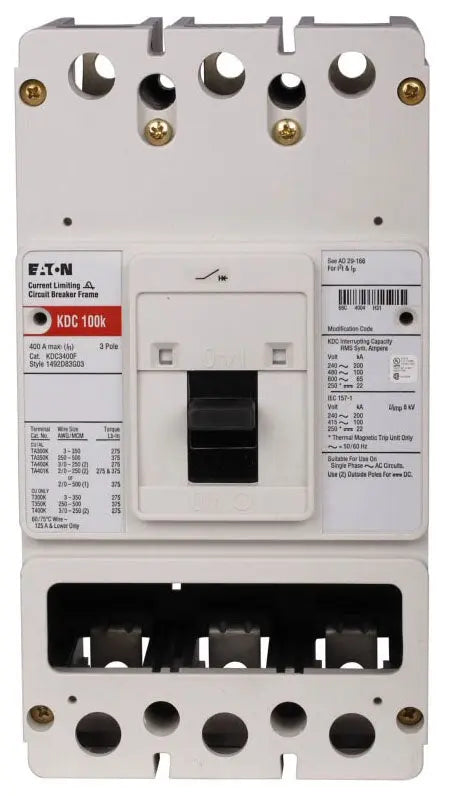

KDC3225W - Eaton 225A 600V 3-Pole Molded Case Circuit Breaker K-Frame 100kAIC at 480V

KDC3225W

KDC3225W is a three-pole, 225A, 600V molded case circuit breaker designed for reliable electrical protection in commercial and industrial applications. This Eaton Series C K-frame breaker features a fixed thermal and fixed magnetic trip unit for precise overload and short-circuit protection. The KDC3225W is built to meet demanding electrical standards, offering a robust design for safe and efficient circuit interruption. It is suitable for use in panelboards and switchgear where high interrupting capacity and dependable performance are required.

• 225A amperage rating
• 600V AC voltage rating
• Three-pole configuration
• K-frame size
• Series C
• Fixed thermal and fixed magnetic trip
• 100kAIC interrupt rating at 480V
• UL Listed
• 50 to 60 Hz frequency rating
• Without terminals
• Feed-thru connection type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: KDC3225W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : KDC
• Voltage : 600
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679396087
• GTIN : 00786679396087
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed
