Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
KDB3400

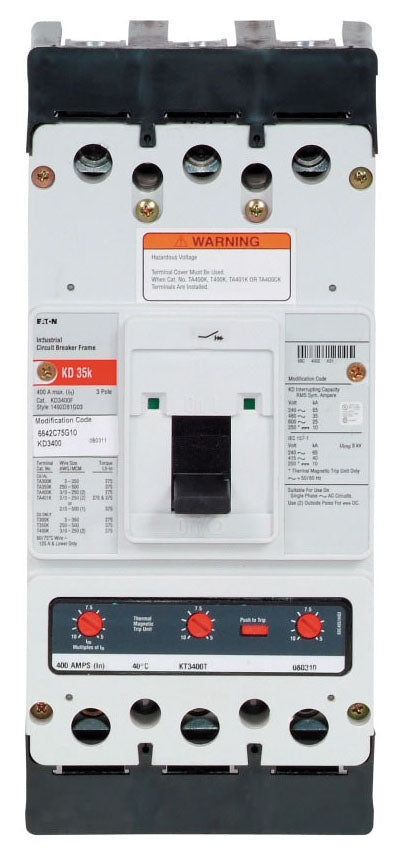

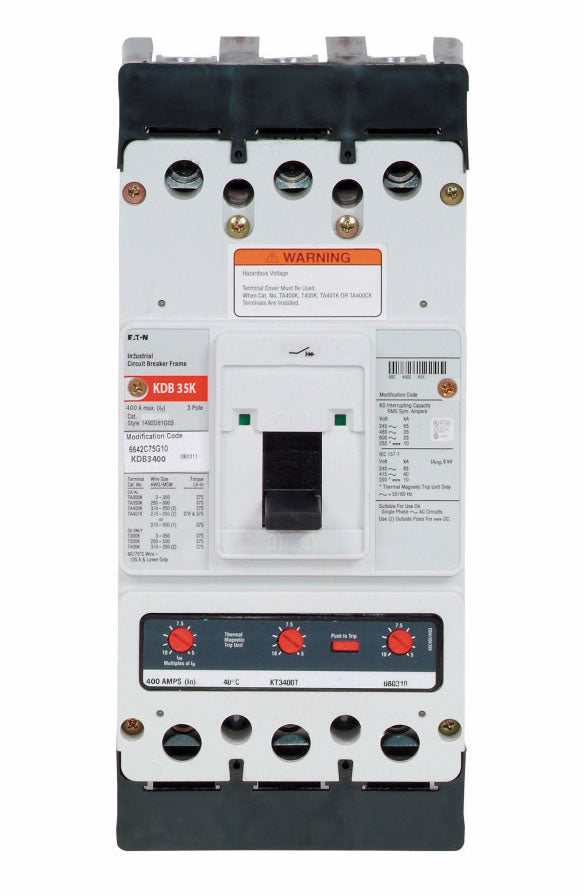

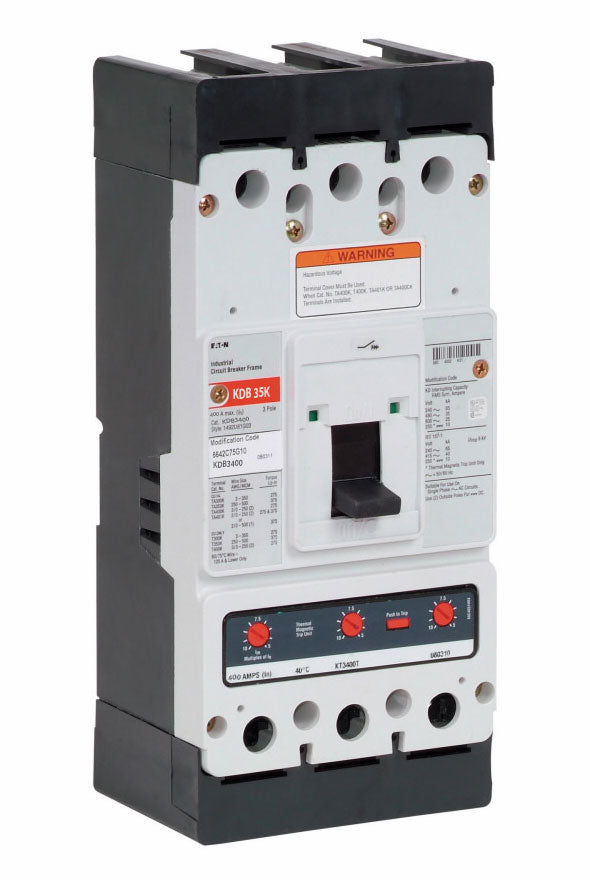

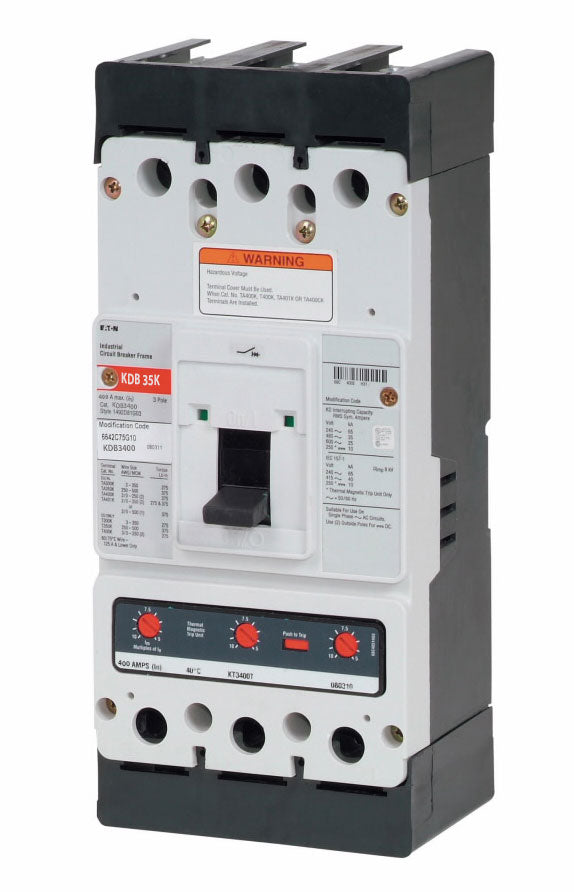

KDB3400 is a Westinghouse molded case circuit breaker designed for 3-pole, 400 ampere, 600 volt applications.This Eaton Series C KDB frame circuit breaker features fixed thermal and magnetic trip units, providing reliable protection with a 65kA interrupt rating at 240 VAC and 35kA at 480 VAC. It supports line and load side lug terminals and is suitable for bolt-on mounting. The breaker is UL listed and built for industrial and commercial power distribution systems.
- Manufacturer: Westinghouse (Eaton / Cutler-Hammer)
- Amperage: 400A
- Voltage: 600 VAC
- Poles: 3
- Frame Type: KDB
- Trip Unit: Fixed Thermal Magnetic
- Interrupt Rating: 65kA @ 240 VAC, 35kA @ 480 VAC
- Mounting Type: Bolt-On
- UL Listed
- Line and Load Side Lug Terminals
- Weight: Approx. 11.5 lbs
Specifications
- Part Number: KDB3400
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : KDB
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679349397
- GTIN : 00786679349397
- Country of Origin : Dominican Republic
- Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 11.5
- Certification : UL Listed
