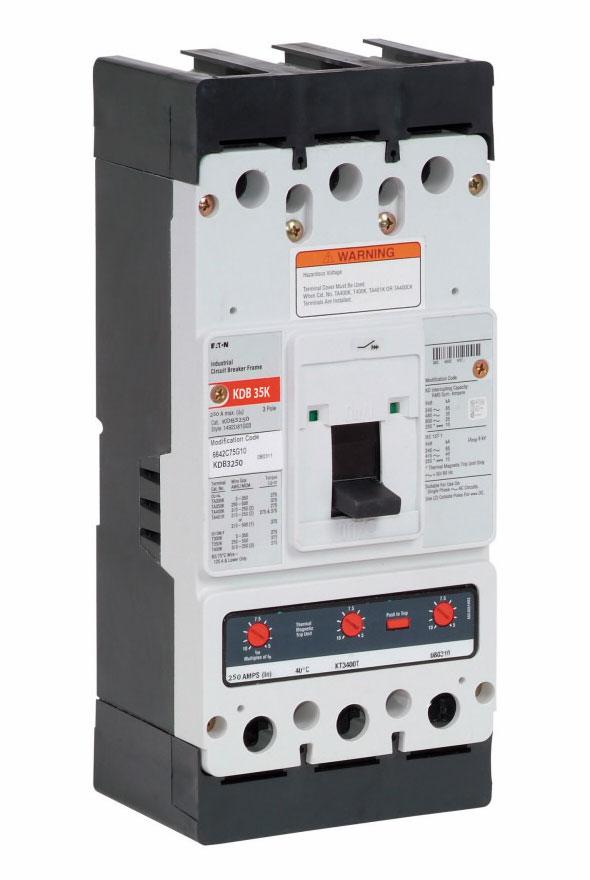

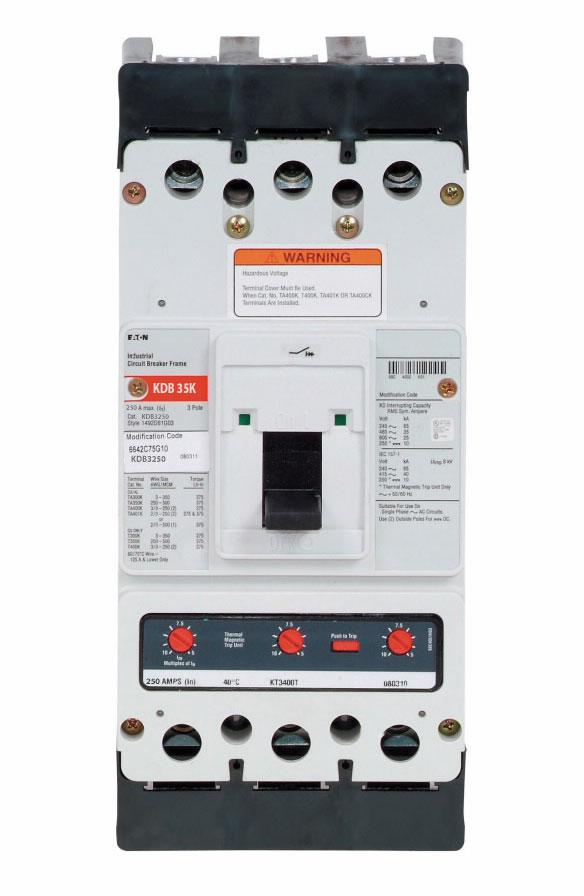

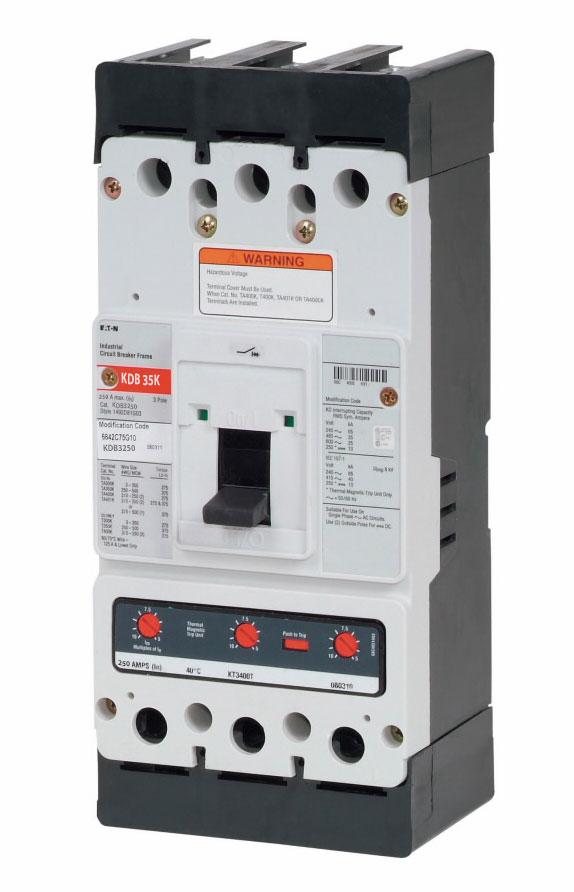

KDB3250W - Eaton 250A 600VAC 3-Pole Series C Molded Case Circuit Breaker Thermal Magnetic Trip

KDB3250W

KDB3250W is an Eaton Series C molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.This 3-pole breaker features a 250 ampere rating and supports voltages up to 600 VAC and 250 VDC. It has a fixed thermal and fixed magnetic trip unit with a 35 kA interrupt rating at 480 VAC, making it suitable for high fault current environments. The breaker is part of Eaton's K-frame Series C line and comes without terminals, designed for fixed mounting.

Key Specifications
• Amperage: 250 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 35 kA at 480 VAC, 65 kA at 240 VAC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Series / Frame: Series C, K-frame
• Mounting Type: Fixed
• Terminals: Without terminals
• Non-interchangeable trip unit
• Certifications: Eaton standard industrial certifications
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: KDB3250W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : KDB
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 786679612118
• GTIN : 00786679612118
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 10.1 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed
