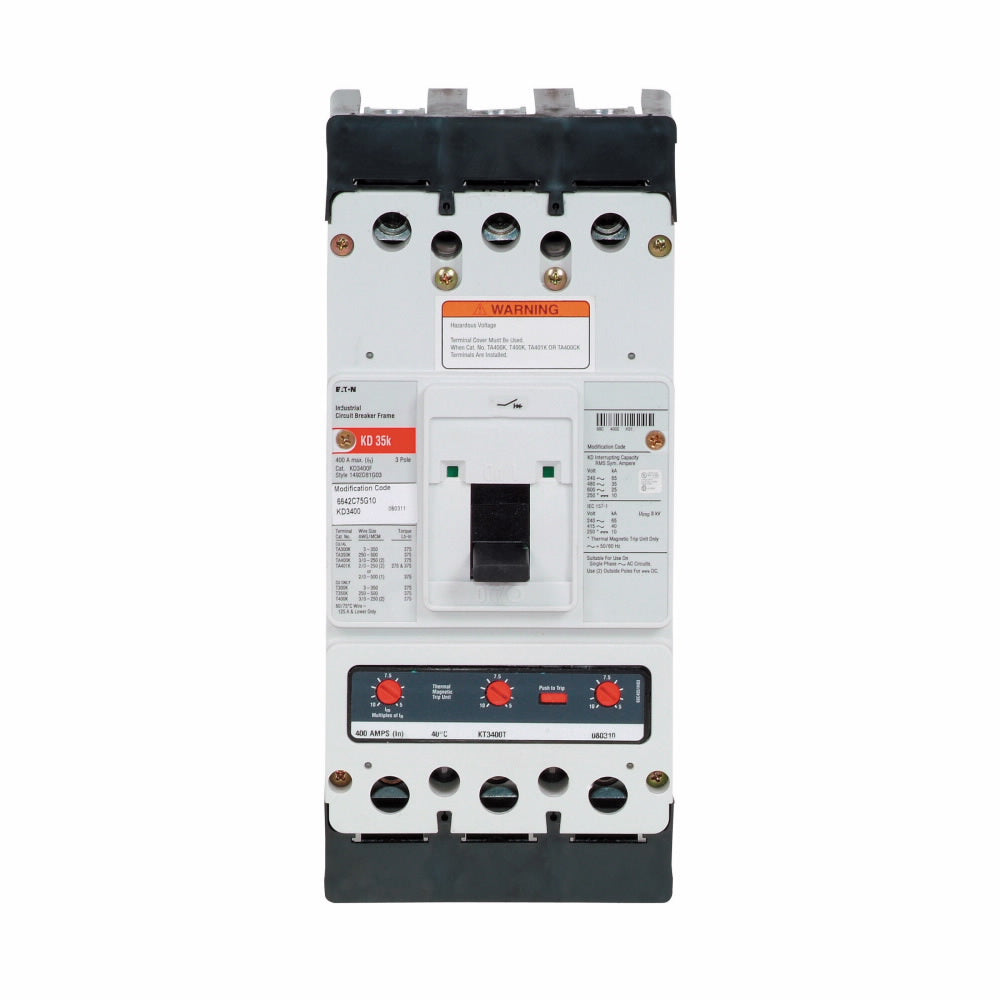

KDB3200W - Eaton 200 Amp 600 VAC 3-Pole K-Frame Molded Case Circuit Breaker

KDB3200W

KDB3200W is a 200 Amp, 600 VAC, 3-pole molded case circuit breaker from Eaton's K-frame series designed for reliable circuit protection.This Eaton KDB3200W circuit breaker features a fixed thermal and fixed magnetic trip type, suitable for both AC and DC applications with voltage ratings of 600 VAC and 250 VDC. It offers interrupt ratings of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC, ensuring high performance and safety. The breaker is part of Eaton's Series C and comes without terminals, operating at 50/60 Hz frequency.

Key Specifications
• Amperage: 200 Amp
• Voltage Rating: 600 VAC, 250 VDC
• Poles: 3 (Three-pole)
• Frame Type: K-frame
• Trip Type: Fixed thermal, fixed magnetic
• Interrupt Rating: 65 kAIC at 240 VAC, 35 kAIC at 480 VAC
• Frequency: 50/60 Hz
• Series: Series C
• Terminals: Without terminals
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: KDB3200W
• Manufacturer : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : KDB
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679612095
• GTIN : 00786679612095
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed
